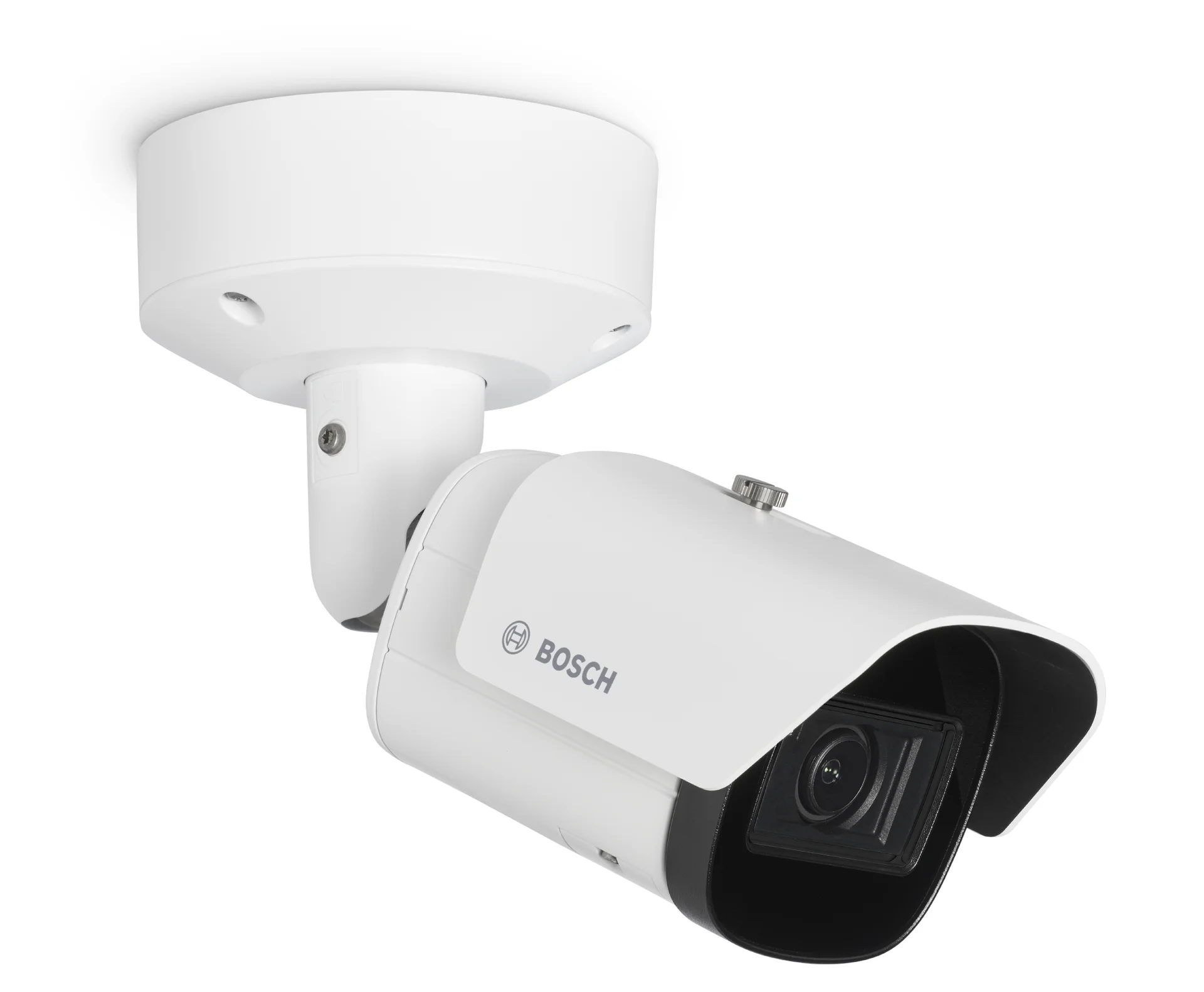

DINION 5100i IR
The DINION 5100i IR family delivers reliable outdoor visibility and intelligent detection for demanding environments. Featuring starlight imaging, built-in infrared, and IVA Pro, these cameras provides clear insights and confident tracking, day or night.
Up to 4K ultra HD for highly detailed image
Starlight camera technology with excellent low-light performance
IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested
High Dynamic Range to see every detail in both bright and dark areas of the scene
Built-in intelligent IR illuminator with up to 60 m (197 ft) viewing distance
Product Overview
Detect critical events with reliable accuracy
Built-in IVA Pro Buildings uses deep learning to track persons and vehicles while filtering out false triggers from rain or moving trees.
See clearly in challenging lighting conditions
High Dynamic Range and starlight technology reveal essential details in both bright sunlight and near-zero light environments.
Maintain complete visibility in total darkness
An integrated intelligent infrared illuminator automatically adjusts to the scene, ensuring clear detection up to 60 meters IR illumination up to 60 m (197 ft) away.
Ensure reliable operation in harsh environments
A robust IP66/67 and IK10 rated housing protects the device against extreme temperatures, severe weather, and physical tampering.
Simplify deployment and reduce installation time
A three-step installation process, PoE, and Automatic Varifocal lens allow teams to quickly mount and focus the device without opening the housing.
Key Specifications
| Sensor type | 1/2.8 inch CMOS (2MP, 5MP) ; 1/2.7 inch CMOS (8MP |
| Resolution | 2MP ; 5MP ; 8MP |
| Low light technology | Starlight |
| WDR technology | HDR |
| Frame rate (fps) | 1 fps – 30 fps (5MP, 8MP) ; 1 fps – 60 fps (2MP) |
| Lens focal length (mm) | 3.2 – 10.5 mm |
| Horizontal field of view (°) | 105° – 31° (2MP, 8MP) ; 96º - 29º (5MP) |
| Field of view adjustment | Motorized zoom/focus |
| Video compression | H.264 / AVC; H.265 / HEVC; M-JPEG |
| IP rating | IP66; IP67 |
| Impact protection | IK10 ; NEMA 4X |
| Operating temperature | -40 °C – 55 °C (-40 °F – 131 °F) |
| IR illumination range | 45 m (148 ft) (8MP) ; 60 m (197 ft) (2MP, 5MP) |
| Analytics (built-in) | IVA Pro Buildings ; IVA Pro Privacy |
| Analytics (available) | IVA Pro Perimeter ; IVA Pro Traffic ; IVA Pro Appearance ; IVA Pro Personal Protective Equipment ; IVA Pro Visual Gun Detection ; IVA Pro License Plate ; IVA Pro Vehicle Make Model ; IVA Pro Dangerous Good Signs |
Frequently Asked Questions
Common questions about the DINION 5100i IR
The DINION 5100i IR comes with IVA Pro Buildings pre-installed, bringing highly reliable deep-learning based detection and tracking of persons and vehicles. It is extremely resistant to false triggers caused by challenging environments with rain, wind, snow, hail, and water reflections, as well as shadows and bugs, ensuring you only receive relevant alerts.
The camera combines starlight technology and High Dynamic Range (HDR) to capture exceptional details in both bright and dark areas of the scene. Additionally, a built-in intelligent infrared (IR) illuminator provides high performance and viewing distances of up to 60 meters (197 feet) in completely dark environments.
The DINION 5100i IR uses a proven three-step installation concept for rapid deployment, and power can be supplied through Power-over-Ethernet (PoE), requiring only a single cable connection to view, power, and control the camera. Furthermore, the Automatic Varifocal (AVF) feature makes it easy for installers to adjust the zoom position remotely without opening the housing.
The camera ensures the highest levels of data security and privacy protection using built-in Secure Element hardware that provides Trusted Platform Module (TPM) functionality. Together with Public Key Infrastructure (PKI) support and authenticated secure uploads, it guarantees superior protection from malicious attacks.
Yes, the robust design is rated to IP66/67, NEMA 4X, and IK10 standards, safeguarding the camera against rain, dust, vandalism, and tampering. It operates reliably in a wide ambient temperature range between -40 ºC up to +55 ºC (-40 ºF up to +131 ºF).
