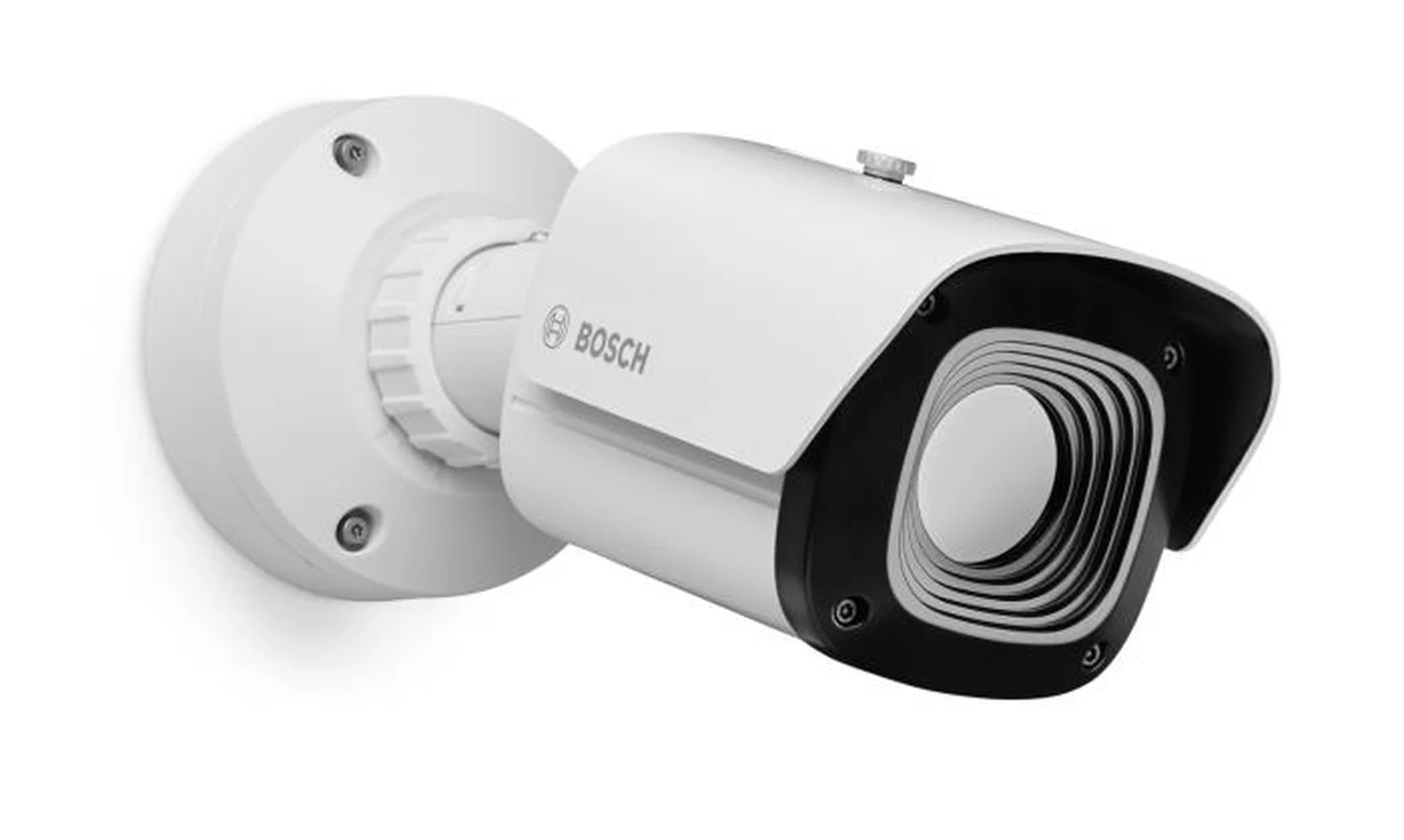

Bullet thermal VGA 10° 30Hz
The DINION thermal 8100i - VGA family maximizes detection range in 0 lux conditions for long-range mission-critical perimeter protection applications. Combining high-resolution thermal imaging with built-in IVA Pro analytics, this camera provides continuous visibility and ultra-low false alarm rates in complete darkness or challenging weather.
Commercial Type No: NBT-8701-F42VF
Maximum detection range in zero lux condition for large-scale perimeter protection.
Thermal imaging and IVA Pro Perimeter help achieve an ultra-low false alarm rate.
High resolution VGA thermal imaging.
Rugged housing and cybersecure.
AI-based (3D) autocalibration resulting in a fast and simple installation.
Product Overview
Detect what matters with near-zero false alarms
Thermal camers with built-in IVA Pro Perimeter deliver industry leading reliability with an exceptionally low false alarm rate, and clearer thermal video that operators can trust.
Longest reliable detection
Advanced VGA thermal imaging detects heat signatures, ensuring reliable long-range detection in total darkness, rain, smoke, fog, shadow or glare.
Simplify deployment with AI autocalibration
AI-based 3D autocalibration removes the complexity of 3D calibration and potential user error to deliver the best analytics performance.
Ensure reliability in extreme environments
A rugged, corrosion-resistant housing with built-in heaters ensures continuous performance through freezing temperatures, heavy rain, and vandalism attempts.
Protect critical data from cyber threats
A built-in Trusted Platform Module and secure firmware protection safeguard device access and network communications against malicious attacks.
Key Specifications
| Sensor type | Uncooled microbolometer (VOx) |
|---|---|
| Resolution | 640 x 480 |
| Sensor technology | Thermal imaging |
| WDR technology | Thermal Sensitivity: < 30 mK at 25 °C (77 ° F) |
| Frame rate (fps) | 1 fps – 30 fps |
| Lens focal length (mm) | 42 mm |
| Horizontal field of view (°) | 10° |
| Field of view adjustment | Fixed lens |
| Video compression | H.264; H.265; M-JPEG |
| IP rating | IP66; IP67 |
| Impact protection | IK10 |
| Operating temperature | -40 °C – 55 °C (-40 °F – 131 °F) |
| Analytics (built-in) | IVA Pro Buildings; IVA Pro Perimeter |
Frequently Asked Questions
Common questions about the Bullet thermal VGA 10° 30Hz
The camera utilizes a high-resolution VGA thermal imager to detect heat signatures and visualize subtle temperature differences. This allows the system to achieve a maximum detection range in zero-lux conditions, making it highly effective for large-scale perimeter security where visual light is absent or compromised by smoke and fog.
The system combines thermal imaging with pre-installed IVA Pro Perimeter analytics. This deep-learning technology is extremely resistant to false triggers caused by environmental distractions such as rain, wind, moving trees, snow, and small animals, helping organizations achieve an ultra-low false alarm rate while reliably tracking professional intruders.
The camera features AI-based 3D autocalibration, which minimizes configuration effort and ensures a quick, precise setup. Physically, it follows a proven three-step installation process with a patented swivel and large ball joint, allowing installers to easily position and secure the device with one hand without requiring specialized tools.
Yes, the camera is designed with a rugged, corrosion-resistant housing rated to IP66, IP67, and IK10 standards. It features a powered window defroster and an interior heater, ensuring reliable operation and clear image details in wide ambient temperatures ranging from -40 °C to +55 °C (-40 °F to 131 °F).
The camera is cybersecure by design, incorporating an on-board Trusted Platform Module (TPM), an Embedded Login Firewall, and Public Key Infrastructure (PKI) support. It enforces secure channels upon initial setup, utilizes TLS 1.2 with AES 256-bit encryption, and only allows the upload of authenticated firmware to ensure the highest level of data security.
