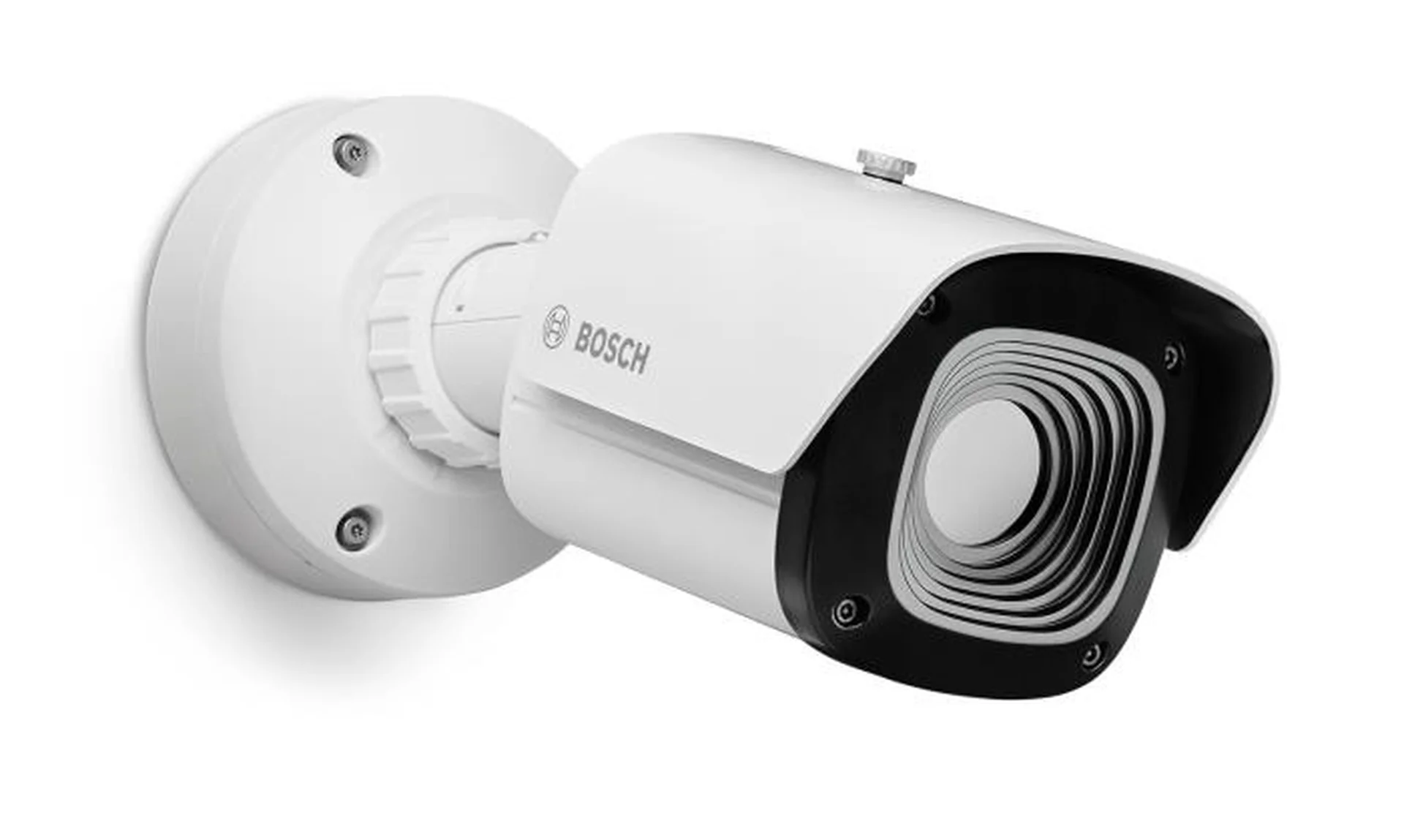

Bullet thermal VGA 31° 30Hz
The DINION thermal 8100i - VGA family maximizes detection range in 0 lux conditions for long-range mission-critical perimeter protection applications. Combining high-resolution thermal imaging with built-in IVA Pro analytics, this camera provides continuous visibility and ultra-low false alarm rates in complete darkness or challenging weather.
Commercial Type No: NBT-8701-F14VF
Maximum detection range in zero lux condition for large-scale perimeter protection.
Thermal imaging and IVA Pro Perimeter help achieve an ultra-low false alarm rate.
High resolution VGA thermal imaging.
Rugged housing and cybersecure.
AI-based (3D) autocalibration resulting in a fast and simple installation.
Product Overview
Detect what matters with near-zero false alarms
Thermal camers with built-in IVA Pro Perimeter deliver industry leading reliability with an exceptionally low false alarm rate, and clearer thermal video that operators can trust.
Longest reliable detection
Advanced VGA thermal imaging detects heat signatures, ensuring reliable long-range detection in total darkness, rain, smoke, fog, shadow or glare.
Simplify deployment with AI autocalibration
AI-based 3D autocalibration removes the complexity of 3D calibration and potential user error to deliver the best analytics performance.
Ensure reliability in extreme environments
A rugged, corrosion-resistant housing with built-in heaters ensures continuous performance through freezing temperatures, heavy rain, and vandalism attempts.
Protect critical data from cyber threats
A built-in Trusted Platform Module and secure firmware protection safeguard device access and network communications against malicious attacks.
Key Specifications
| Sensor type | Uncooled microbolometer (VOx) |
|---|---|
| Resolution | 640 x 480 |
| Sensor technology | Thermal imaging |
| WDR technology | Thermal Sensitivity: < 30 mK at 25 °C (77 °F) |
| Frame rate (fps) | 1 fps – 30 fps |
| Lens focal length (mm) | 14 mm |
| Horizontal field of view (°) | 31° |
| Field of view adjustment | Fixed lens |
| Video compression | H.264; H.265; M-JPEG |
| IP rating | IP66; IP67 |
| Impact protection | IK10 |
| Operating temperature | -40 °C – 55 °C (-40 °F – 131 °F) |
| Analytics (built-in) | IVA Pro Buildings; IVA Pro Perimeter |
Frequently Asked Questions
Common questions about the Bullet thermal VGA 31° 30Hz
The camera utilizes an uncooled vanadium oxide microbolometer to capture high-resolution VGA thermal imaging. This allows the system to detect the heat signatures of people and vehicles in zero-lux conditions, heavy smoke, or fog, ensuring reliable large-scale perimeter protection when visual light is entirely absent.
The system comes pre-installed with IVA Pro Perimeter and IVA Pro Buildings. By combining advanced thermal imaging with deep-learning video analytics, the camera accurately detects and tracks professional intruders while ignoring environmental triggers like moving trees, shadows, severe weather, and small animals. This integration helps achieve an ultra-low false alarm rate.
The camera features AI-based 3D autocalibration, which significantly reduces configuration time and effort, resulting in a fast and simple installation. Physically, it utilizes a proven three-step installation process with a large, patented swivel ball joint that allows integrators to easily position the device with one hand without the need for specialized tools.
Yes, the rugged housing is certified to IP66, IP67, and IK10 standards, offering robust protection against dust, heavy rain, and tampering. It also includes an interior heater and a powered window defroster to prevent condensation and ice build-up, ensuring clear image details in temperatures as low as -40 °C (-40 °F).
The device is highly cybersecure by design. It features an Embedded Login Firewall, an on-board Trusted Platform Module (TPM), and Public Key Infrastructure (PKI) support. These robust measures, combined with secure boot and AES 256-bit encryption, ensure secure data transport and protect the system from malicious network attacks.
