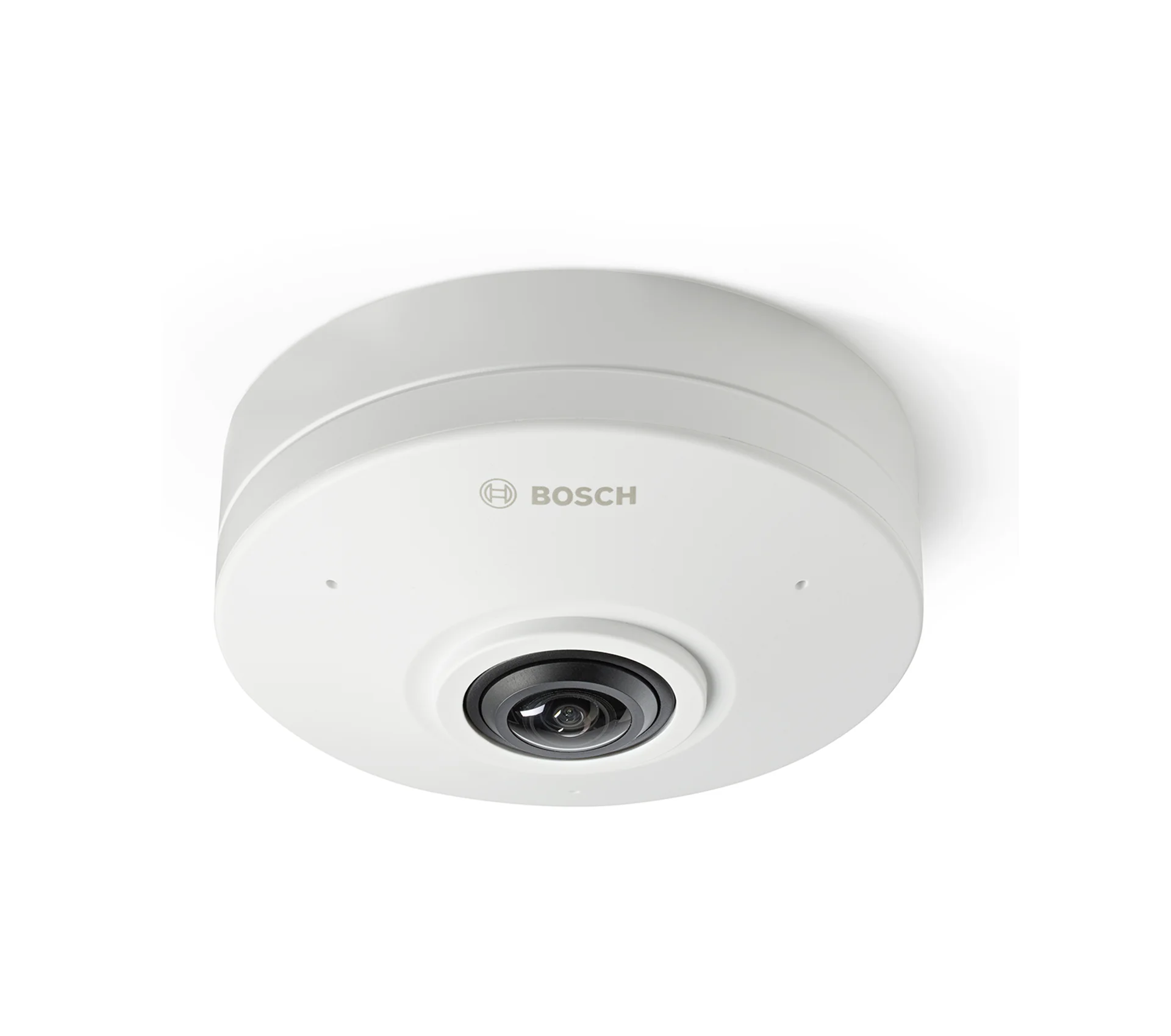

Fixed dome 12MP 360º
The FLEXIDOME panoramic 5100i family are discreet and aesthetic panoramic cameras for indoor surveillance, offering exceptional 360-degree visibility with 6- or 12-megapixel detail, edge dewarping, and built-in IVA Pro visual analytics and audio analytics.
Commercial Type No: NDS-5704-F360
360° panoramic overview in 12MP resolution without blind spots
High Dynamic Range to see every detail in both bright and dark areas of the scene
Edge or client-side dewarping for easy integration and flexible viewing and recording
Built-in IVA Pro Buildings, IVA Pro Perimeter and Intelligent Audio Analytics to trigger relevant alerts and quickly retrieve data
Compact design for unobtrusive indoor use with quick and easy installation and set-up
Product Overview
Eliminate blind spots with complete coverage
A 360-degree panoramic lens provides continuous situational awareness across large indoor spaces from a single device.
Automate detection with intelligent video analytics
Built-in IVA Pro reliably tracks and classifies people and vehicles to provide real-time understanding while minimizing false alarms.
Detect incidents beyond the visual field
Integrated audio analytics identify specific sound signatures like gunshots or alarms to give operators early warnings before a visual threat appears.
Maintain clear visibility in challenging lighting
High Dynamic Range technology ensures operators can easily distinguish critical details in both highly illuminated and shadowed areas.
Simplify deployment with an unobtrusive design
The compact, aesthetic housing blends into retail or commercial environments and offers quick setup with simple calibration.
Key Specifications
| Sensor type | 1/2.3 inch CMOS |
|---|---|
| Resolution | 12MP |
| WDR technology | HDR |
| Frame rate (fps) | 1 fps – 30 fps |
| Lens focal length (mm) | 1.26 mm fixed |
| Field of view adjustment | E-PTZ |
| Video compression | H.264 / AVC; H.265 / HEVC; M-JPEG |
| Impact protection | IK08 |
| Operating temperature | -10 °C – 45 °C (14 °F – 113 °F) |
| Analytics (built-in) | IVA Pro Buildings ; IVA Pro Perimeter ; Intelligent Audio Analytics |
| Analytics (available) | IVA Pro Privacy |
Frequently Asked Questions
Common questions about the Fixed dome 12MP 360º
The camera features a stereographic, panoramic lens that provides a full 360-degree overview in a 12MP sensor resolution without blind spots. This ensures continuous visibility across wide indoor applications, allowing operators to monitor full scenes while simultaneously viewing high-resolution zoomed-in details without losing context.
The FLEXIDOME panoramic 5100i features built-in IVA Pro Buildings and IVA Pro Perimeter to reliably detect, track, and analyze objects while minimizing false alarms. Additionally, it includes Intelligent Audio Analytics powered by an integrated digital microphone array to detect specific sound signatures, seamlessly integrating audio metadata with the video stream to trigger relevant alerts.
To facilitate seamless system integration, the camera offers both edge dewarping inside the camera and client-side dewarping on an external platform. Edge dewarping provides three separate video channels simultaneously: the full image circle, a dewarped view mode, and an electronic pan-tilt-zoom (E-PTZ) channel, giving teams flexible viewing and recording options.
The camera utilizes High Dynamic Range (HDR) based on a multiple-exposure process to capture clear details in both the brightest highlights and the darkest shadows of the same scene. This ensures operators can easily distinguish critical features, such as faces with bright backlighting, maintaining reliable visibility in demanding indoor environments.
Special measures are in place to ensure the highest level of data security, including built-in Secure Element (SE) hardware with Trusted Platform Module (TPM) functionality. It supports end-to-end encryption, Public Key Infrastructure (PKI), and 802.1x network authentication, guaranteeing superior protection for device access and data transport.
