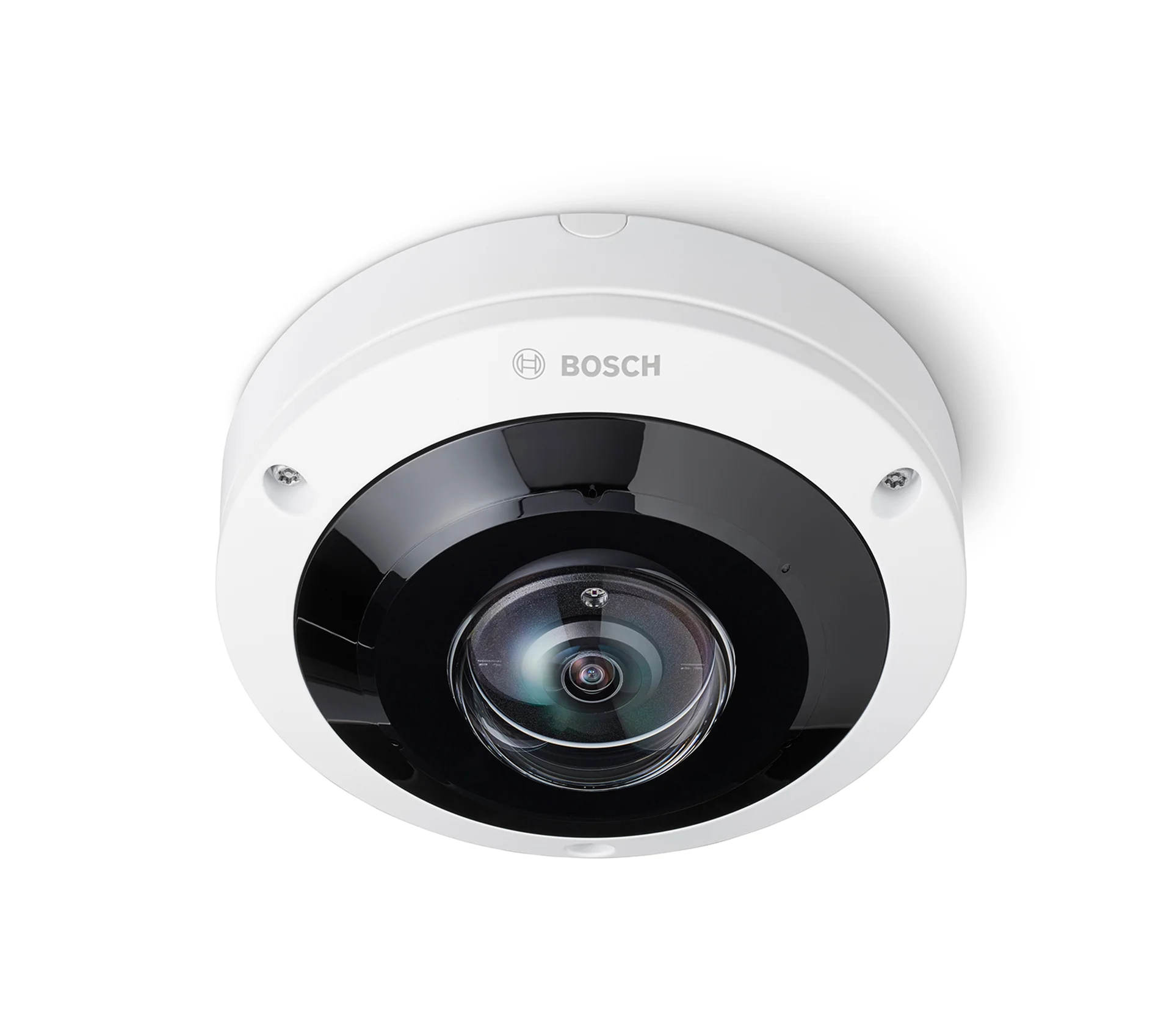

Fixed dome 6MP 360º IP66 IR
The FLEXIDOME panoramic 5100i IR family delivers 360-degree visibility without blind spots and integrated IR and High Dynamic Range for effective monitoring in all lighting conditions. Intelligent Video Analytics and Intelligent Audio Analytics support a wide range of indoor and outdoor applications.
Commercial Type No: NDS-5703-F360LE
360° panoramic overview in 6MP resolution without blind spots
Optimized for all lighting conditions with integrated IR and High Dynamic Range
Edge or client-side dewarping for easy integration and flexible viewing and recording
Built-in IVA Pro Buildings, IVA Pro Perimeter and Intelligent Audio Analytics to trigger relevant alerts and quickly retrieve data
Compact design protected against vandalism and all weather conditions
Product Overview
Complete 360-degree visibility
Eliminate blind spots and maintain full situational awareness across large areas with a single stereographic lens.
Intelligent real-time detection
Built-in IVA Pro Buildings and IVA Pro Perimeter automatically detect, track, and classify objects to help teams respond to genuine events faster.
Audio-driven event awareness
Intelligent Audio Analytics identifies critical sound signatures, providing an additional layer of context so operators can understand unfolding situations earlier.
Flexible distortion-free viewing
Edge or client-side dewarping transforms panoramic images into clear, rectangular views without losing the ability to record the full scene.
Reliable operation anywhere
High Dynamic Range, integrated IR illumination, and a robust IP66 and IK10 housing ensure clear video and durable performance in challenging weather and lighting.
Key Specifications
| Sensor type | 1/1.8 inch CMOS (6MP) ; 1/2.3 inch CMOS (12MP) |
|---|---|
| Resolution | 6MP |
| WDR technology | HDR |
| Frame rate (fps) | 1 fps – 30 fps |
| Lens focal length (mm) | 1.155 mm fixed |
| Field of view adjustment | Fixed lens (360° panoramic) |
| Video compression | H.264 / AVC; H.265 / HEVC; M-JPEG |
| IP rating | IP66 |
| Impact protection | IK10 |
| Operating temperature | -40 °C – 50 °C (-40 °F – 122 °F) |
| IR illumination range | 20 m (66 ft) |
| Analytics (built-in) | IVA Pro Buildings ; IVA Pro Perimeter ; Intelligent Audio Analytics |
| Analytics (available) | IVA Pro Privacy |
Frequently Asked Questions
Common questions about the Fixed dome 6MP 360º IP66 IR
The camera captures a complete circular image and utilizes advanced edge or client-side dewarping software to transform it into multiple distortion-free rectangular views. This allows you to monitor the full 360-degree panoramic overview in 6MP resolution without blind spots, while simultaneously viewing targeted regions of interest using electronic pan, tilt, and zoom (E-PTZ) controls.
The camera comes equipped with built-in Intelligent Video Analytics Pro (IVA Pro) Buildings and IVA Pro Perimeter. These powerful tools enrich situational awareness by reliably detecting, tracking, and analyzing objects throughout the full image circle. Designed for demanding environments, the analytics are highly resistant to false triggers from rain, snow, or moving trees, ensuring operators receive relevant alerts when it matters most.
Yes, the camera features an integrated microphone array that supports Intelligent Audio Analytics. This AI-driven technology identifies specific sound events, such as T3/T4 alarms and gunshots, and generates metadata to alert operators. By seamlessly integrating with the video analytics metadata stream, it gives meaning to the sounds it captures and helps security teams act earlier.
The camera is optimized for all lighting conditions, featuring integrated IR and High Dynamic Range (120 dB). The integrated infrared illumination can be controlled in multiple zones to prevent saturation, while High Dynamic Range captures clear details in both bright highlights and dark shadows, ensuring you can easily distinguish objects and faces even with strong backlight.
Yes. The compact design is rated to IP66 and IK10 standards, safeguarding the camera against dust, heavy rain, and vandalism. Additionally, it is secure by design, featuring a built-in Secure Element with Trusted Platform Module (TPM) functionality and advanced certificate handling to ensure the highest levels of data security and privacy protection.
