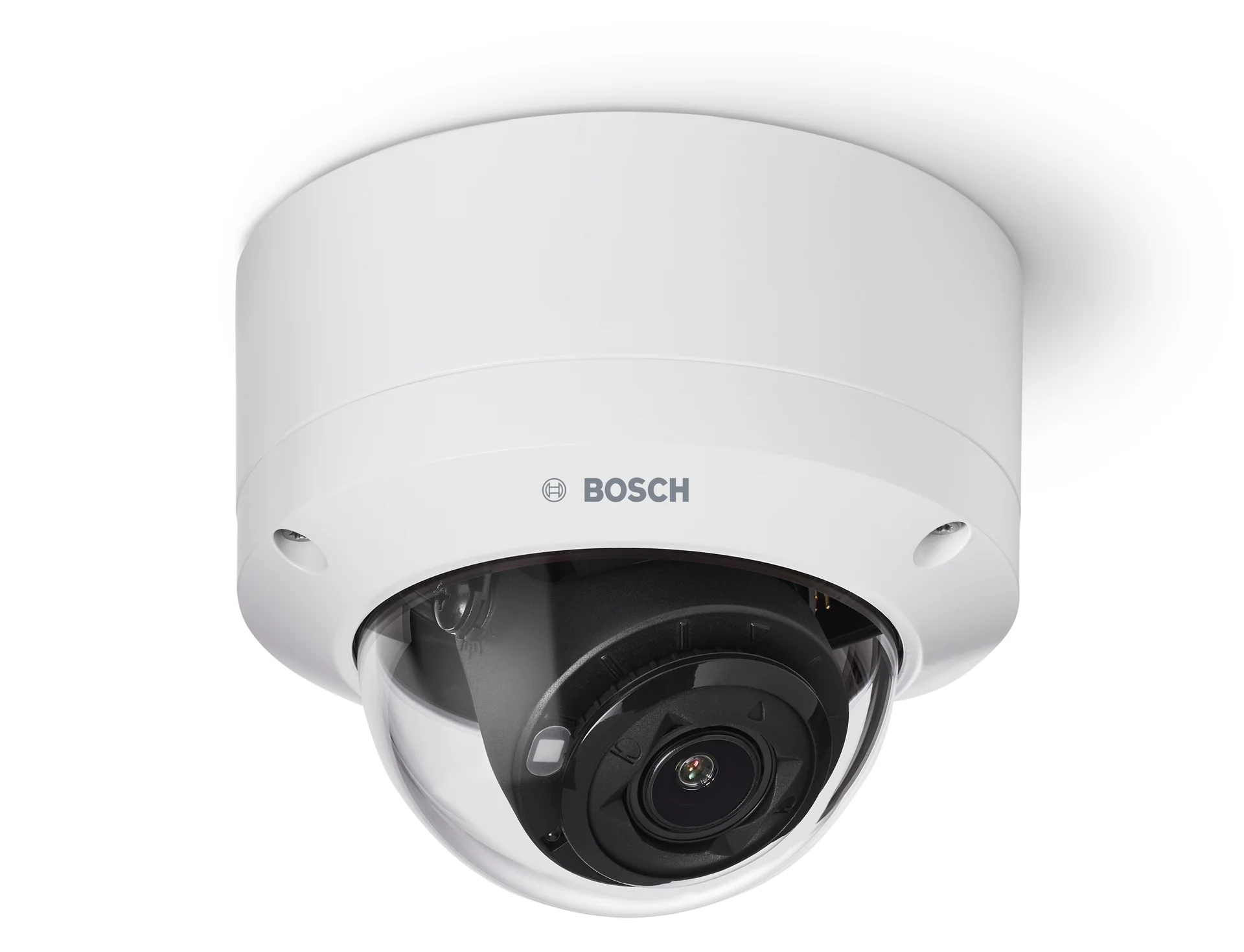

Fixed dome 8MP HDR 3.2-10.5mm IR I/O
The FLEXIDOME indoor 5100i IR family delivers continuous visibility and real-time understanding in demanding environments. Featuring built-in intelligent infrared illumination and IVA Pro Buildings, this camera ensures clear, reliable detection in extreme low-light conditions.
Commercial Type No: NDV-5704-AL
4K ultra HD for highly detailed images
Starlight camera technology with excellent low-light performance
IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested
High Dynamic Range to see every detail in both bright and dark areas of the scene
Built-in intelligent IR illuminator with up to 40 m (132 ft) viewing distance
Product Overview
Filter false triggers with deep-learning detection
Built-in IVA Pro Buildings reliably detects and classifies persons and vehicles, ignoring shadows and reflections to deliver accurate alerts without complex calibration.
Maintain continuous visibility in darkness
The built-in intelligent infrared illuminator adapts to the scene, providing clear, highly detailed imaging up to 45 meters (148 feet) even in near zero-light conditions.
See clear details in high-contrast lighting
High Dynamic Range technology captures distinct details in both bright highlights and the dark shadows of the same scene.
Simplify deployment with modular installation
A click-and-rotate mechanism and Automatic Varifocal lens allow teams to securely mount, zoom, and focus the device without opening the housing.
Secure video data from capture to delivery
A built-in Secure Element and advanced encryption standards safeguard device access and ensure long-term cyber resilience against malicious attacks.
Key Specifications
| Sensor type | 1/2.8 inch CMOS |
|---|---|
| Resolution | 8 MP |
| Low light technology | starlight |
| WDR technology | HDR |
| Frame rate (fps) | 1 fps – 30 fps |
| Lens focal length (mm) | 3.2 – 10.5 mm |
| Horizontal field of view (°) | 105° – 31° |
| Field of view adjustment | Motorized zoom/focus |
| Video compression | H.264 / AVC; H.265 / HEVC; M-JPEG |
| IP rating | IP54 |
| Impact protection | IK10 |
| Operating temperature | -20 °C – 50 °C (-4 °F – 122 °F) |
| IR illumination range | 40 m (132 ft) |
| Analytics (built-in) | IVA Pro Buildings ; IVA Pro Privacy |
| Analytics (available) | IVA Pro Perimeter ; IVA Pro Traffic ; IVA Pro Appearance ; IVA Pro Personal Protective Equipment ; IVA Pro Visual Gun Detection ; IVA Pro License Plate ; IVA Pro Vehicle Make Model ; IVA Pro Dangerous Good Signs ; Intelligent Audio Analytics |
Frequently Asked Questions
Common questions about the Fixed dome 8MP HDR 3.2-10.5mm IR I/O
The camera combines 4K ultra HD resolution with High Dynamic Range and starlight technology to capture highly detailed images in both bright and dark areas of a scene. An integrated intelligent IR illuminator extends visibility up to 40 meters (132 feet), ensuring clear, reliable imaging in extreme low-light or pitch-dark environments.
The camera comes with IVA Pro Buildings pre-installed. This deep learning-based analytics suite delivers highly reliable detection and tracking of persons and vehicles, even in crowded or congested scenes. It ignores false triggers like shadows, reflections, and moving trees, allowing operators to understand context in real time and act earlier.
Designed for fast and straightforward deployment, the camera uses a modular structure with a click-and-rotate mechanism that requires no hardware to secure the camera to the housing. It supports Power-over-Ethernet (PoE) for single-cable power and network connectivity, and features an Automatic Varifocal (AVF) lens for easy remote zoom and focus adjustments.
The camera is secure by design, featuring a built-in Secure Element and Trusted Platform Module (TPM) functionality to protect device access and data transport. It supports Public Key Infrastructure (PKI), HTTPS web browser access, and secure firmware updates, providing superior protection against malicious attacks and ensuring long-term privacy.
Yes, the camera features an integrated microphone and supports two-way audio via an external line input and output. This allows operators to communicate with individuals in the area or use audio detection to generate alarms. By incorporating sound, security teams gain a deeper understanding of the environment and can respond proactively to potential issues.
