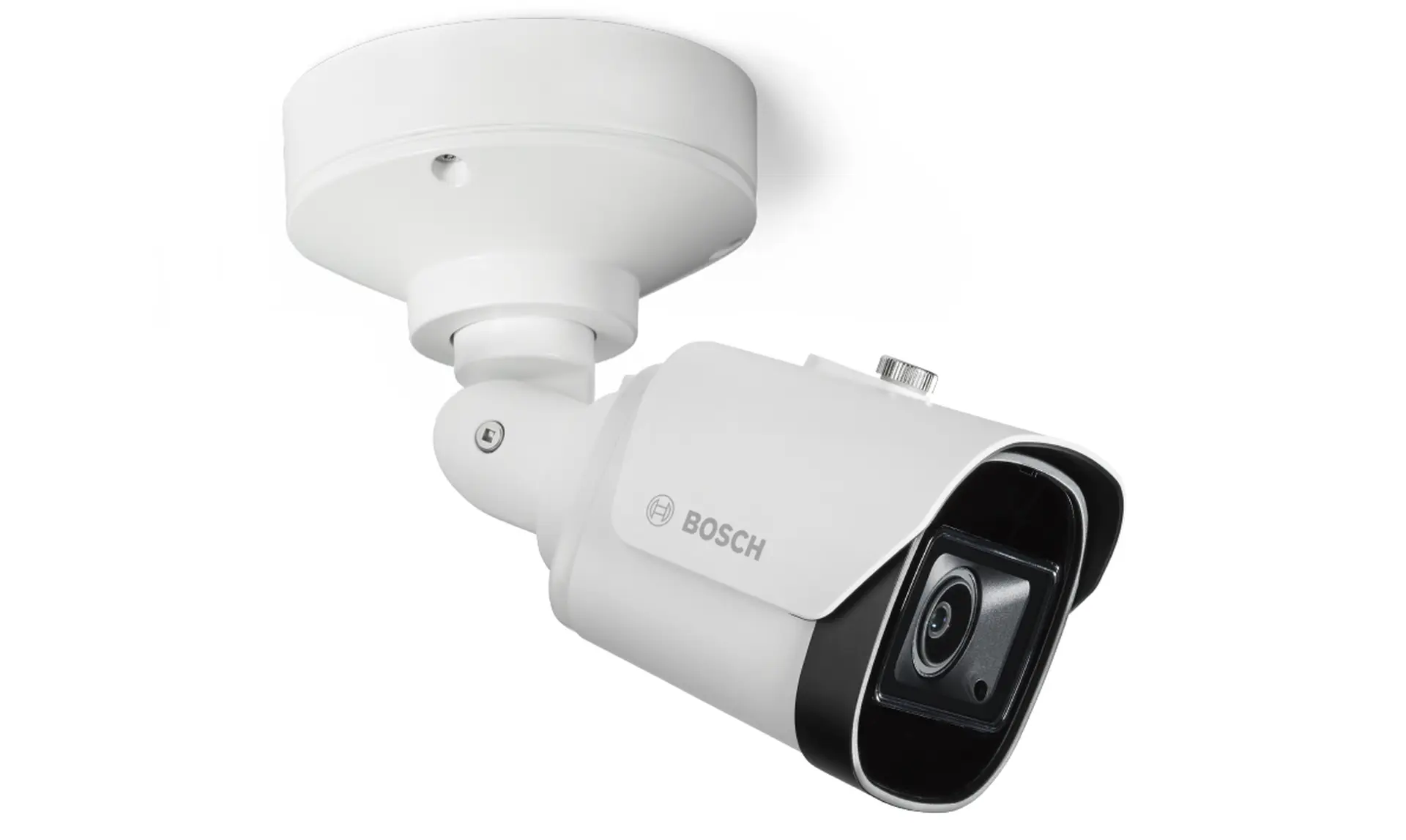

DINION 3100i IR

DINION 3100i IR

The DINION 3100i IR family delivers reliable outdoor visibility and intelligent detection for everyday security needs. With built-in analytics and a compact, weather-resistant design, it ensures clear, continuous awareness in challenging environments.

  • Up to 5MP resolution

  • IVA Pro Buildings brings reliable deep-learning based detection of persons and vehicles

  • High Dynamic Range (HDR) to see every detail in both bright and dark areas of the scene

  • Built-in Secure Element with Trusted Platform Module (TPM) to ensure the highest level of security for device access and data transport

  • Built-in intelligent IR illuminator with up to 30 m (98 ft) viewing distance

Product Overview

Detect critical events with high accuracy

Built-in IVA Pro Buildings accurately classifies people and vehicles while filtering out false triggers from weather and moving shadows.

See every detail in challenging light

High Dynamic Range captures clear, actionable images in scenes with both bright highlights and deep shadows.

Maintain visibility in complete darkness

The intelligent IR illuminator ensures continuous area coverage and clear identification up to 30 meters away when ambient light drops.

Secure data from capture to delivery

A built-in Secure Element and Trusted Platform Module safely store cryptographic keys to protect your network against unauthorized access.

Reduce bandwidth and storage costs easily

Intelligent streaming only encodes relevant scene information, significantly lowering network strain without sacrificing critical video quality.

Key Specifications

Key specifications
Sensor type1/2.8 inch CMOS
Resolution2MP
WDR technologyHDR
Frame rate (fps)1 fps – 30 fps
Lens focal length (mm)3.3 mm – 10.2 mm
Horizontal field of view (°)106° – 31°
Field of view adjustmentMotorized zoom/focus
Video compressionH.264 / AVC; H.265 / HEVC; M-JPEG
IP ratingIP66
Impact protectionIK10
Operating temperature-30 °C – 50 °C (-22 °F – 122 °F)
IR illumination range30 m
Analytics (built-in)Intelligent Video Analytics Pro: IVA Pro Buildings

Frequently Asked Questions

Common questions about the DINION 3100i IR

The camera comes pre-installed with IVA Pro Buildings, which provides highly reliable deep-learning-based detection and tracking of persons and vehicles. It is resistant to false triggers caused by challenging environments, such as rain, wind, snow, and moving shadows, helping ensure operators receive relevant alerts.

Designed for continuous visibility, the camera utilizes High Dynamic Range (HDR) technology to capture detailed images in both bright and dark areas of a scene. Additionally, a built-in intelligent IR illuminator provides clear viewing distances up to 30 meters (98 feet), even in complete darkness.

Special measures ensure a high level of security for device access and data transport. The camera features a built-in Secure Element (SE) with Trusted Platform Module (TPM) functionality, which safely stores all certificates and keys needed for authentication and encryption, guaranteeing superior protection against malicious attacks.

Smart encoding capabilities utilize video analytics to reduce bandwidth consumption. Because only relevant information in the scene—such as motion or objects found through analytics—is encoded, the camera can reduce bit rates by up to 90 percent compared to standard cameras while maintaining high-quality video tailored to your specific purpose.

Yes, the compact design is built to withstand demanding conditions. It features IK10 impact protection against vandalism and an IP66 ingress protection rating, ensuring reliable, continuous performance against severe weather, dust, and heavy rain.
