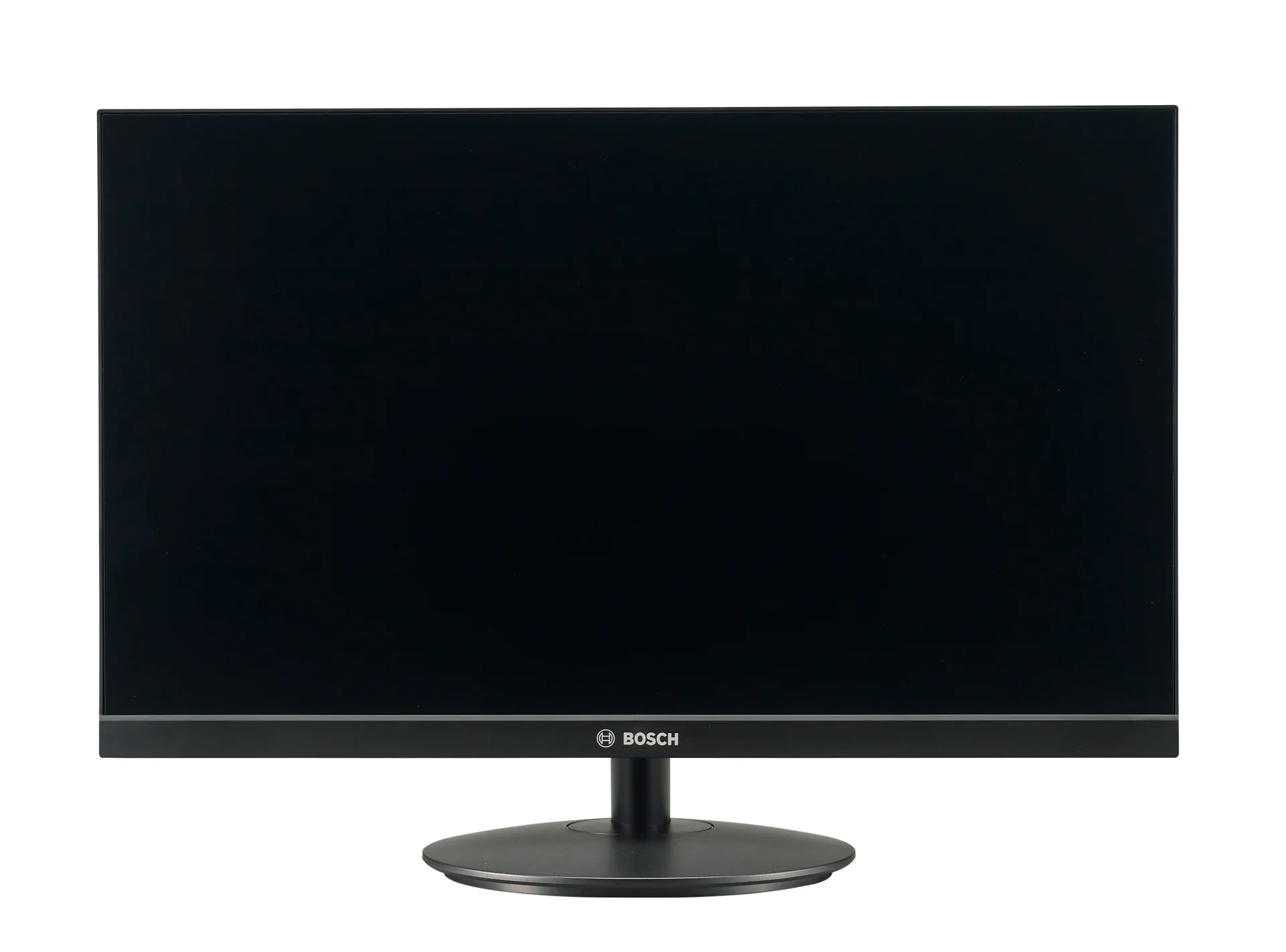

23.8 inch FHD LED monitor
The 23.8 inch FHD LED monitor delivers continuous, high-resolution visibility for demanding video security environments. Engineered for 24/7 reliability with precise color reproduction and anti-image retention, it empowers operators to monitor critical situations clearly and act with confidence.
Commercial Type No: UML-245-90
Complies with standard Delta E2000 < 2 to provide true color performance
Precise color reproduction and anti-image retention
Complies with voltage dip immunity standard IEC61000-4-2
LED backlight panel for higher luminance and lower power consumption
Auto channel switching
Product Overview
See true color performance clearly
Compliance with the Delta E2000 < 2 standard ensures precise color reproduction, helping operators accurately identify vehicle and clothing colors during critical events.
Visualize intelligent video analytics accurately
High-resolution displays and precise gamma curve settings ensure that bounding boxes and real-time metadata from edge-based analytics are sharply visible for fast decision-making.
Ensure continuous operational reliability
Built for 24/7 usage and compliant with the IEC61000-4-2 voltage dip immunity standard, the display remains stable and dependable even during minor power fluctuations.
Prevent static image screen degradation
Built-in anti-image retention technology automatically shifts pixels to prevent image sticking when displaying static camera scenes over long periods.
Maximize luminance with less power
An advanced LED backlight panel delivers bright, high-contrast images while lowering overall power consumption to improve operational efficiency.
Key Specifications
| Contrast ratio | 1000 |
| Dimensions (H x W x D) (in) | 15.25 x 21.30 x 8.65 in |
| Dimensions (H x W x D) (mm) | 387.35 x 541.02 x 219.71 mm |
| Display color | Color |
| Display resolution (pixels) | 1920 x 1080 px |
| Display size (in) | 23.80 in |
| Display type | LCD |
| Luminance (cd/m²) | 200 cd/m² |
| Operating relative humidity, non-condensing (%) | 0 – 90 % |
| Operating temperature (°C) | 0 – 40 °C |
| Operating temperature (°F) | 32 – 104 °F |
| Storage relative humidity (%) | 0 – 90 % |
| Storage temperature (°C) | 0 – 50 °C |
| Storage temperature (°F) | 32 – 122 °F |
| Weight (kg) | 3.80 kg |
Frequently Asked Questions
Common questions about the 23.8 inch FHD LED monitor
The monitor complies with standard Delta E2000 < 2 to provide true color performance from your camera to your screen. It automatically focuses on setting the correct color, temperature, and gamma curve settings to deliver precise color reproduction and the highest possible picture quality.
Yes, the monitor is designed and tested for 24/7 usage. It features advanced anti-image retention capabilities that help prevent image sticking or image burning that may occur in situations of displaying static scenes over a long period of time. This is achieved by shifting the entire screen by one pixel distance clockwise after a set time interval, which can be customized directly in the On-screen display menu.
To maintain uninterrupted operational awareness, the display complies with the voltage dip immunity standard IEC61000-4-2, protecting the hardware during power irregularities. Additionally, it utilizes an LED backlight panel for higher luminance and lower power consumption, maximizing long-term efficiency.
The monitor adapts automatically to the input resolution of the incoming video signal up to 1920 x 1080 resolution (Full HD). It also incorporates auto channel switching, simplifying deployment and ensuring operators can view critical feeds without complex manual configuration.
The firmware of the monitor can be efficiently upgraded by using the built-in USB port. Furthermore, the hardware supports High-bandwidth Digital Content Protection (HDCP) to allow playback of HDCP-encrypted content, ensuring sensitive video data is securely viewed in the control room.
