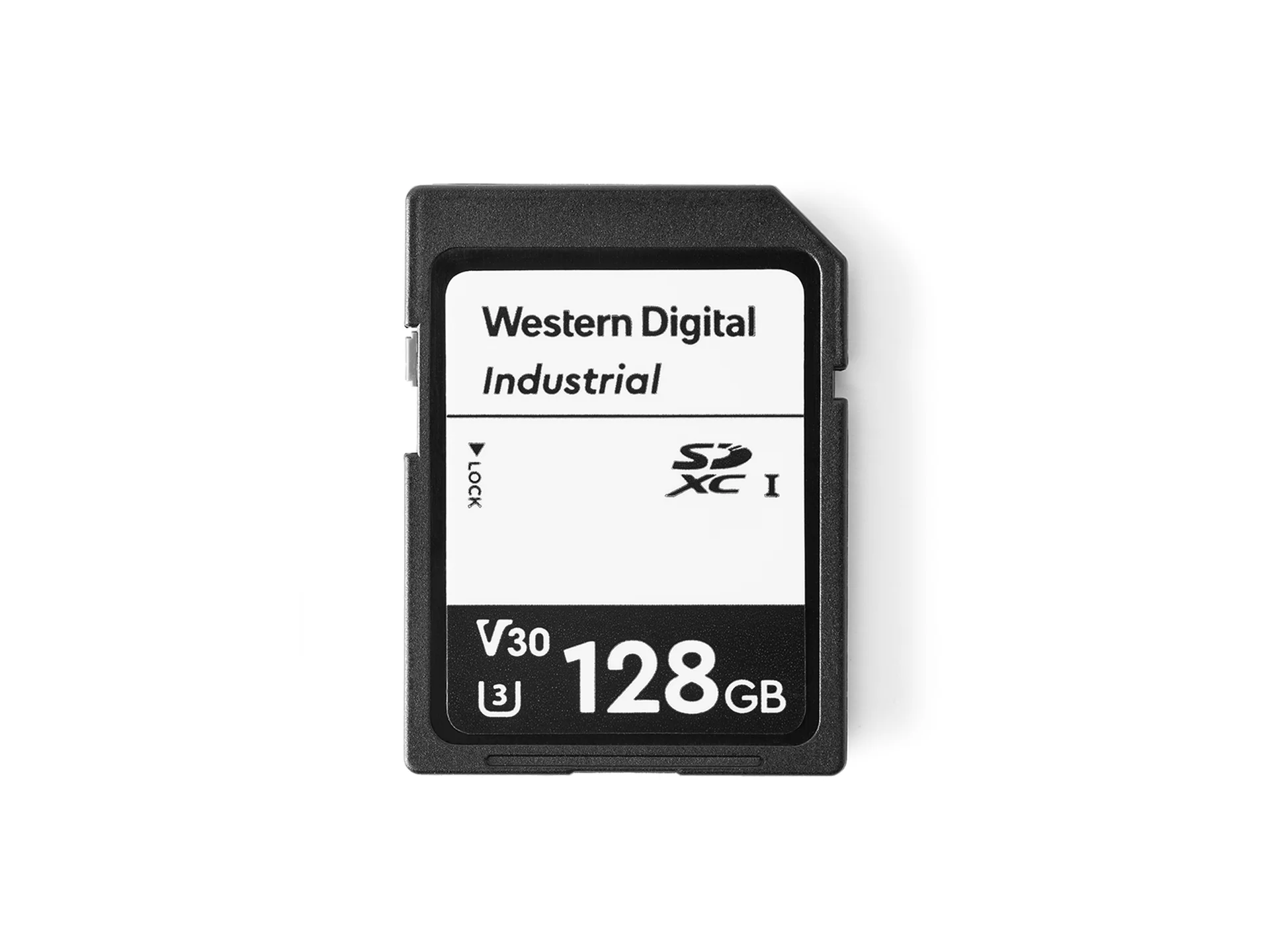

IP security SD card 128GB
The IP security SD card 128GB delivers extreme endurance and reliable decentralized edge recording for demanding environments. Featuring proactive Health Status Monitoring, this industrial storage solution ensures continuous visibility and data integrity without requiring on-site servers.
Commercial Type No: SD-128G
Industrial SD cards from Western Digital
Extreme endurance
Health Status Monitoring allowing proactive maintenance
Approved for IQSIGHT surveillance cameras
5-year warranty
Product Overview
Rely on extreme recording endurance
Pre-alarm recording in RAM minimizes physical write cycles to significantly extend the lifetime of your edge storage.
Perform proactive system maintenance
Built-in Health Status Monitoring sends automatic lifespan alerts so you can replace storage before a failure occurs.
Support continuous video analytics processing
High-speed data retention ensures cameras capture the seamless, high-resolution footage needed for accurate IVA Pro detection.
Simplify your video storage architecture
Decentralized edge recording eliminates the need for on-site servers and NVRs while maintaining continuous visibility.
Maintain recording in harsh environments
Tested for extended temperature ranges, these cards ensure critical video is saved reliably during extreme weather or industrial conditions.
Key Specifications
| Interface | SD6.0 UHS-I 104 |
|---|---|
| Sequential write speed | Up to 50 MB/s |
| Sequential read speed | Up to 100 MB/s |
| Endurance | SD-128G: 384 TBW |
| Speed class | 10, U1/U3, V10/V30 |
| Proactive maintenance | Health Status Monitoring (CPP4, CPP6, CPP7, CPP7.3, CPP14) |
| Write-protection | Using mechanical switch |
| Data retention | 10 years data retention at 55 °C for fresh devices |
| Dimensions (H x W x D) (mm) | 32 mm x 24 mm x 2.10 mm |
| Dimensions (H x W x D) (in) | 1.26 in x 0.95 in x 0.08 in |
| Color | Black |
| Operating temperature (°C) | -25 °C – 85 °C |
| Operating temperature (°F) | -13 °F – 185 °F |
| Regulatory Compliance | Emissions: EN 55032:2015 Class B; Environmental: RoHS/EMC EU; Immunity: EN 61000-4-2:2009; Marks: CE, UKCA, C-tick, FCC, EAC, REACH, WEEE |
| Product Weight | 2 g |
| Memory card capacity | 128 GB |
Frequently Asked Questions
Common questions about the IP security SD card 128GB
By supporting decentralized edge recording, it eliminates the need for on-site servers and NVRs. This function can act as a primary standalone storage solution or serve as a secondary backup alongside centralized recording, ensuring uninterrupted visibility and reliable data integrity.
Yes, this industrial SD card from Western Digital is fully approved for IQSIGHT surveillance cameras equipped with a local SD card slot. It seamlessly integrates with the camera's hardware to support advanced capabilities like edge recording and Health Status Monitoring.
The card includes built-in Health Status Monitoring that triggers a lifespan alarm when the storage medium approaches its endurance limit. This intelligence allows security teams to perform proactive maintenance and replace the card before a failure occurs, maintaining continuous operation.
Engineered for extreme endurance, the card is designed and tested to withstand harsh conditions, operating reliably in temperatures ranging from -25 °C to 85 °C (-13 °F to 185 °F). Backed by an extended 5-year warranty, it delivers dependable performance and up to 10 years of data retention.
The card delivers fast read and write performance—up to 100 MB/s read and 50 MB/s write—to easily manage high bit-rate video streams. To maximize its lifespan, pre-alarm recording is processed in the camera's RAM, which significantly reduces write cycles on the SD card and helps it achieve a robust endurance limit of 384 TBW.
