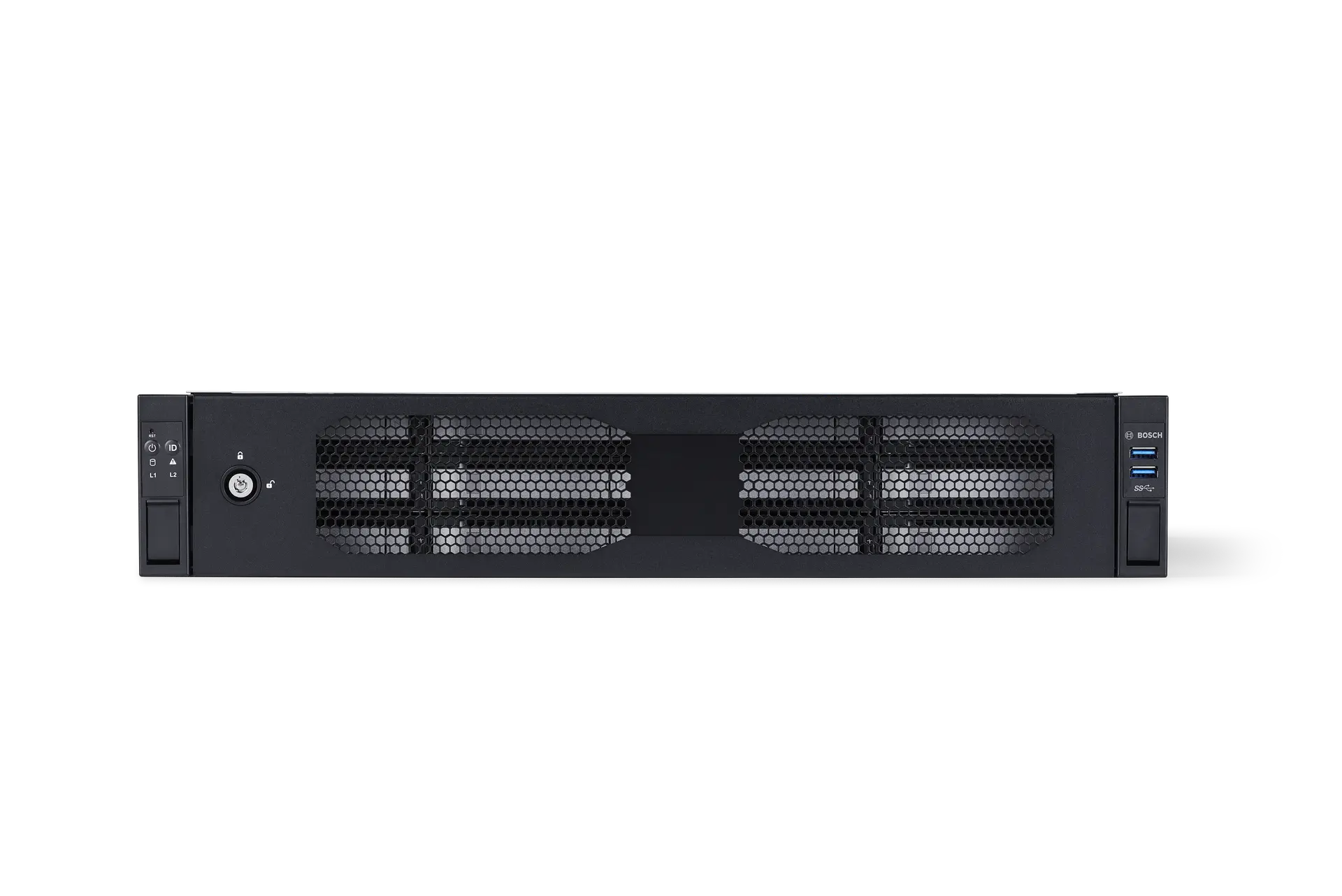

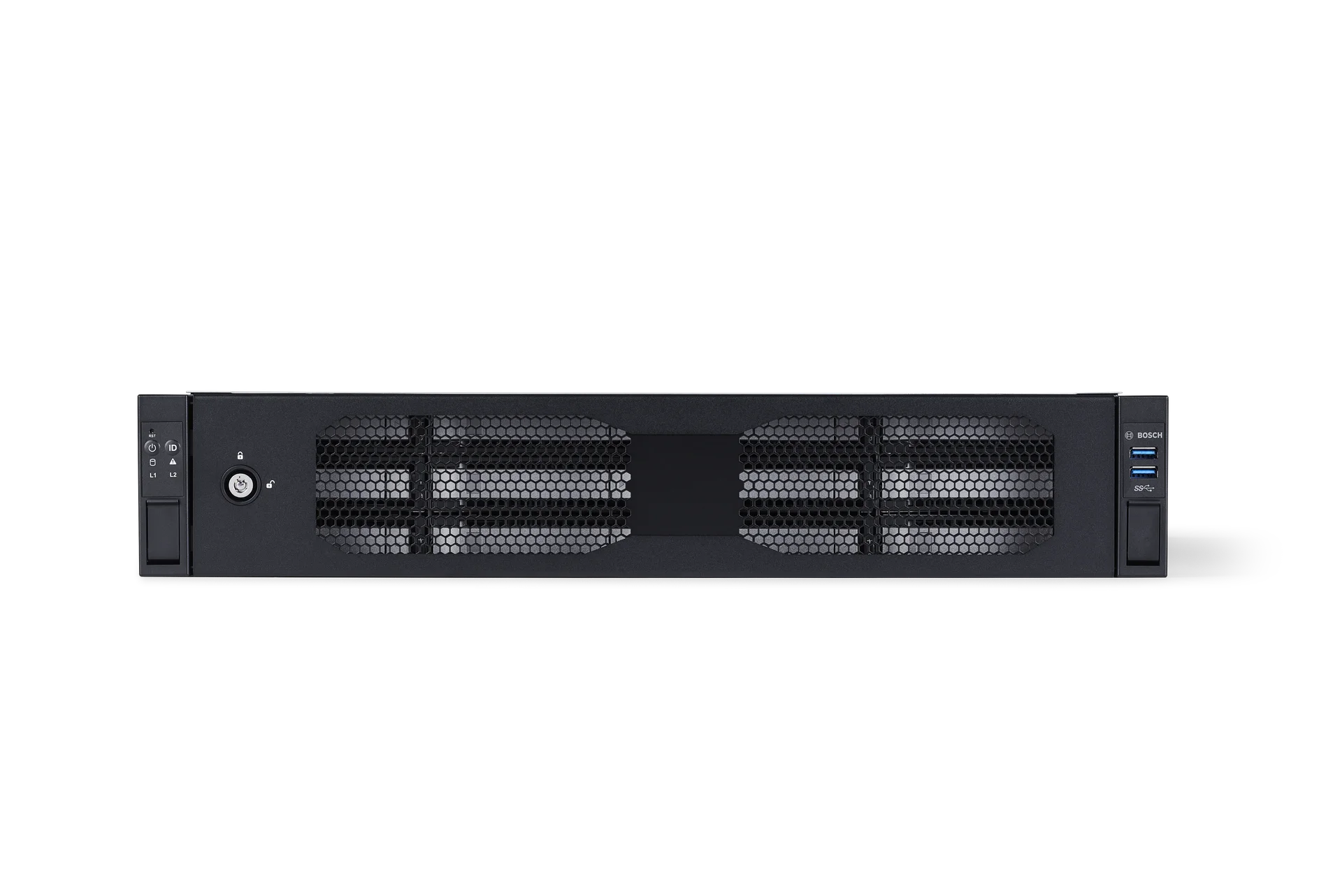

DIVAR IP all-in-one 7000 2U (gen 4)

DIVAR IP all-in-one 7000 2U (gen 4)

The DIVAR IP all-in-one 7000 2U (gen 4) is a secure, fully featured video recording and management appliance engineered for enterprise environments. With up to 216 B of pre-installed storage, it empowers IT and security teams with instant, real-time access to video and intelligent insights to ensure continuous operational clarity.

  • RAID-5 protected (standard configuration), all-in-one, fully featured BVMS‑based video recording and management solution for up to 256 channels

  • Out-of-the-box IP video recording with up to 216 TB (12 x 18 TB) storage capacity pre-installed

  • Robust, secure operation — instant real time access to video

  • BVMS‑based advanced user and alarm management

  • DIVAR IP System Manager for operation mode selection, software setup and upgrades

Product Overview

Secure video retention with RAID-5/ RAID-6 protection

Enterprise-rated, hot-swappable hard drives deliver up to 216 TB of secure storage to ensure critical footage remains protected and accessible.

Instant real-time video access anywhere

Dynamic Transcoding optimizes high-resolution streams for low-bandwidth connections, giving operators immediate visual clarity when making critical decisions.

Simplify deployment with centralized system management

The intuitive DIVAR IP System Manager guides IT teams through wizard-based setup, operation mode selection, and single-step software upgrades to minimize installation friction.

Accelerate response with intelligent alarm management

Operating on a fully featured BVMS platform, the appliance seamlessly integrates Intelligent Video Analytics and system-wide event monitoring to help teams understand context and act decisively.

Ensure maximum uptime with proactive monitoring

Secure connectivity to the Remote Portal enables IT teams to perform remote health diagnostics, inventory management, and updates from a single centralized interface.

Key Specifications

Key specifications
Form factor2U rack-mounted
BVMS licensingBVMS Plus
Max recording bandwidth 550 Mbps
Max IP camera channels256
Maximum number of HDDs12
Data storage No HDD ; 8 x 4TB ; 8 x 8TB ; 8 x 18TB ; 12X18TB
RAID supportRAID 5 , RAID 6 (optional)
Video outputs2 x HDMI
Management port1 x BMC port
Operating systemWindows Server IoT 2022 for Storage Standard

Frequently Asked Questions

Common questions about the DIVAR IP all-in-one 7000 2U (gen 4)

The system features a wizard-based setup and centralized configuration, allowing teams to begin recording after just a few simple steps. The DIVAR IP System Manager guides users through operation mode selection and software installation, significantly reducing setup time and training requirements.

Yes. The system utilizes Dynamic Transcoding technology, which decodes and re-encodes the data stream to a lower bit rate tailored to the available network connection. This ensures instant real-time access to smooth video, and when paused, an instant detail enhancement feature displays the full-resolution image.

Operating as a fully featured BVMS-based system, it seamlessly integrates with cameras equipped with Intelligent Video Analytics and IVA Pro. This allows operators to leverage advanced metadata, enabling real-time scene understanding, rapid forensic search, and automated alarm management across the entire security network.

The unit is equipped with enterprise-rated, hot-swappable SATA hard drives, providing up to 216 TB of pre-installed storage capacity. It features a RAID-5 protected standard configuration, ensuring reliable data retention and secure operation for up to 256 channels without requiring complex external storage architecture.

The device provides secure, transparent asset management through SNMP monitoring and integration with Remote System Management services. This enables centralized health monitoring, inventory management, and remote updates. Additionally, a discrete TPM 2.0 crypto coprocessor ensures robust data security aligned with stringent global compliance standards.
