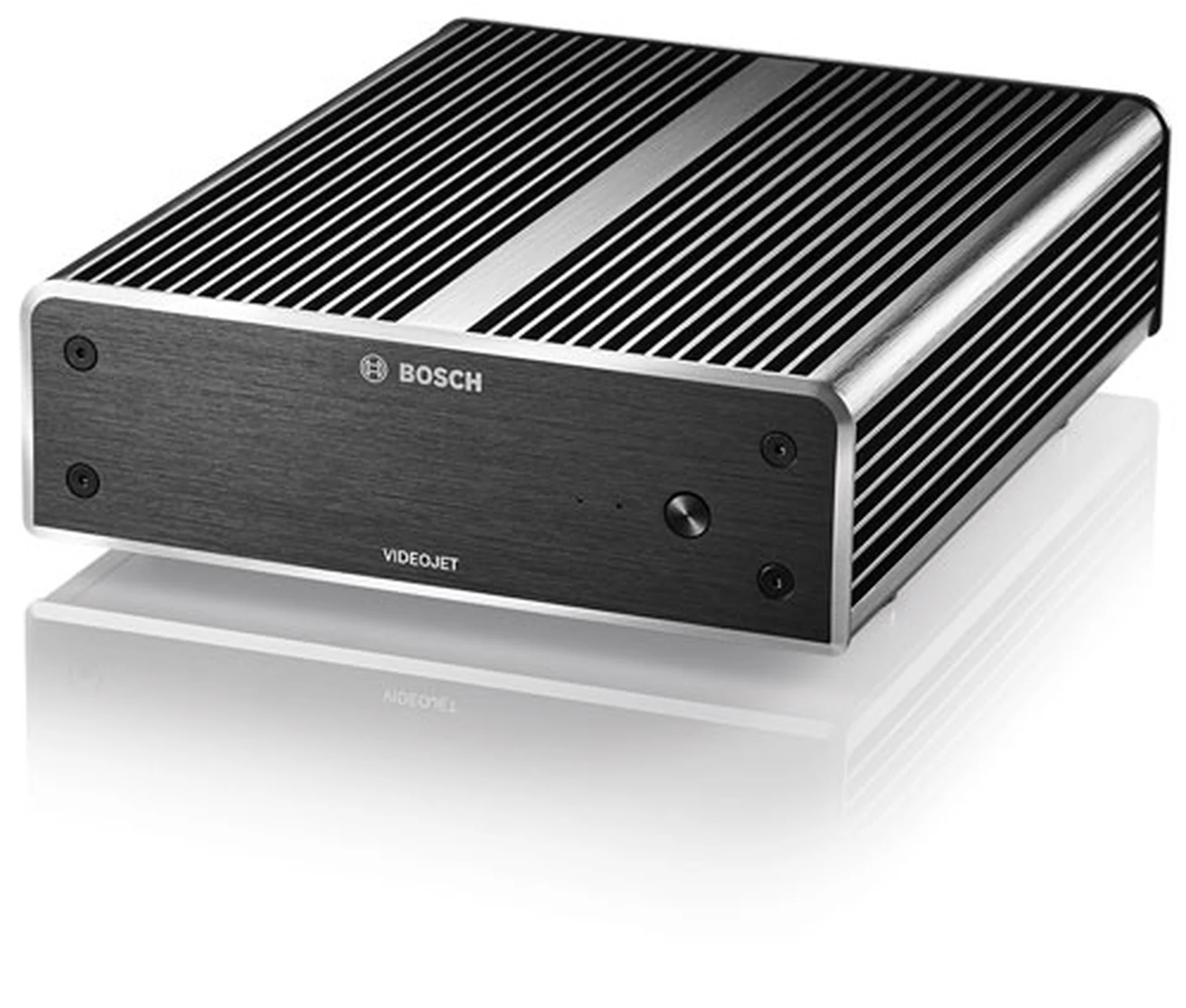

H.265 UHD decoder
The VIDEOJET decoder 7000 drives up to four 4K UHD monitors simultaneously, delivering clear, real-time awareness for critical viewing environments. With flexible layouts, intelligent metadata overlays, and robust malware resistance, it helps control room operators understand context and act confidently.
Commercial Type No: VJD-7533
HD, 4K UHD and MP decoding of H.264 and H.265 streams
Flexible monitor layouts
Directly drives up to four 4K UHD monitors
Displays VCA metadata overlays
Compact size and VESA mount
Product Overview
Maintain clarity across multiple displays
Drive up to four 4K UHD monitors simultaneously to ensure critical activity is visible in exceptional detail.
Understand context with metadata overlays
Display intelligent video analytics directly on the stream so operators can quickly identify and respond to tracked activity.
Adapt views to changing situations
Switch monitor layouts on the fly to optimize screen space and keep critical information front and center.
Maximize space in control rooms
Utilize a compact, fanless design with a VESA mount option to securely install the decoder behind monitors or on walls.
Ensure secure and trusted operation
Defend against network threats with embedded firewalls, AES encryption, and a tailored operating system designed for malware resistance.
Key Specifications
| Number of video outputs | Up to 4 simultaneously |
|---|---|
| Resolution | Resolution Resolution 1920 x 1080 (HD) at 60 Hz, 3840 x 2160 (UHD) at 30 & 60Hz |
| GOP Structure | I; IP; IBBP |
| Video Compression | H.264 (ISO/IEC 14496-10); H.265/HEVC |
| Audio compression and sampling rate | G.711 8 kHz; L16 16 kHz; AAC-LC 80kbps 16 kHz; AAC-LC 48kbps 16 kHz |
| Connector type | 2 x HDMI (2.0a), 2 x DisplayPort 1.2 (via USB-C) |
| Encryption | TLS 1.2; TLS 1.1; AES 256; AES 128 |
| Dimensions (H x W x D) | 47.3 x 150.6 x 186 mm |
| Dimensions VESA mount | 100 x 100 mm |
| Software compatibility | Bosch Configuration Manager; Bosch Video Management System |
Frequently Asked Questions
Common questions about the H.265 UHD decoder
The VIDEOJET decoder 7000 provides an HDMI and a DisplayPort output, capable of driving up to four 4K UHD monitors simultaneously. It automatically scales resources to distribute them over connected streams, ensuring operators experience the best possible performance and ultimate clarity on flat-screen monitor walls.
Yes, the decoder supports flexible monitor layouts that adapt automatically to optimally utilize available screen space in both landscape and portrait orientations. Layouts can be switched on the fly at any time during operation, initiated by the controlling video management system, to ensure teams maintain continuous situational awareness.
The VIDEOJET decoder 7000 is designed to display VCA metadata overlays directly on the video stream. This capability allows operators to see critical intelligent video analytics data—such as object tracking and classification—in real time, transforming video into clear, contextual understanding.
Yes, the device features a built-in IP Matrix that allows it to run as a stand-alone system. When paired with a connected PTZ keyboard, an operator can manage up to 256 cameras directly without requiring a PC or dedicated management system, simplifying deployment and reducing operational complexity.
The system is designed to be highly resistant to malware, running a tailored Microsoft Windows 10 IoT Enterprise LTSC operating system that limits transactions to operation and maintenance. With an embedded firewall, AES-encrypted payload channels, and an on-board Trusted Platform Module (TPM), it ensures secure, trusted performance.
