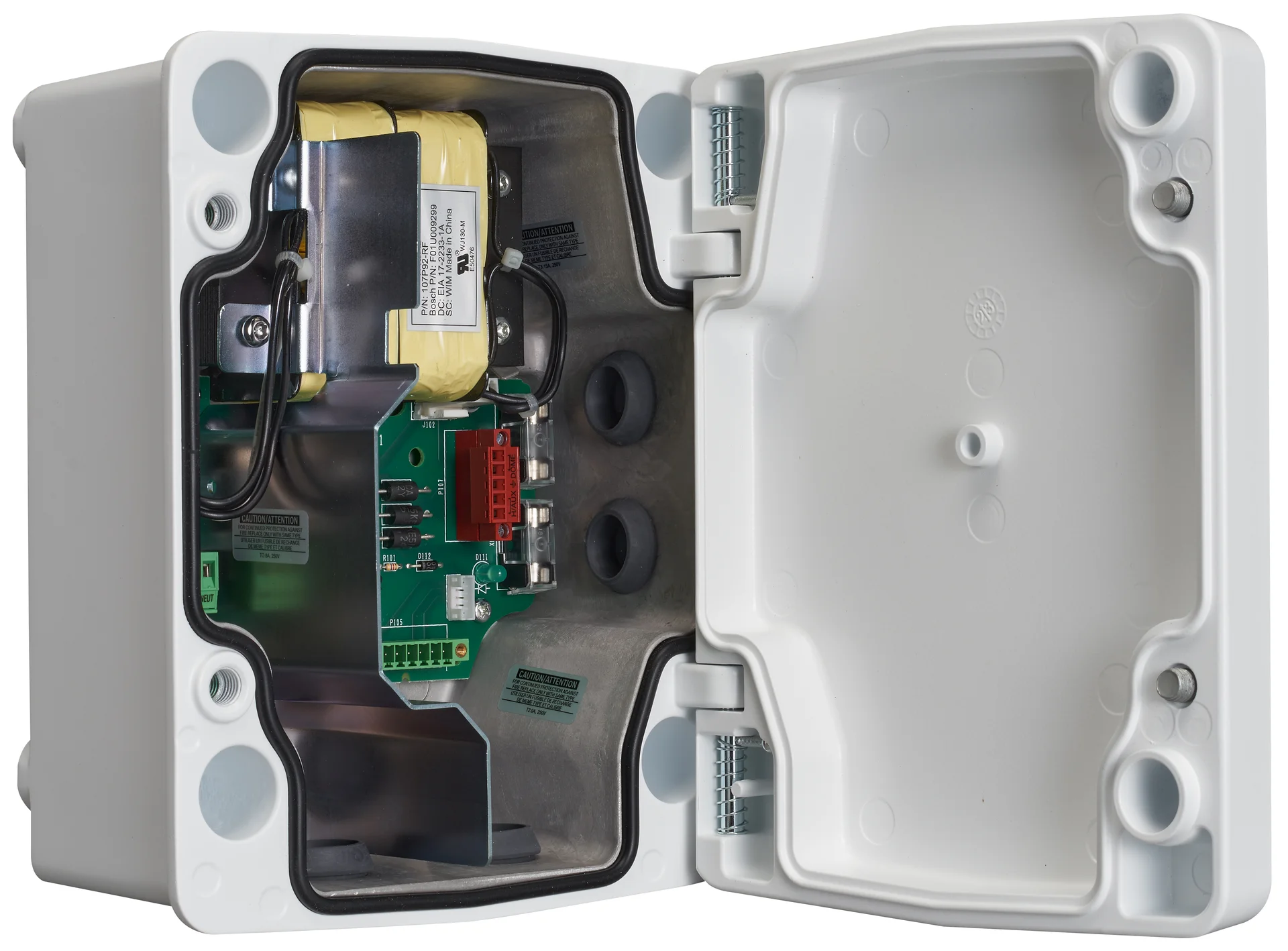

PSU, IR, 230VAC
The 230 VAC power supply unit delivers 24 VAC power for installations without PoE or those requiring redundant power. Engineered with a rugged, IP66 and IK10-rated aluminum enclosure for use in outdoor environments.
Commercial Type No: NDA-U-PSU2H
Aluminum enclosure rated to IP66 and UL Type 4X to prevent dust and water ingress
IK10 impact rating ensures enclosure integrity
230 VAC to 24 VAC transformer
For applications without PoE or for redundant power applications with PoE
Frequently Asked Questions
Common questions about the PSU, IR, 230VAC
This 230 VAC to 24 VAC transformer is designed to provide continuous power for outdoor security cameras. It is ideal for applications without PoE or for installations requiring redundant power to maintain uninterrupted visual intelligence.
The rugged cast solid aluminum enclosure is rated to IP66 and UL Type 4X standards, effectively preventing dust and water ingress. It is engineered to meet stringent power and electrical safety requirements in extreme environmental conditions, operating reliably in temperatures ranging from -76 °F to 140 °F (-60 °C to 60 °C).
Yes, the unique design features an IK10 impact rating, which ensures maximum enclosure integrity. This robust construction protects the power supply unit from vandalism and tampering events, safeguarding critical connections in high-risk areas.
The power supply unit can be mounted directly to a wall or other flat surface. It features multiple cable gland and conduit entry points that protect cables and simplify deployment. Optional pole and corner mounting accessories are also available to tailor the installation to your specific site requirements.
This 24 VAC power supply unit is specifically designed to support continuous, reliable operation for cameras with a 24VAC power input.
