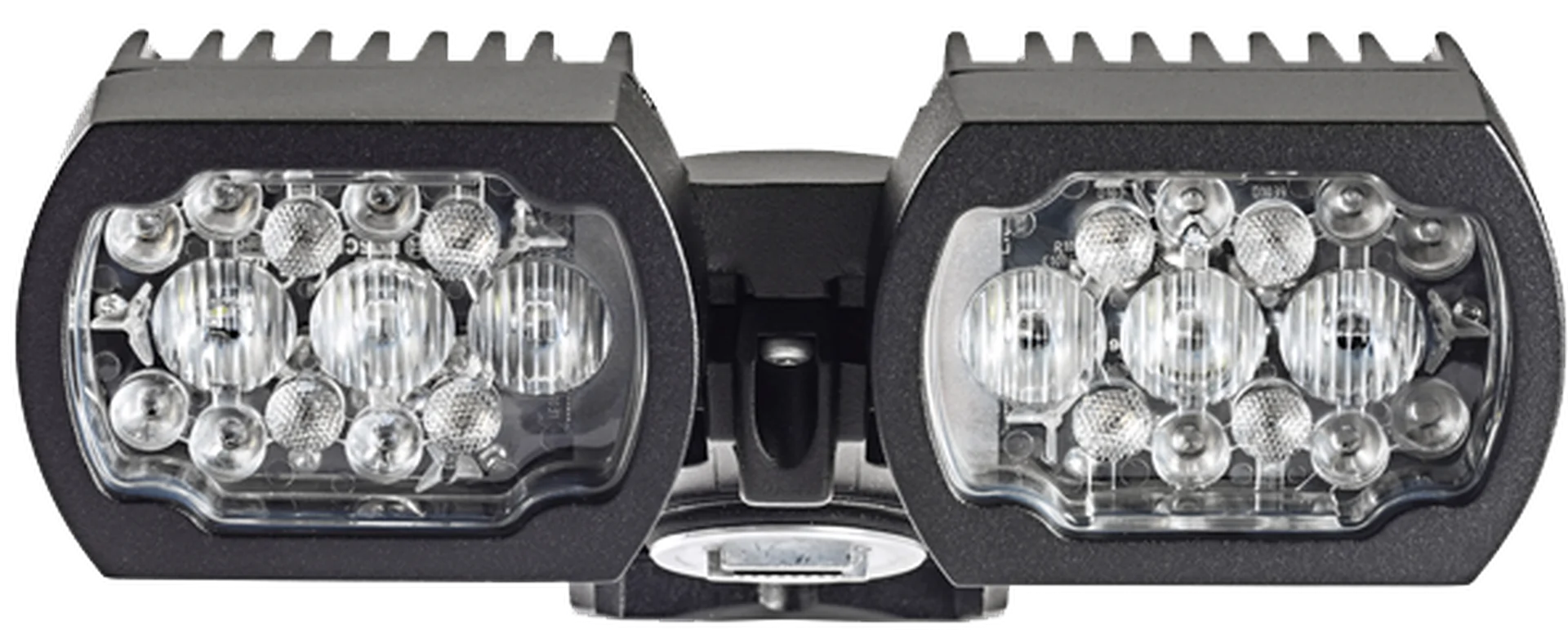

Illuminator, white-IR light, black for MIC IP
The white-IR light illuminator for MIC IP cameras enables continuous visibility in darkness. Combining dynamic infrared and white light LEDs, it automatically adapts to the camera's field of view for reliable clarity.
Commercial Type No: MIC-ILB-400
IR Light (850 nm/940 nm) + White light LEDs
Dynamic IR automatically adjusts the beam angle and intensity to match the camera’s field of view
Field-installable on MIC IP ultra 7100i and MIC IP starlight 7100i cameras only
Rugged housing design, with IP68/Type 6P ingress rating, matches colors of MIC IP cameras
Frequently Asked Questions
Common questions about the Illuminator, white-IR light, black for MIC IP
The illuminator features dynamic IR technology that automatically steers the infrared beam to match the camera’s field of view and zoom level. By adjusting beam intensity, it reduces overexposure and provides the clear, high-quality images required for reliable video analytics in total darkness.
Yes. White light mode allows operators to capture full scene details in color and can be used as a visual deterrent. To ensure safety, operators can set an automatic timeout or disable the white light functionality by sector, preventing hazardous situations such as distracting drivers on a highway.
Yes. Alongside 850 nm IR, the illuminator incorporates 940 nm LEDs that allow operators to illuminate near-range scenes with infrared light that human eyes cannot see. This enables continuous, covert visibility in pitch-dark scenes without alerting individuals in the monitored area.
The illuminator is designed for easy field installation exclusively on MIC IP ultra 7100i and MIC IP starlight 7100i cameras. It supports upright, inverted, or canted mounting orientations and draws power directly from the camera, eliminating the need for an additional power source.
Yes. The vandal-resistant design integrates tough polycarbonate windows attached to a durable aluminum body. It is exceptionally resistant to high levels of wind, shock, and vibration. With industry-leading IP68, Type 6P, and IK10 impact ratings, it ensures reliable operation in the harshest outdoor conditions.
