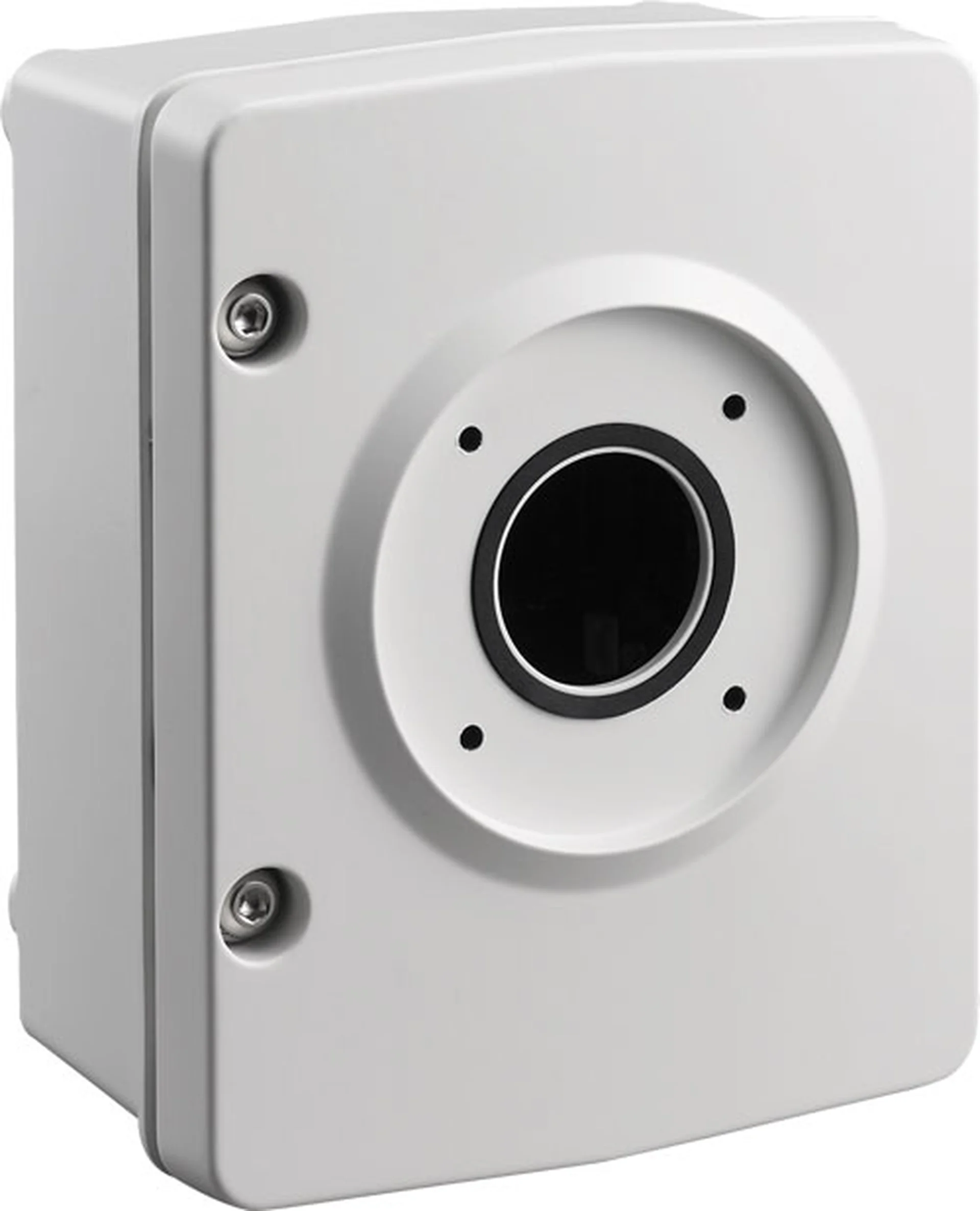

Surveillance cabinet 120VAC
The surveillance cabinet 120VAC delivers reliable power and connectivity for outdoor security applications. Featuring a modular, weather-resistant design, it integrates seamlessly into camera mounts, eliminating the need for separate junction boxes.
Commercial Type No: NDA-U-PA1
Complete power supply and connectivity solution suitable for outdoor use
120 VAC Input with 24 VAC / 100 W power output
Built-in surge protection to enhance system reliability
Seamlessly integrates within the camera mount eliminating the need for a separate junction box
Modular design for fast and easy installation
Weather resistant finish to maintain cosmetic appearance
Frequently Asked Questions
Common questions about the Surveillance cabinet 120VAC
The cabinet accepts a 120 VAC input and delivers a 24 VAC output up to 100 W. It is engineered to provide reliable power for outdoor security cameras in environments where Power over Ethernet (PoE) is not available or sufficient.
The cabinet integrates directly within the camera mount, effectively eliminating the need for a separate junction box. This streamlined approach reduces deployment time, minimizes hardware clutter, and maintains a clean, consistent aesthetic across multiple outdoor locations.
Engineered for extreme conditions, the cabinet features an IP66-rated aluminum alloy construction to prevent dust and water ingress. It also carries an IK10 impact resistance rating and complies with NEMA TS2 standards for vibration and shock, ensuring continuous operation in harsh weather.
Yes, the cabinet supports the integration of fiber optic kits. A media converter and Small Form-factor Pluggable (SFP) modules can be installed directly inside the enclosure, providing a seamless fiber optic connectivity solution for extended network ranges.
The cabinet comes ready for direct installation on walls or ceilings using compatible pendant mounts. By utilizing universal mounting accessories, system integrators can also adapt the cabinet for secure placement on poles or external corners, ensuring flexible deployment across complex sites.
