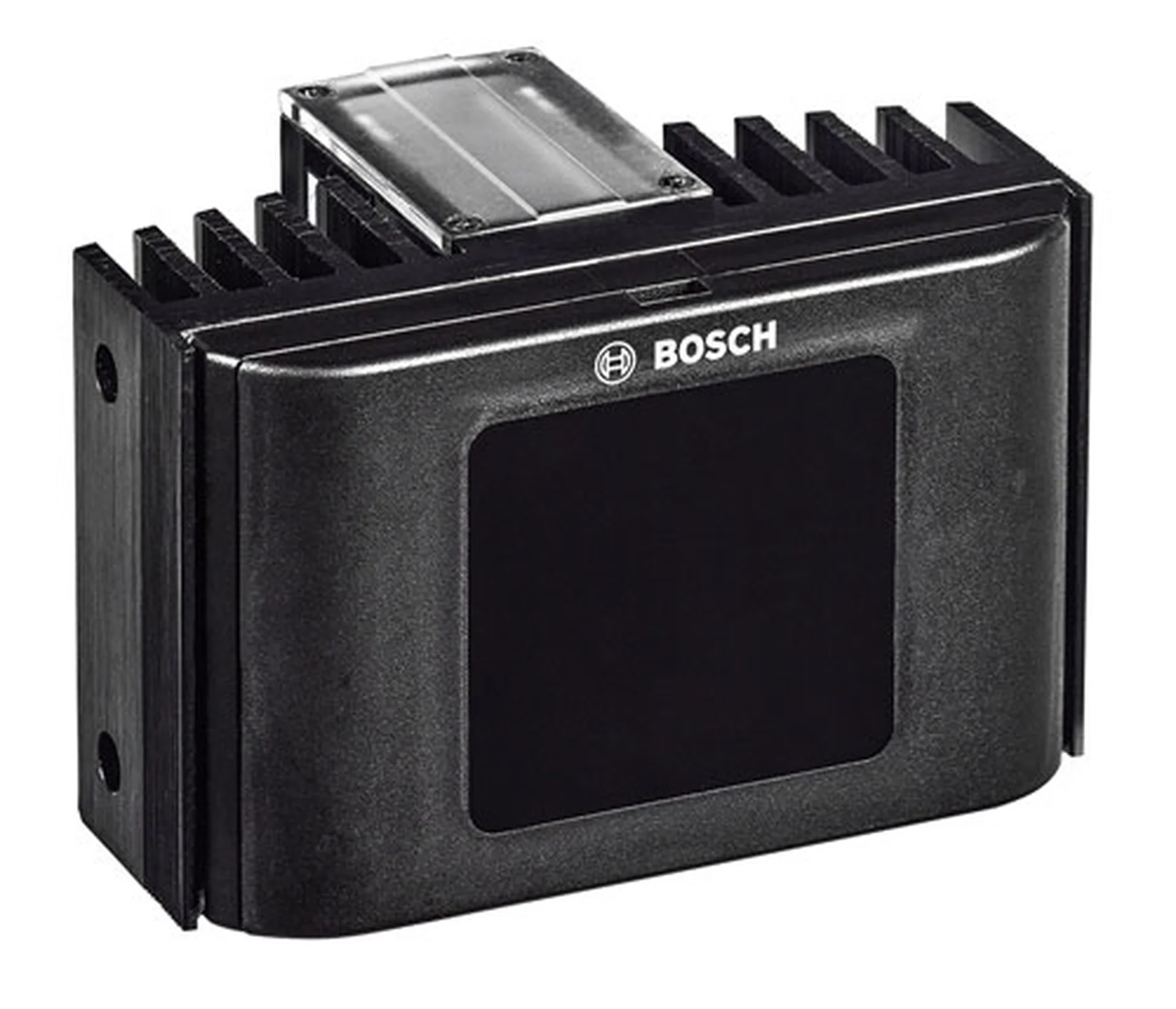

Illuminator, 850nm, short range

The 850nm short-range illuminator features interchangeable beam pattern diffusers that allow operators to match the infrared beam to the camera's field of view. By delivering accurately illuminated scenes with adjustable IR intensity, it significantly reduces video noise and bit rates. This ensures that video analytics, such as IVA Pro, receive the clear, high-contrast imaging required to accurately detect and classify objects in low-light conditions.

No. The front window is engineered with self-cleaning lens coating technology, which minimizes the accumulation of dirt, water, and debris. Combined with an IP66 and IK09 rated robust aluminum housing, this ensures continuous, reliable visibility and significantly reduces the need for manual maintenance, lowering the overall cost of ownership.

The illuminator includes an integrated adjustable photocell that automatically detects ambient light levels. Operators can adjust the sensitivity to ensure the infrared lighting activates exactly when needed. Additionally, it features a telemetry input and photocell output for external switching, allowing seamless integration with the broader security system to maintain uninterrupted awareness.

Designed for flexible and cost-effective deployment, the illuminator can be powered directly from any 12 to 32 VDC supply. Its energy-efficient, surface-mount high-power LEDs deliver maximum illumination with reduced power consumption. Furthermore, easy access to power and photocell adjustments facilitates quick, straightforward installation without complicating the deployment process.

Yes. Advanced electronic control circuitry delivers improved thermal management, and a built-in pressure equalization valve prevents thermal expansion and pressure cycling. This allows the illuminator to maintain consistent, reliable performance in extreme environments, with an operating temperature range of -50 degrees Celsius to 50 degrees Celsius.
