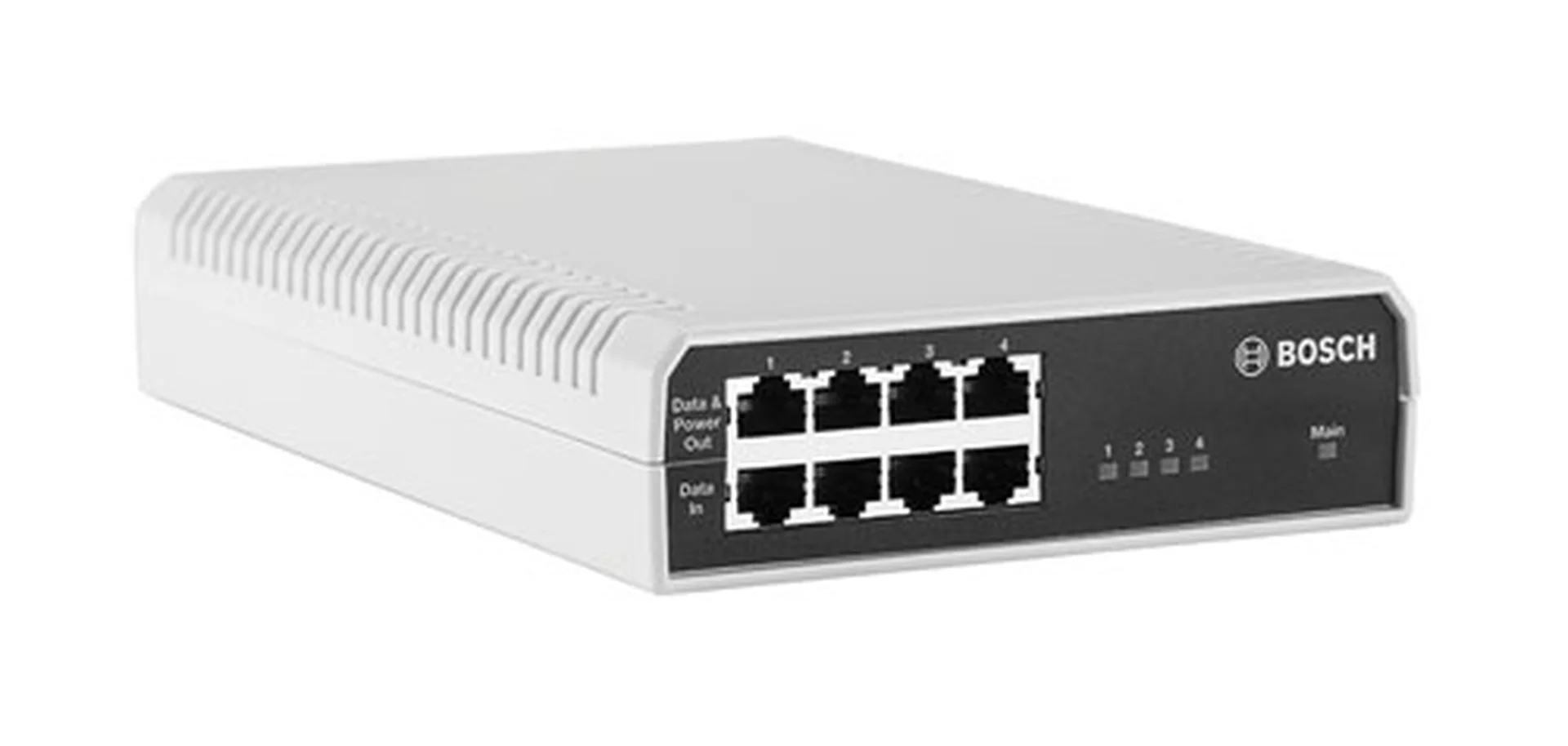

Midspan, 4 port x 15W, AC in
This midspan injector simplifies security deployments by delivering power and high-speed data to four cameras through a single cable. A compact, cost-effective solution to simplify power supply.
Commercial Type No: NPD-5004-POE
Makes PoE cameras easy to install
Allows one-wire connection
Reduces power supply requirements
Compact and cost effective solution
Supplies up to 15.4 W per port
Frequently Asked Questions
Common questions about the Midspan, 4 port x 15W, AC in
The midspan injector enables a one-wire connection, delivering both reliable power and high-speed data through a single Ethernet cable. This approach eliminates the need for separate power supplies at the camera location, reducing installation friction and lowering overall deployment costs.
The injector converts AC input power to a +48 VDC supply, delivering up to 15.4 W per port. This ensures consistent, reliable performance for up to four individual PoE-enabled cameras without requiring localized power sources.
Yes, the unit supports 10/100/1000 Mbps pass-through data rates. This ensures that high-resolution video streams and real-time Intelligent Video Analytics metadata are transmitted efficiently without interruption or network bottlenecks.
Designed as a compact and cost-effective solution, the unit can be easily mounted on a shelf, wall, or ceiling. Its adaptable form factor makes it ideal for enhancing existing Ethernet infrastructure in IT closets or environments with limited space.
The unit complies with the IEEE 802.3af standard for Power-over-Ethernet devices. It also meets rigorous global safety and regulatory certifications, including UL, CE, and FCC standards, ensuring trusted and reliable operation across diverse security deployments.
