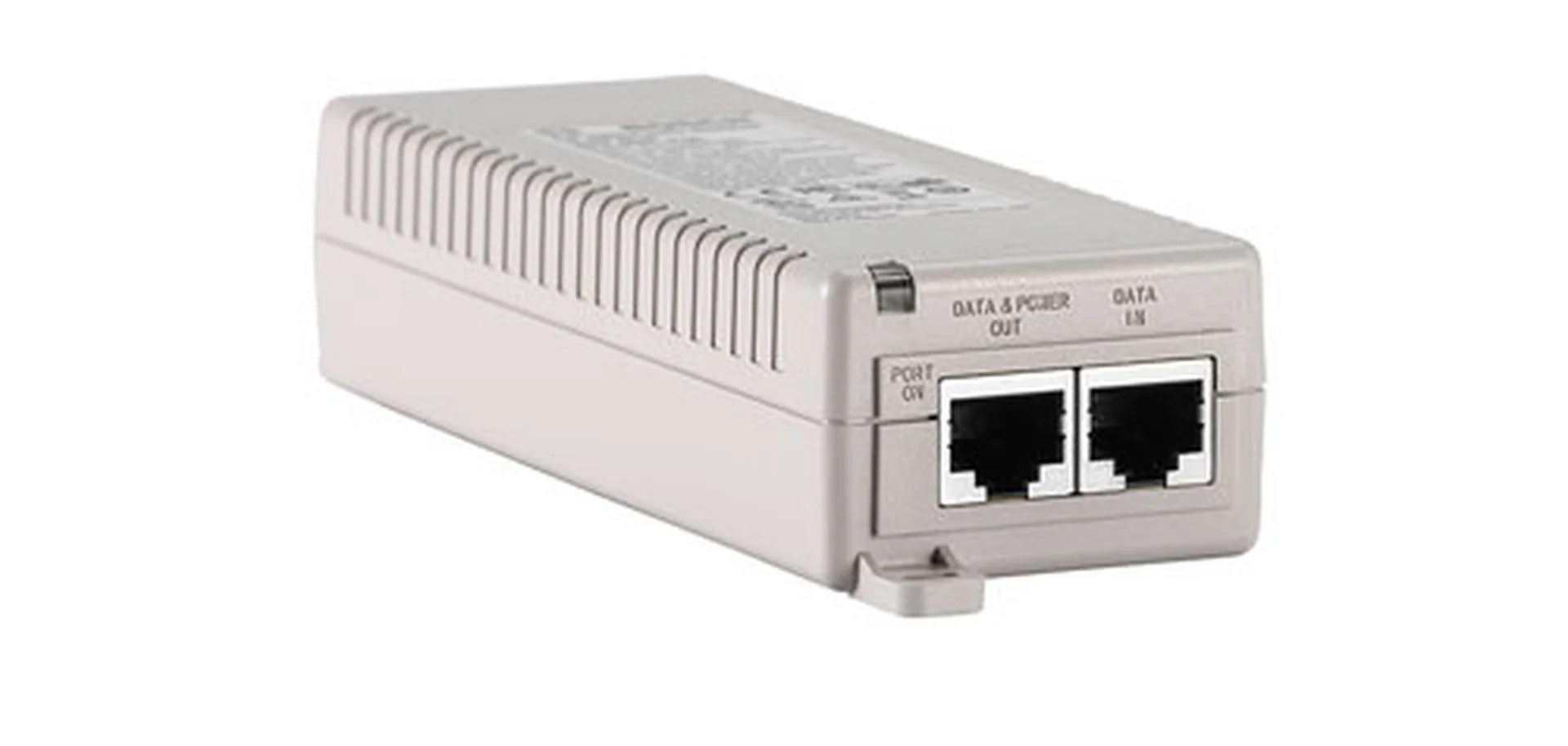

Midspan, 15W, single port, AC in
The 15W single-port midspan simplifies security deployments by delivering power and data through a single Ethernet connection. This compact, cost-effective injector reduces power supply requirements, enabling fast and easy installation.
Commercial Type No: NPD-5001-POE
Makes PoE cameras easy to install
Allows one-wire connection
Reduces power supply requirements
Compact and cost effective solution
Supplies up to 15.4 W per port
Frequently Asked Questions
Common questions about the Midspan, 15W, single port, AC in
The device converts AC input power to a +48 VDC supply, delivering up to 15.4 watts per port. This ensures reliable, continuous operation for compatible PoE-enabled security cameras.
Designed as a compact and cost-effective solution, the unit can be easily mounted on a shelf, wall, or ceiling. This flexibility allows integrators to adapt to various infrastructure constraints with minimal friction.
Yes, the midspan supports pass-through data rates of 10/100/1000 Mbps. This high-speed capacity ensures that rich video data and real-time metadata from intelligent video analytics are transmitted seamlessly and without interruption.
The unit is fully compliant with the IEEE 802.3af Power-over-Ethernet standard. This ensures dependable performance and seamless integration when paired with standard PoE cameras, helping maintain uninterrupted visual intelligence across your environment.
The injector enables a straightforward one-wire connection, delivering both power and high-speed data over a single Ethernet cable. This eliminates the need for separate electrical wiring at the camera location, reducing overall power supply requirements and installation time.
