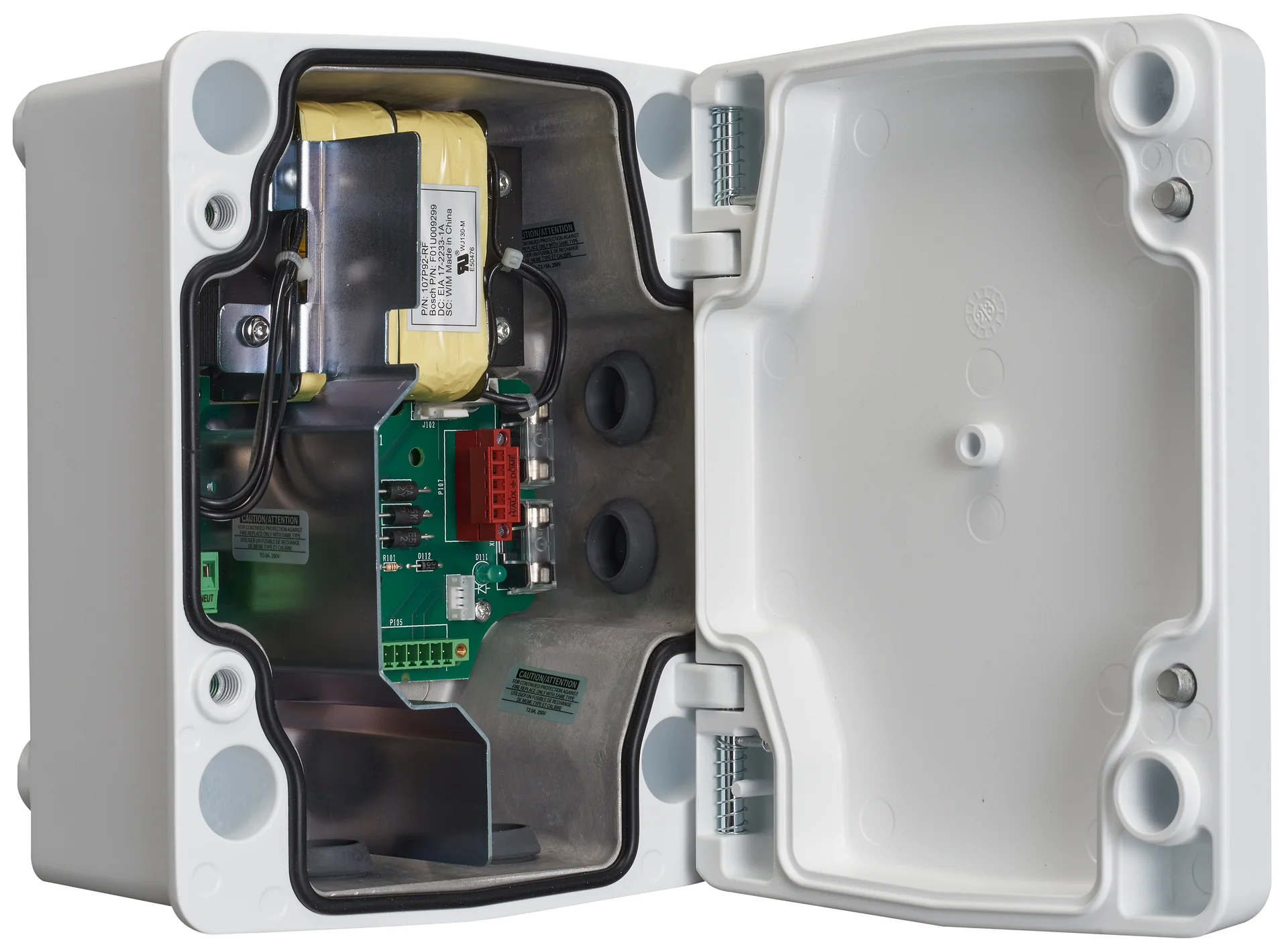

PSU, IR, 230VAC
This power supply unit delivers reliable, continuous power for outdoor cameras. Featuring an IP66 and IK10-rated aluminum enclosure, it withstands extreme weather and tampering, making it ideal for non-PoE or redundant power applications.
Commercial Type No: NDA-U-PSU2H
Aluminum enclosure rated to IP66 and UL Type 4X to prevent dust and water ingress
IK10 impact rating ensures enclosure integrity
230 VAC to 24 VAC transformer
For applications without PoE or for redundant power applications with PoE
Frequently Asked Questions
Common questions about the PSU, IR, 230VAC
The PSU, IR, 230VAC functions as a 230 VAC to 24 VAC transformer. It is designed to provide reliable power for outdoor security cameras, specifically supporting applications without Power over Ethernet (PoE) or serving as a redundant power source for PoE installations.
The unit features a cast solid aluminum enclosure rated to IP66 and UL Type 4X standards. This design prevents dust and water ingress, ensuring the power supply meets electrical safety requirements in extreme weather conditions with operating temperatures ranging from -76 F to 140 F (-60 C to 60 C).
Yes, the unique design and cast aluminum construction provide an IK10 impact rating. This high level of impact protection ensures enclosure integrity, safeguarding the internal power supply components from tampering events and vandalism in challenging public or industrial environments.
The power supply box can be mounted directly to a wall or other flat surface. Additionally, optional pole and corner mounting accessories are available, allowing system integrators to tailor the installation to specific site requirements and simplify deployment.
The unit includes multiple cable gland and conduit entry points that protect wiring and streamline the connection process. This practical design removes installation friction, allowing technicians to secure cables effectively while maintaining the enclosure's weather-resistant integrity.
