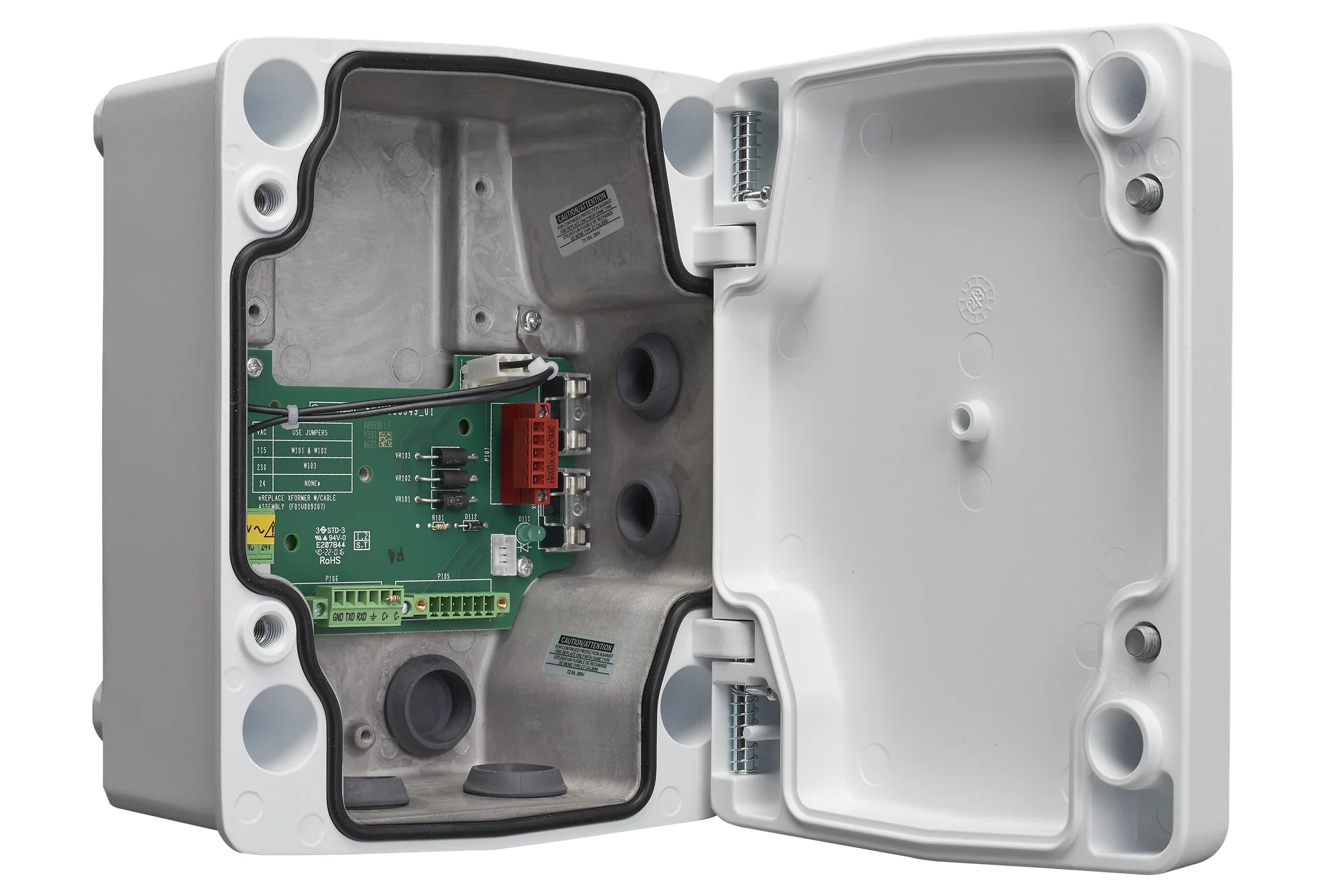

PSU, IR, 24VAC
This power supply unit delivers reliable, continuous power for outdoor cameras. Featuring an IP66 and IK10-rated aluminum enclosure, it withstands extreme weather and tampering, making it ideal for non-PoE or redundant power applications.
Commercial Type No: NDA-U-PSU0H
Aluminum enclosure rated to IP66 and UL Type 4X to prevent dust and water ingress
IK10 impact rating ensures enclosure integrity
Direct 24 VAC power input without a transformer
For applications without PoE or for redundant power applications with PoE
Frequently Asked Questions
Common questions about the PSU, IR, 24VAC
The power supply features a cast solid aluminum enclosure rated to IP66 and UL Type 4X standards, preventing dust and water ingress. It operates reliably in extreme temperatures ranging from -60 °C to 60 °C (-76 °F to 140 °F), ensuring continuous power for outdoor security cameras in severe weather conditions.
Designed for high-risk and challenging locations, the unit carries an IK10 impact rating. This robust structural integrity protects critical power connections from physical tampering and vandalism, ensuring your security system remains operational when it matters most.
This unit is ideal for security installations that lack Power over Ethernet (PoE) infrastructure or require a direct 24 VAC power input. It is also highly effective for providing redundant power in PoE-enabled setups, ensuring continuous video capture if the primary network power fails.
The enclosure mounts directly to a wall or flat surface, with optional pole and corner accessories available to tailor the setup to specific environments. Multiple cable gland and conduit entry points protect wiring and remove friction during installation, helping system integrators deploy reliable security faster.
The 24 VAC power supply is universal but can be use with cameras like the MIC or AUTODOME 7100i IR. By delivering consistent, reliable power, it ensures operation without interruption.
