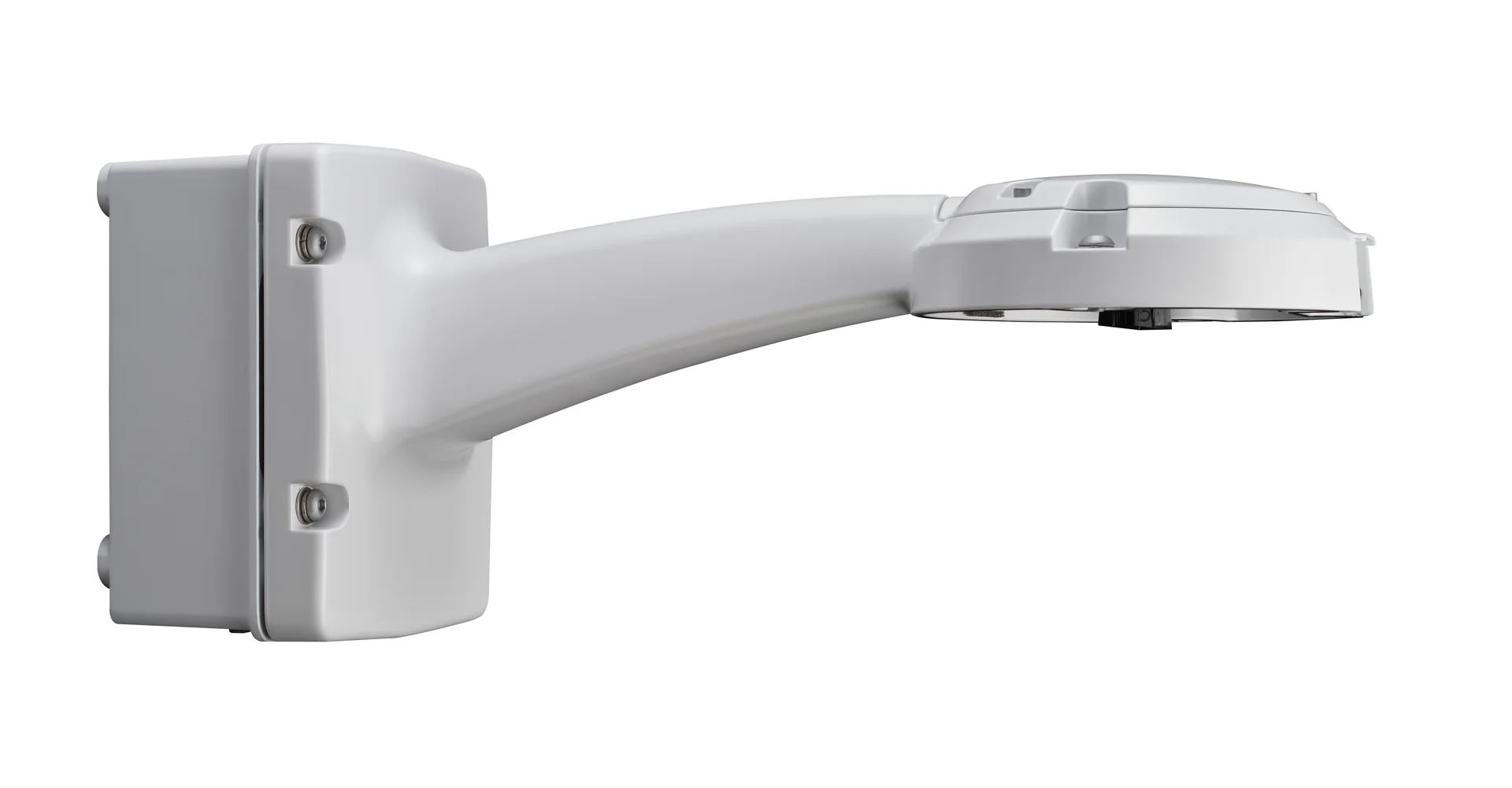

Wall arm & PSU for AUTODOME 7100i fiber 24VAC
This wall arm and power supply unit delivers reliable power for AUTODOME 7100i cameras in extreme environments. Designed for installations lacking PoE or requiring redundant power, this rugged aluminum enclosure simplifies deployment and protects critical connections.
Commercial Type No: NDA-7100-PA0HF
Aluminum enclosure rated to IP66 to prevent dust and water ingress
IK10 impact rating ensures enclosure integrity
Direct 24 VAC power input without a transformer
Supplies a direct fiber connection to the camera
For applications without PoE or for redundant power applications with PoE
Frequently Asked Questions
Common questions about the Wall arm & PSU for AUTODOME 7100i fiber 24VAC
It provides a direct 24 VAC power input without a transformer and supplies a direct fiber connection to the camera. It is engineered specifically to support AUTODOME 7100i and AUTODOME 7100i IR cameras in applications without Power over Ethernet (PoE) or for redundant power setups alongside PoE.
The unit supports optional fiber SFP modules to provide a direct fiber connection for video and data transmission. This capability allows the system to communicate beyond the standard 100-meter (328-foot) distance limit of standard Cat5e or Cat6 Ethernet cables, making it ideal for monitoring expansive perimeters and large sites.
Yes, it features a rugged aluminum enclosure rated to IP66 standards to prevent dust and water ingress. Additionally, it carries an IK10 impact rating that ensures enclosure integrity, protecting the internal power supply components from vandalism and tampering events in unmonitored locations.
Built for extreme environmental conditions, the unit operates reliably in severe temperatures ranging from -60 degrees Celsius to 60 degrees Celsius (-76 degrees Fahrenheit to 140 degrees Fahrenheit).
The hardware can be mounted directly to a wall or other flat surface and features multiple cable gland and conduit entry points to protect wiring and streamline the installation process. Optional pole and corner mounting accessories are also available to help integrators tailor the setup to specific site requirements.
