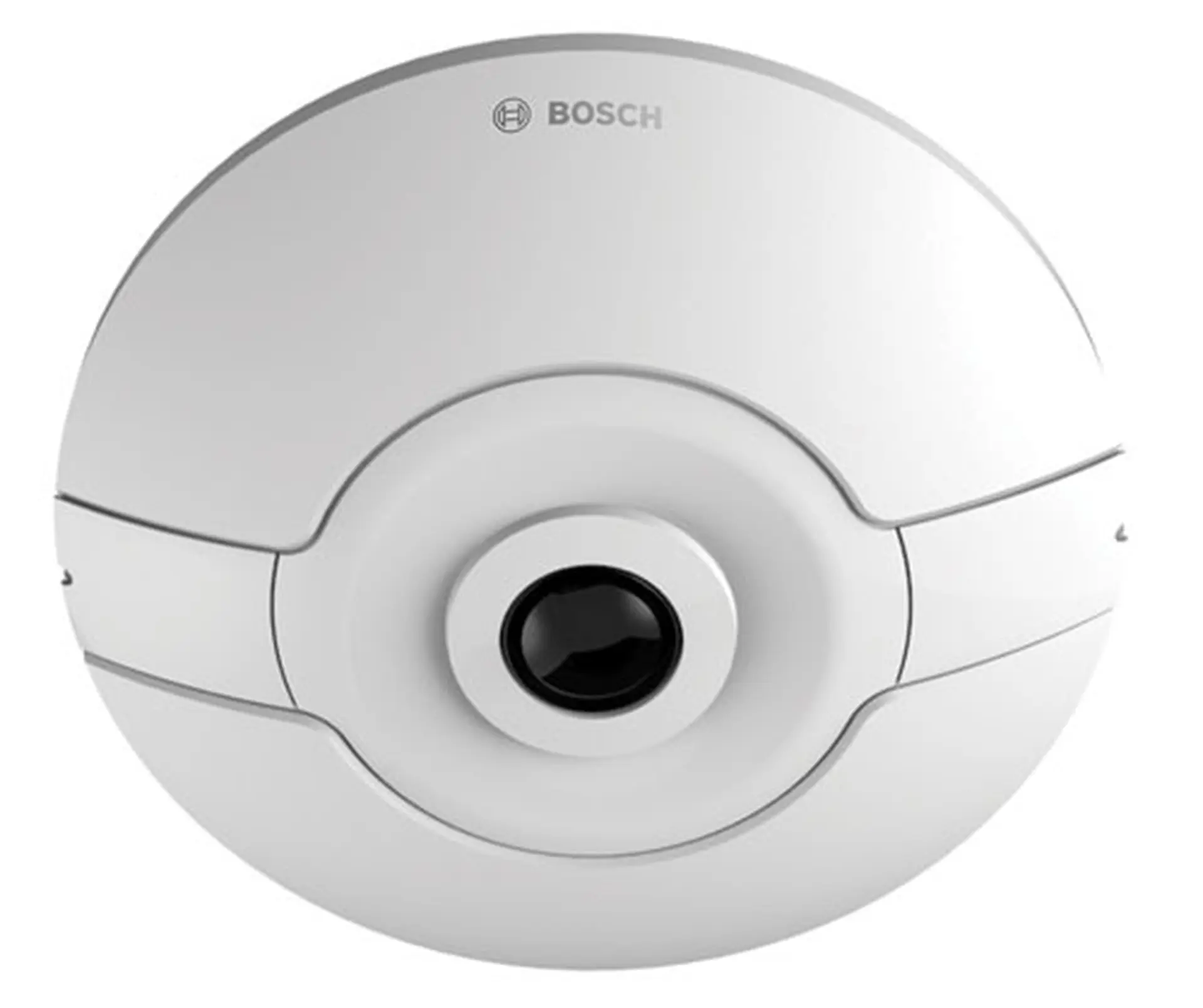

FLEXIDOME IP panoramic 7000 MP
Designed for unobtrusive indoor monitoring, the FLEXIDOME IP panoramic 7000 MP eliminates blind spots with continuous 360-degree visibility and built-in analytics.
12MP / 30 fps sensor for fine details with smooth motion
Edge or client-side dewarping for easy integration
Intelligent Video Analytics on full panoramic overview
Discreet and aesthetic, low-profile design
Easy twist-click installation
Product Overview
Capture exceptional detail with smooth motion
A 12MP sensor operating at 30 frames per second ensures clear identification and fluid tracking of fast-moving objects across large areas.
Simplify integration with built-in edge dewarping
In-camera processing delivers distortion-free video streams directly to your management system, reducing bandwidth and server processing requirements.
Gain real-time insight across the entire scene
Built-in analytics monitors the full panoramic view continuously, alerting operators to critical events even when they are actively reviewing a specific area.
Maintain aesthetics with discreet, low-profile design
The unobtrusive housing blends seamlessly into architectural environments, providing comprehensive visibility without drawing unwanted attention.
Accelerate deployment with twist-click installation
An intuitive mounting design significantly reduces installation time, minimizing facility disruption and lowering overall project costs.
Key Specifications
| Sensor type | 1/2.3 inch CMOS |
|---|---|
| Resolution | 12MP (180°) ; 7MP (360°) |
| Low light technology | Standard CMOS |
| WDR technology | HDR (92 dB) |
| Frame rate (fps) | 1 – 30 fps |
| Lens focal length (mm) | 1.6 – 2.1 mm (fixed) |
| Lens zoom (x) | E-PTZ (digital) |
| Horizontal field of view (°) | 180° or 360° |
| Video compression | H.264 / AVC; H.265 / HEVC; M-JPEG |
| IP rating | IP66 |
| Impact protection | IK10 |
| Operating temperature | -20 °C – 40 °C (-4 °F – 104 °F) |
| Analytics (built-in) | Essential Video Analytics |
Frequently Asked Questions
Common questions about the FLEXIDOME IP panoramic 7000 MP
The camera uses a 12MP sensor operating at 30 frames per second to capture fine details and smooth motion across a complete 360-degree overview. This high-resolution imaging ensures operators can clearly identify objects and individuals even in expansive environments.
Edge dewarping processes the distorted circular image directly within the camera, transforming it into multiple standard, distortion-free video streams. This reduces the processing load on the video management system and ensures seamless integration with third-party software.
Yes, the built-in analytics operates on the full panoramic overview. It continuously monitors the entire field of view for critical events, providing real-time alerts and actionable insights even when operators are actively focused on a specific dewarped region.
The camera features a low-profile, aesthetic design that blends naturally into indoor environments. This makes it ideal for locations like museums, retail stores, and commercial buildings where obtrusive equipment would disrupt the architectural design.
The camera is designed with a unique twist-click installation mechanism that significantly reduces setup time. This intuitive mounting process minimizes operational disruption and allows system integrators to deploy devices quickly and efficiently.
