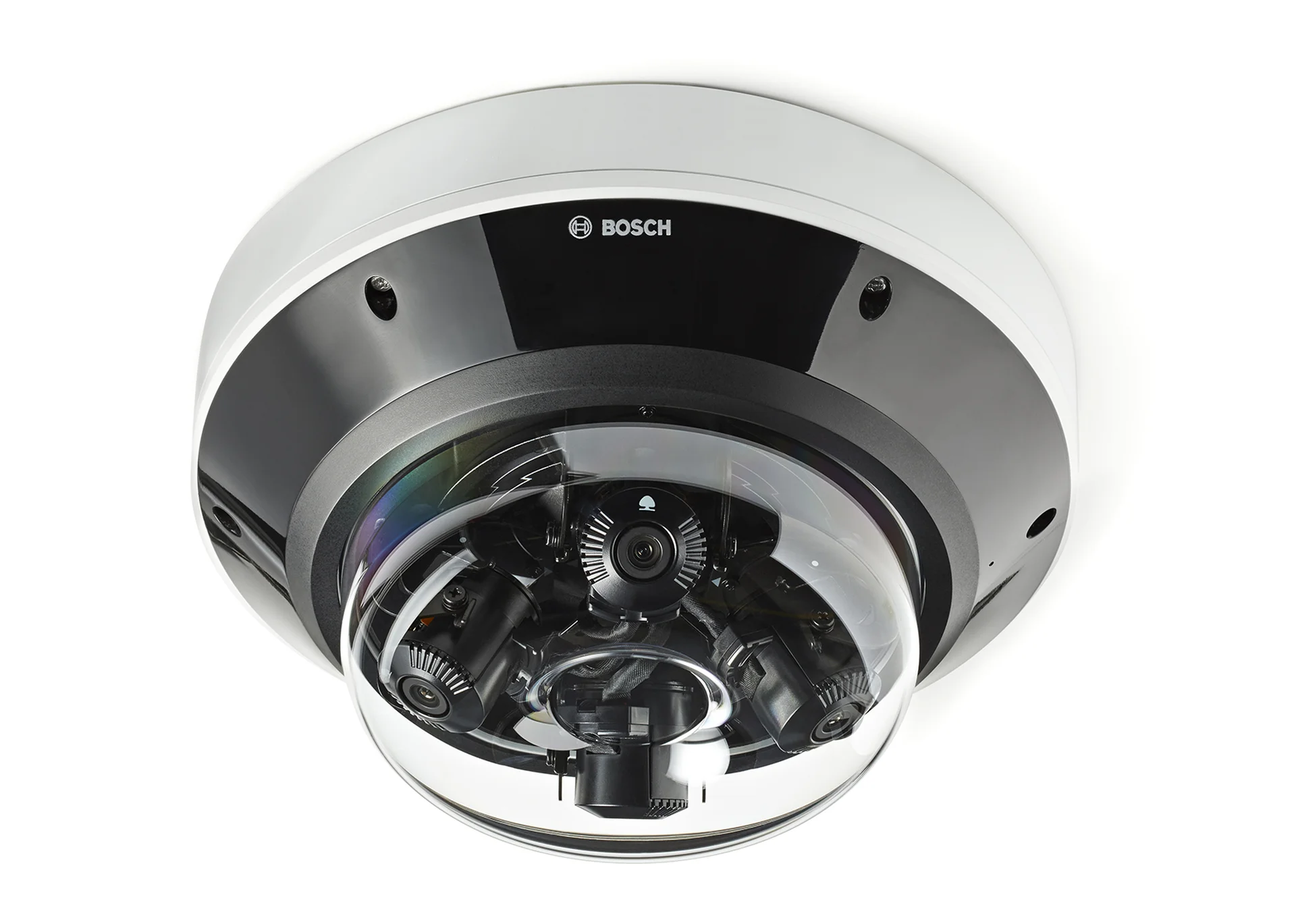

Fixed dome 12MP 3.7-7.7mm IP66 IR
The FLEXIDOME multi 7000i IR family provides four independently adjustable views in a single camera, enabling wide-area coverage while reducing installation and ownership costs. Equipped with built-in IVA Pro analytics, and 360-degree infrared illumination it delivers intelligent detection, real-time alerts, and enhanced situational awareness making it ideal for traffic intersections, building corners, and other demanding surveillance environments.
Commercial Type No: NDM-7702-AL
Four 3 MP imagers at 30 fps in one camera on a single IP address
Easy and flexible installation with four motorized zoom/focus lenses
High Dynamic Range (HDR) to see every detail in both bright and dark areas of the scene
IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested
Integrated surround IR illumination up to 30 m distance for pitch dark scenes
Product Overview
Expand coverage with fewer installed devices
Capture four independent, high-resolution views from a single IP address, significantly reducing installation time, cabling, and licensing costs.
Detect critical events with deep-learning analytics
Built-in IVA Pro Perimeter ignores environmental noise like rain or moving trees to reliably detect and classify people and vehicles in real time.
Maintain clear visibility in total darkness
Integrated 360-degree infrared illumination reveals crucial details up to 30 meters away, ensuring continuous awareness when lighting fails.
Easy and flexible remote adjustments
Four motorized zoom and focus lenses allow teams to easily adjust the viewing angle without physically climbing to the device.
Secure by design
Ensure trusted operation in mission-critical environments with hardware-based security, advanced encryption, and end-to-end authentication.
Key Specifications
| Resolution | 12MP |
| WDR technology | HDR |
| Frame rate (fps) | 1-30 fps |
| Lens focal length (mm) | 3.7-7.7mm |
| Video compression | H.264 / AVC ; H.265 / HEVC ; M-JPEG |
| IP rating | IP66 and NEMA Type 4X |
| Impact protection | IK10 |
| Operating temperature | -50 °C to +55 °C (-58 °F to +131 °F) |
| IR illumination range | 30 m (98 ft) |
| Analytics (built-in) | IVA Pro Buildings; IVA Pro Perimeter |
Frequently Asked Questions
Common questions about the Fixed dome 12MP 3.7-7.7mm IP66 IR
The camera features four independent 3-megapixel imagers operating at 30 fps, equipped with motorized zoom and focus lenses to provide surround coverage from a single device. This design streamlines deployment by requiring only one cable, one IP address, and a single video management software (VMS) license, significantly reducing installation time and lowering overall costs.
The FLEXIDOME multi 7000i IR utilizes High Dynamic Range (HDR) to capture distinct details in both the brightest highlights and darkest shadows of the same scene. Additionally, integrated surround infrared (IR) illumination ensures crisp, reliable video capture up to 30 meters away, even in pitch-dark environments.
The camera comes pre-installed with Intelligent Video Analytics Pro (IVA Pro) Buildings and IVA Pro Perimeter. These advanced, deep-learning based applications provide highly reliable detection and tracking of persons and vehicles. They are extremely resistant to false triggers caused by environmental factors like rain, snow, moving trees, and shadows, ensuring accurate alerts in scenes ranging from sterile zones to crowded areas.
The FLEXIDOME multi 7000i IR incorporates a built-in Secure Element (SE) with Trusted Platform Module (TPM) functionality to guarantee the highest levels of data security. It supports full end-to-end encryption, 802.1x network authentication, and RSA encryption key lengths up to 4096 bits. The camera also includes a pre-installed origin device certificate for authenticated and secure access.
Yes, the camera features a robust mechanical design rated to IP66 and IK10 standards, safeguarding the device against rain, dust, and vandalism. It operates reliably in a wide ambient temperature range from -50 °C up to +55 °C (-58 °F up to 131 °F), making it an ideal intelligence-first solution for demanding outdoor monitoring applications.
