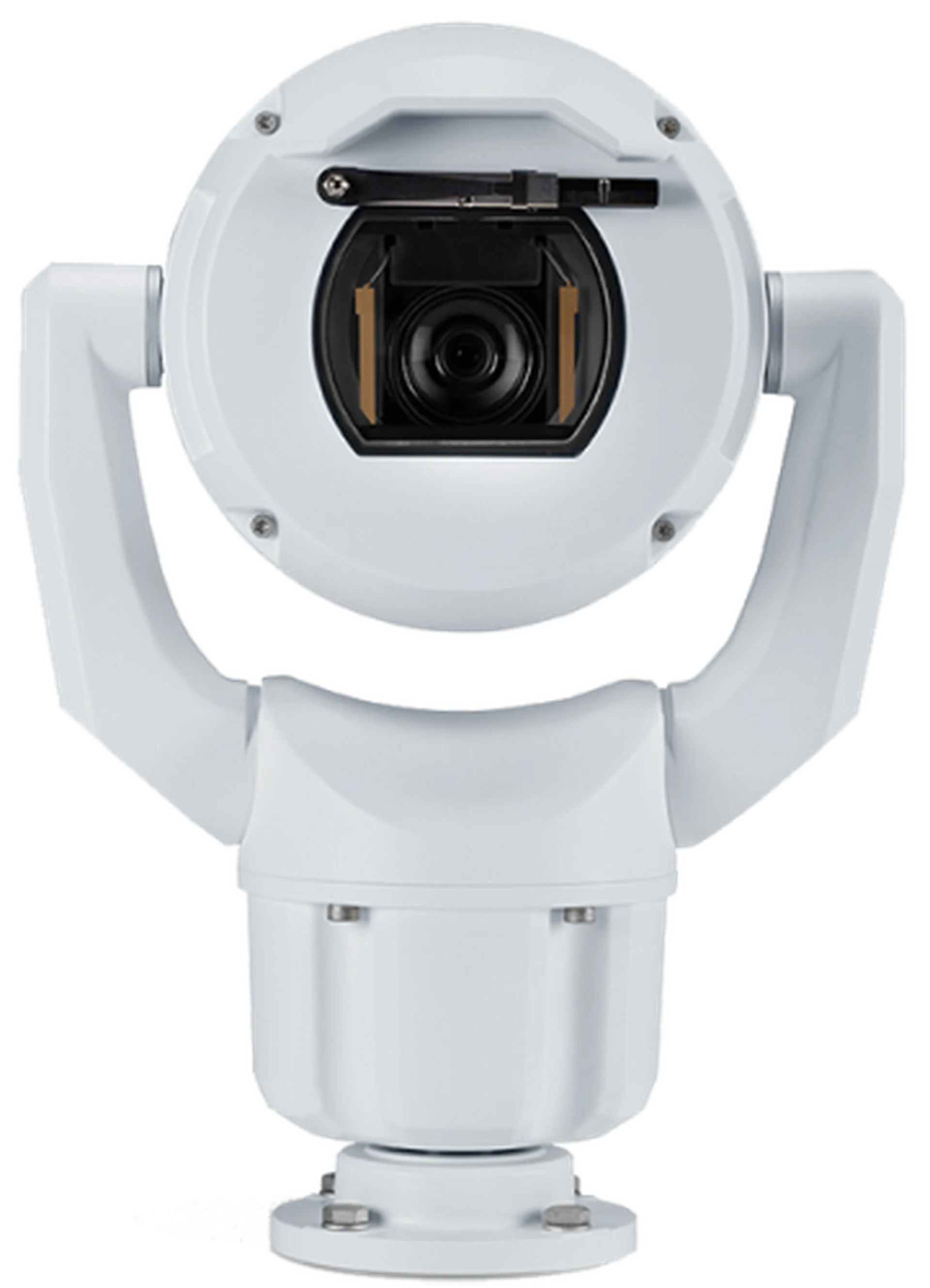

PTZ 8MP 12x IP68 enhanced white
IQSIGHT's MIC IP ultra 7100i family are ruggedized PTZ cameras offering unmatched imaging and reliability, with 4K visibility @ 30fps, 12x zoom and Optical Image Stabilization (OIS). Built for critical infrastructure and traffic monitoring, it combines exceptional weather resilience with intelligent tracking to help operators maintain continuous situational awareness.
Commercial Type No: MIC-7504-Z12WR
UHD “4K” resolution (3840 x 2160 pixels) @ 30fps, 12x zoom with Optical Image Stabilization (OIS)
Exceptional strength and ruggedness for any outdoor application including traffic monitoring (bridges, tunnels, or highways), perimeter protection, city surveillance, and mining
Built-in Camera Trainer to train the camera to recognize user-specified target objects, such as moving and non-moving objects, to alert operators of unusual scene activity
Edge intelligence with Intelligent Tracking and object detection even when the camera is moving
Optional illuminator with multispectral LEDs that distribute IR light uniformly in the field to avoid dark spots or an over-illuminated scene
Product Overview
Uninterrupted tracking across expansive areas
Built-in Intelligent Video Analytics detects and follows critical targets even while the camera is in motion, ensuring operators never lose sight of unfolding events.
Continuous operation in extreme environments
Engineered to exceed conventional mechanical capabilities, the heavy-duty housing withstands severe shock, vibration, and marine-level corrosion to deliver reliable performance anywhere.
Exceptional 4K clarity and stability
Optical image stabilization actively corrects shaky video caused by wind or traffic, providing operators with sharp, detailed 4K resolution for confident forensic analysis.
Reliable visibility in total darkness
An optional multispectral illuminator dynamically adjusts lighting intensity based on the zoom level, ensuring clear, evenly lit scenes without blinding overexposure.
Automatic defroster for clear imaging
An integrated window defroster rapidly melts accumulated ice and prevents condensation, minimizing maintenance needs and maintaining visibility in freezing conditions.
Key Specifications
| Sensor type | 1 inch Exmor R CMOS |
| Resolution | 8MP |
| Low light technology | starlight |
| WDR technology | HDR |
| Frame rate (fps) | 1 – 30 fps |
| Lens focal length (mm) | 9.3 – 111.6 mm (12x zoom) |
| Lens zoom (x) | 12x |
| Horizontal field of view (°) | 6.1° – 64.6° |
| Video compression | H.264 / AVC; H.265 / HEVC; M-JPEG |
| IP rating | IP66; IP68 |
| Impact protection | IK10 |
| Operating temperature | -40 °C – 65 °C (-40 °F to +149 °F) |
| Analytics (built-in) | Intelligent Video Analytics |
Frequently Asked Questions
Common questions about the PTZ 8MP 12x IP68 enhanced white
The camera features a ruggedized design engineered to withstand high-impact and low-frequency vibration, making it ideal for bridges, tunnels, and highways. Rated to industry-leading IP68 and IK10 standards, it utilizes a closed-loop positioning system to maintain its position under continuous vibration. Additionally, a built-in window defroster prevents ice build-up, ensuring continuous visibility in unforgiving environments.
The MIC IP ultra 7100i incorporates built-in Optical Image Stabilization (OIS) to prevent pixel loss and outperform electronic stabilization. If the camera detects vibration, it dynamically corrects the shaky video in both the vertical and horizontal axis. Combined with UHD 4K resolution, this results in exceptional image clarity and a stable field of view for reliable monitoring.
Yes. Equipped with edge intelligence, the camera utilizes Intelligent Tracking to detect and follow objects even while the PTZ camera is moving. The Intelligent Video Analytics application can automatically trigger alarms if an object enters defined fields during a guard tour. This ensures smoother camera motion and more reliable tracking of moving objects across complex scenes.
The camera is secure by design, featuring an on-board Trusted Platform Module (TPM) and Public Key Infrastructure (PKI) support. It utilizes a three-level password protection system, 802.1x network authentication, and supports state-of-the-art TLS 1.2 protocols with AES encryption. System administrators can also enable software sealing, which triggers an alarm if any unauthorized configuration changes are attempted.
The camera supports an optional illuminator accessory featuring multispectral LEDs that distribute infrared (IR) light uniformly across the field of view. This avoids dark spots and over-illuminated scenes. It also includes patented Constant Light technology, which delivers a consistent level of illumination performance throughout the life of the product, even in fluctuating temperatures.
