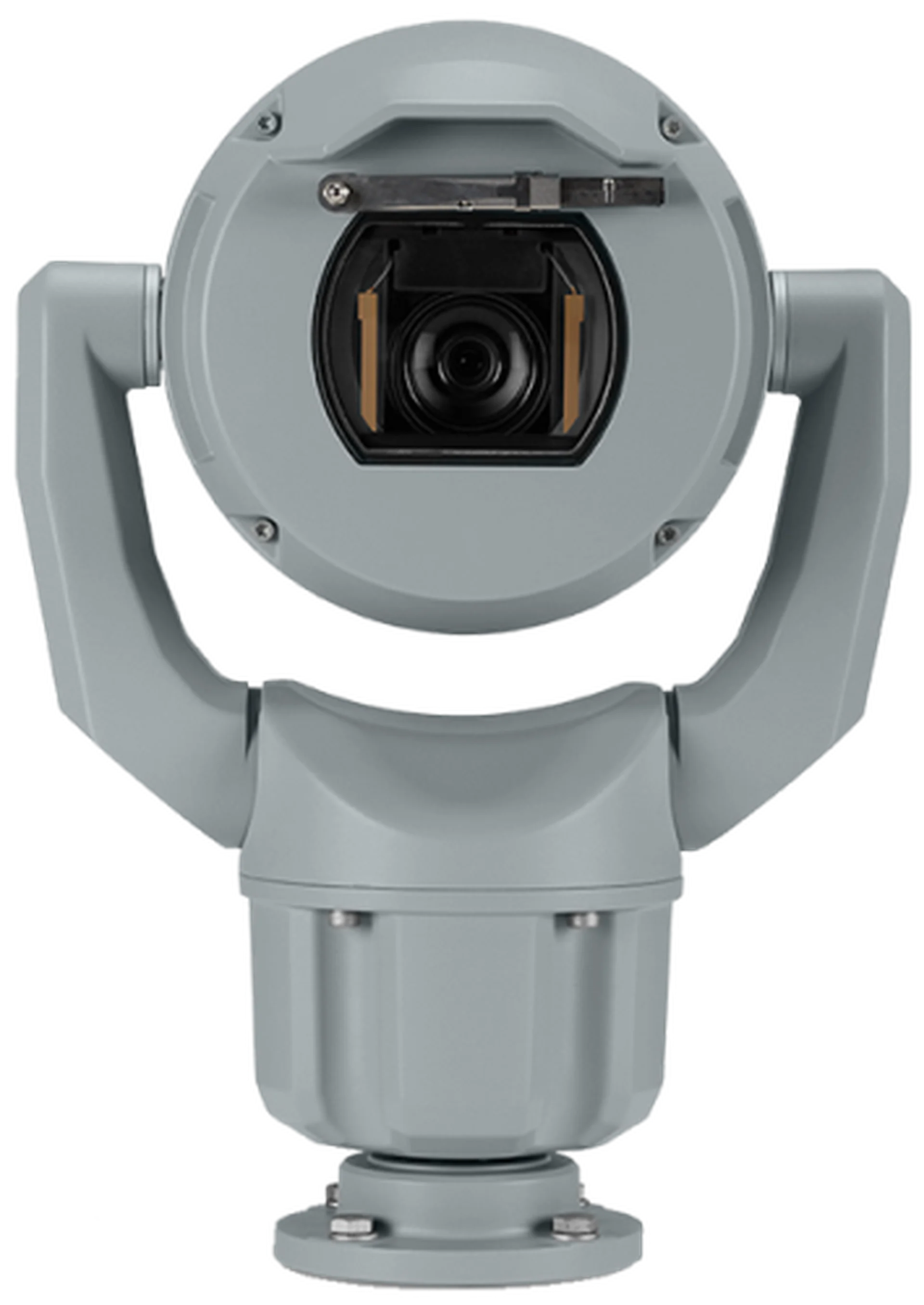

PTZ 2MP HDR 30x IP68 gray
The MIC IP starlight 7100i delivers continuous, high-quality visibility for harsh outdoor environments such as bridges, tunnels, highways, city surveillance, and mining. Engineered with starlight technology and edge intelligence, it provides reliable detection and tracking for mission-critical and high-security applications.
Commercial Type No: MIC-7522-Z30G
Starlight camera technology with excellent low-light sensitivity (color = 0.0047 lx) and High dynamic range (120 dB) (to see details in bright and dark areas simultaneously)
Exceptional strength and ruggedness for any outdoor application including traffic monitoring (bridges, tunnels, or highways), perimeter security, city surveillance, and mining
Built-in Camera Trainer to train the camera to recognize user-specified target objects, such as moving and non-moving objects, to alert operators of unusual scene activity
Edge intelligence with Intelligent Tracking and object detection even when the camera is moving
Optional illuminator with multispectral LEDs that distribute IR light uniformly in the field (up to 550 m (1804.50 ft)) to avoid dark spots or an over-illuminated scene
Product Overview
Maintain visibility in extreme environments
The ruggedized, weather-resistant design withstands severe shock, high winds, and heavy vibration without losing precise positioning.
See clearly in near-total darkness
Advanced starlight technology and high dynamic range capture detailed color images when ambient light is minimal.
Track critical activity automatically
Edge-based Intelligent Video Analytics smoothly follows moving objects across large areas, ensuring nothing important goes unseen.
Eliminate blind spots from severe weather
An automatic window defroster melts accumulated ice and prevents condensation, delivering uninterrupted clarity in freezing conditions.
Protect data with built-in cyber resilience
Hardware-level security and encrypted communications safeguard your video network against unauthorized access and malicious attacks.
Key Specifications
| Sensor type | 1/2 inch CMOS |
|---|---|
| Resolution | 2MP |
| Low light technology | starlight |
| WDR technology | HDR |
| Frame rate (fps) | 1 – 60 fps |
| Lens focal length (mm) | 6.6 – 198 mm (30x zoom) |
| Lens zoom (x) | 30x |
| Horizontal field of view (°) | 2.1° – 58.3° |
| Video compression | H.264 / AVC; H.265 / HEVC; M-JPEG |
| IP rating | IP66; IP68 |
| Impact protection | IK10 |
| Operating temperature | -40 °C – 65 °C (-40 °F to +149 °F) |
| IR illumination range | 550 m (with optional illuminator) |
| Analytics (built-in) | Intelligent Video Analytics |
Frequently Asked Questions
Common questions about the PTZ 2MP HDR 30x IP68 gray
The camera features a ruggedized design engineered to withstand high-impact, low-frequency vibration. Rated to industry-leading IP68, Type 6P, and IK10 standards, its anodized aluminum housing provides unequalled corrosion protection. A closed-loop positioning system allows the camera to maintain its position under continuous vibration, ensuring reliable visual intelligence in unforgiving conditions like bridges, tunnels, or mining sites.
The MIC IP starlight 7100i combines starlight camera technology with an outstanding High dynamic range (120 dB). This ensures exceptional color sensitivity in near-zero light (down to 0.0047 lx) while allowing operators to easily distinguish objects and features in both the bright highlights and dark shadows of a scene simultaneously.
Yes, the camera features continuous edge intelligence. Outside of pre-positions and even while the PTZ camera is moving on guard tours, the built-in Intelligent Video Analytics can detect objects and trigger alarms. Additionally, Intelligent Tracking can automatically control the pan, tilt, and zoom actions to follow detected objects and keep them clearly in view.
Special measures are implemented to ensure the highest level of security for device access and data transport. The camera features an Embedded Login Firewall, an on-board Trusted Platform Module (TPM), and Public Key Infrastructure (PKI) support. Network access is protected using 802.1x authentication, and viewing clients connect via secure protocols supporting TLS 1.2 with updated cipher suites and AES encryption.
The field-installable illuminator features multispectral LEDs that distribute IR light uniformly across the field of view up to 550 meters (1804.50 feet). The camera dynamically steers the IR beam to match the illumination intensity with the zoom level, preventing dark spots or over-illuminated scenes to deliver a consistent level of visibility.
