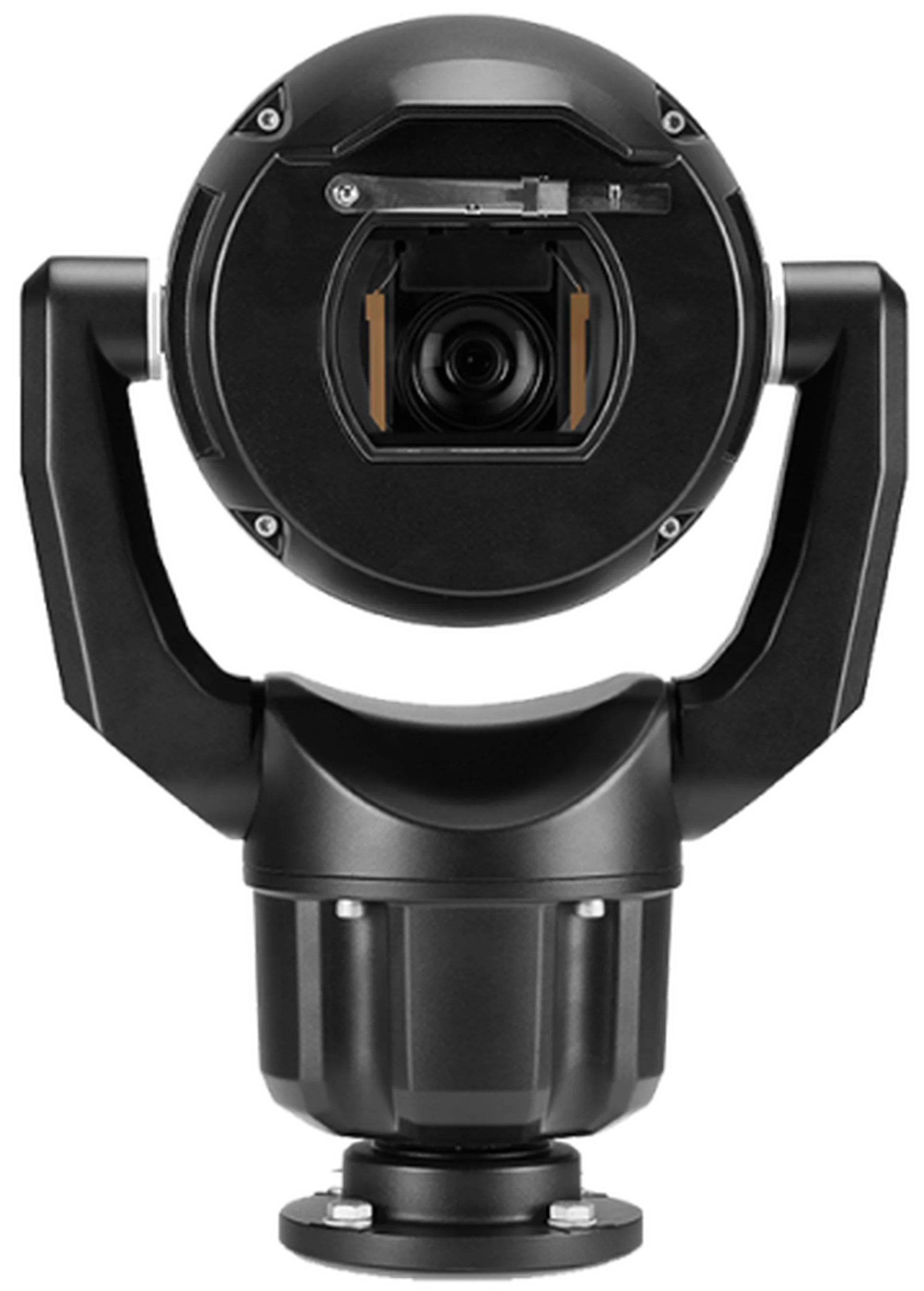

PTZ 2MP HDR 30x IP68 enhanced black
The MIC IP starlight 7100i delivers continuous, high-quality visibility for harsh outdoor environments such as bridges, tunnels, highways, city surveillance, and mining. Engineered with starlight technology and edge intelligence, it provides reliable detection and tracking for mission-critical and high-security applications.
Commercial Type No: MIC-7522-Z30BR
Starlight camera technology with excellent low-light sensitivity (color = 0.0047 lx) and High dynamic range (120 dB) (to see details in bright and dark areas simultaneously)
Exceptional strength and ruggedness for any outdoor application including traffic monitoring (bridges, tunnels, or highways), perimeter security, city surveillance, and mining
Built-in Camera Trainer to train the camera to recognize user-specified target objects, such as moving and non-moving objects, to alert operators of unusual scene activity
Edge intelligence with Intelligent Tracking and object detection even when the camera is moving
Optional illuminator with multispectral LEDs that distribute IR light uniformly in the field (up to 550 m (1804.50 ft)) to avoid dark spots or an over-illuminated scene
Product Overview
Maintain visibility in extreme environments
The ruggedized, weather-resistant design withstands severe shock, high winds, and heavy vibration without losing precise positioning.
See clearly in near-total darkness
Advanced starlight technology and high dynamic range capture detailed color images when ambient light is minimal.
Track critical activity automatically
Edge-based Intelligent Video Analytics smoothly follows moving objects across large areas, ensuring nothing important goes unseen.
Eliminate blind spots from severe weather
An automatic window defroster melts accumulated ice and prevents condensation, delivering uninterrupted clarity in freezing conditions.
Protect data with built-in cyber resilience
Hardware-level security and encrypted communications safeguard your video network against unauthorized access and malicious attacks.
Key Specifications
| Sensor type | 1/2 inch CMOS |
| Resolution | 2MP |
| Low light technology | starlight |
| WDR technology | HDR |
| Frame rate (fps) | 1 – 60 fps |
| Lens focal length (mm) | 6.6 – 198 mm (30x zoom) |
| Lens zoom (x) | 30x |
| Horizontal field of view (°) | 2.1° – 58.3° |
| Video compression | H.264 / AVC; H.265 / HEVC; M-JPEG |
| IP rating | IP66; IP68 |
| Impact protection | IK10 |
| Operating temperature | -40 °C – 65 °C (-40 °F to +149 °F) |
| IR illumination range | 550 m |
| Analytics (built-in) | Intelligent Video Analytics |
Frequently Asked Questions
Common questions about the PTZ 2MP HDR 30x IP68 enhanced black
Built for the most demanding outdoor applications, the camera features an anodized metal housing rated to IP68, Type 6P, and IK10 standards. It includes a closed-loop positioning system that maintains its exact position under continuous vibration or following a shock event. Additionally, enhanced models feature a viewing window defroster that automatically melts accumulated ice, ensuring clear visibility in freezing conditions.
The camera utilizes advanced starlight imaging technology combined with sophisticated noise suppression to deliver exceptional color sensitivity (0.0047 lx). Alongside a High dynamic range (120 dB) that balances bright highlights and dark shadows, the system ensures operators can clearly distinguish details in challenging lighting, removing blind spots during nighttime operations.
Yes, the system features Intelligent Video Analytics that remains active even when the PTZ camera is panning, tilting, or zooming. It can automatically detect objects in defined alarm fields during a guard tour and activate Intelligent Tracking to follow moving targets, ensuring teams maintain continuous understanding of the scene without manual intervention.
The system is secure by design, incorporating an onboard Trusted Platform Module (TPM) and Public Key Infrastructure (PKI) support. It features an Embedded Login Firewall, supports TLS 1.2 encryption, and offers a software sealing function that alerts the video management system if any unauthorized configuration changes occur, ensuring data integrity from capture to delivery.
An optional, field-installable illuminator is available, featuring multispectral LEDs that distribute infrared light uniformly across the field of view. This eliminates dark spots and over-illuminated areas, providing consistent visibility up to 550 meters (1804.50 feet). It also includes a white light mode that allows operators to capture full scene details in color or use the light as a visual deterrent.
