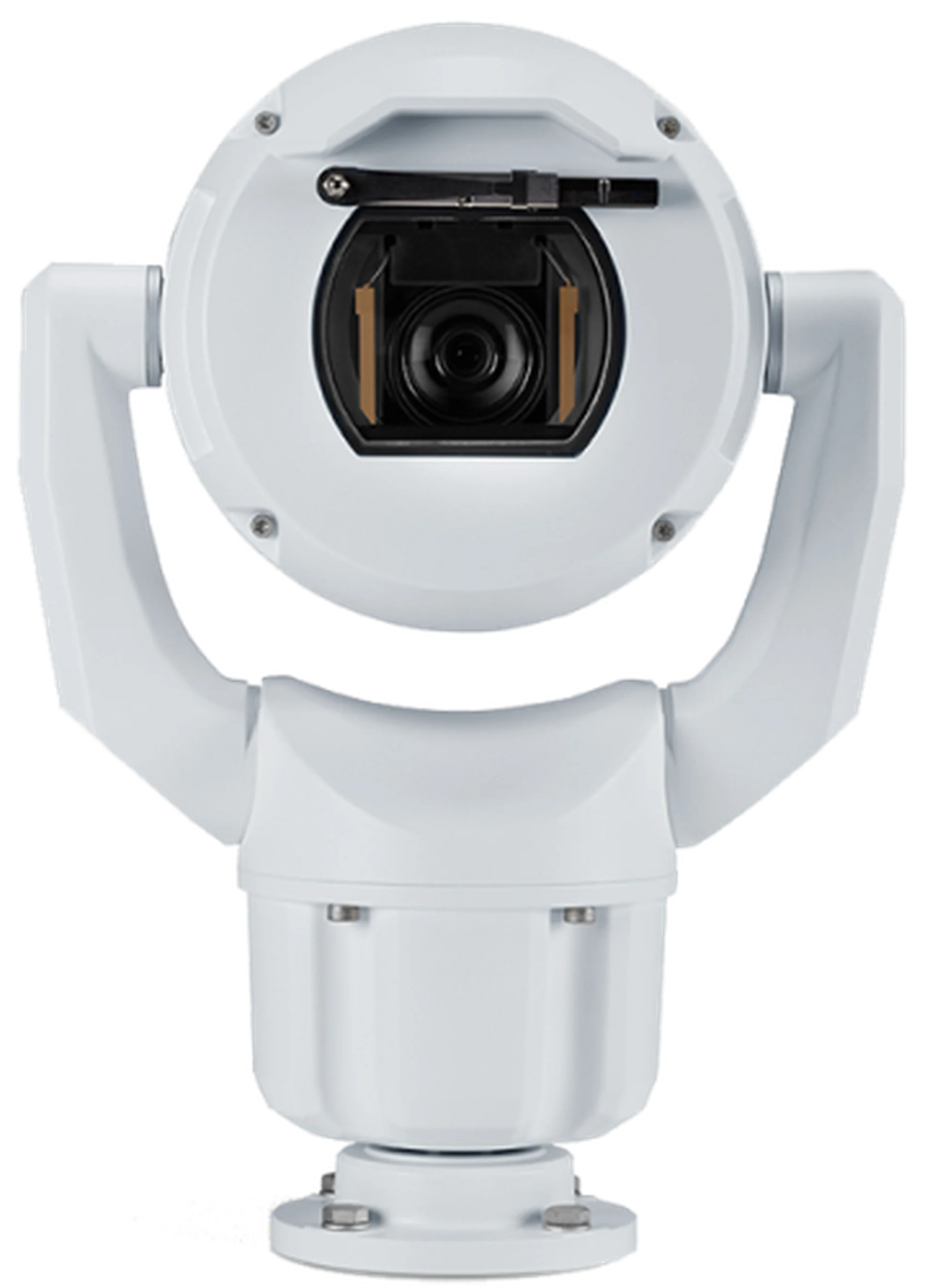

PTZ 2MP 30x starlight enhanced white
The MIC 7100i - 2MP family of ruggedized PTZ cameras is engineered for mission-critical environments like transportation and critical infrastructure, with built-in analytics and an open platform for third-party integrations.
Commercial Type No: MIC-7602-Z30WR
Starlight camera technology with excellent low-light sensitivity (color = 0.0047 lx) and High dynamic range (120 dB) (to see details in bright and dark areas simultaneously)
Flexible streaming capabilities powering three independent streams
Edge intelligence and object detection even when the camera is moving
Optional illuminator with multispectral LEDs that distribute IR light uniformly in the field (up to 550 m (1804.50 ft)) to avoid dark spots or an over-illuminated scene
Product Overview
Continuous detection during camera movement
Built-in Intelligent Video Analytics actively detects and analyzes objects even while the camera is panning or on a guard tour.
Clear visibility in near darkness
Advanced starlight technology and High Dynamic Range (HDR) reveal critical details in both brightly lit and shadowed areas simultaneously.
Uninterrupted performance in extreme conditions
A ruggedized, all-metal design withstands severe weather, high-impact shocks, and continuous vibration without losing positional accuracy.
Flexible bandwidth and storage management
Three independent video streams allow operators to optimize resolution and frame rates to reduce network strain without sacrificing quality.
Secure data from capture to delivery
Built-in cryptographic hardware and secure boot protocols ensure your video data remains protected against unauthorized access.
Key Specifications
| Sensor type | 1/2 inch CMOS |
| Resolution | 2MP |
| Low light technology | starlight |
| WDR technology | HDR |
| Frame rate (fps) | 2 – 60 fps |
| Lens focal length (mm) | 6.6 – 198 mm (30x zoom) |
| Lens zoom (x) | 30x |
| Horizontal field of view (°) | 2.1° – 58.3° |
| Video compression | H.264 / AVC ; H.265 / HEVC ; M-JPEG |
| IP rating | IP66; IP68 |
| Impact protection | IK10 |
| Operating temperature | -40 °C – 65 °C (-40 °F to +149 °F) |
| Analytics (built-in) | Intelligent Video Analytics |
Frequently Asked Questions
Common questions about the PTZ 2MP 30x starlight enhanced white
The camera features Intelligent Video Analytics that operate continuously, even during pan, tilt, and zoom movements or while executing guard tours. This continuous edge intelligence allows the system to detect moving objects and trigger alarms without requiring the camera to be stationary, ensuring operators never lose situational context across critical infrastructure.
Advanced starlight camera technology combined with exceptional low-light sensitivity (color = 0.0047 lx) ensures excellent color performance with minimal ambient light. Additionally, its high dynamic range (120 dB) captures precise details in both bright highlights and dark shadows simultaneously, providing teams with clear, reliable visibility day or night.
Yes, the camera supports an optional field-installable illuminator equipped with multispectral LEDs. This accessory distributes infrared light uniformly across the field of view up to 550 meters (1804.50 feet), effectively eliminating dark spots and over-illuminated scenes to maintain forensic clarity in absolute darkness.
The MIC 7100i - 2MP offers flexible streaming capabilities that power three independent streams using highly efficient H.265 video encoding. Operators can individually configure the resolution and frame rate for each stream, prioritizing specific feeds for recording or live viewing to ensure high-quality imaging with very low network load.
Engineered for extreme environments, this enhanced model features an automatic defroster on the viewing window. Utilizing technology similar to aircraft windscreens, the transparent heating coating prevents ice build-up and condensation, melting accumulated ice rapidly to maintain an uninterrupted, crystal-clear view in freezing temperatures.
