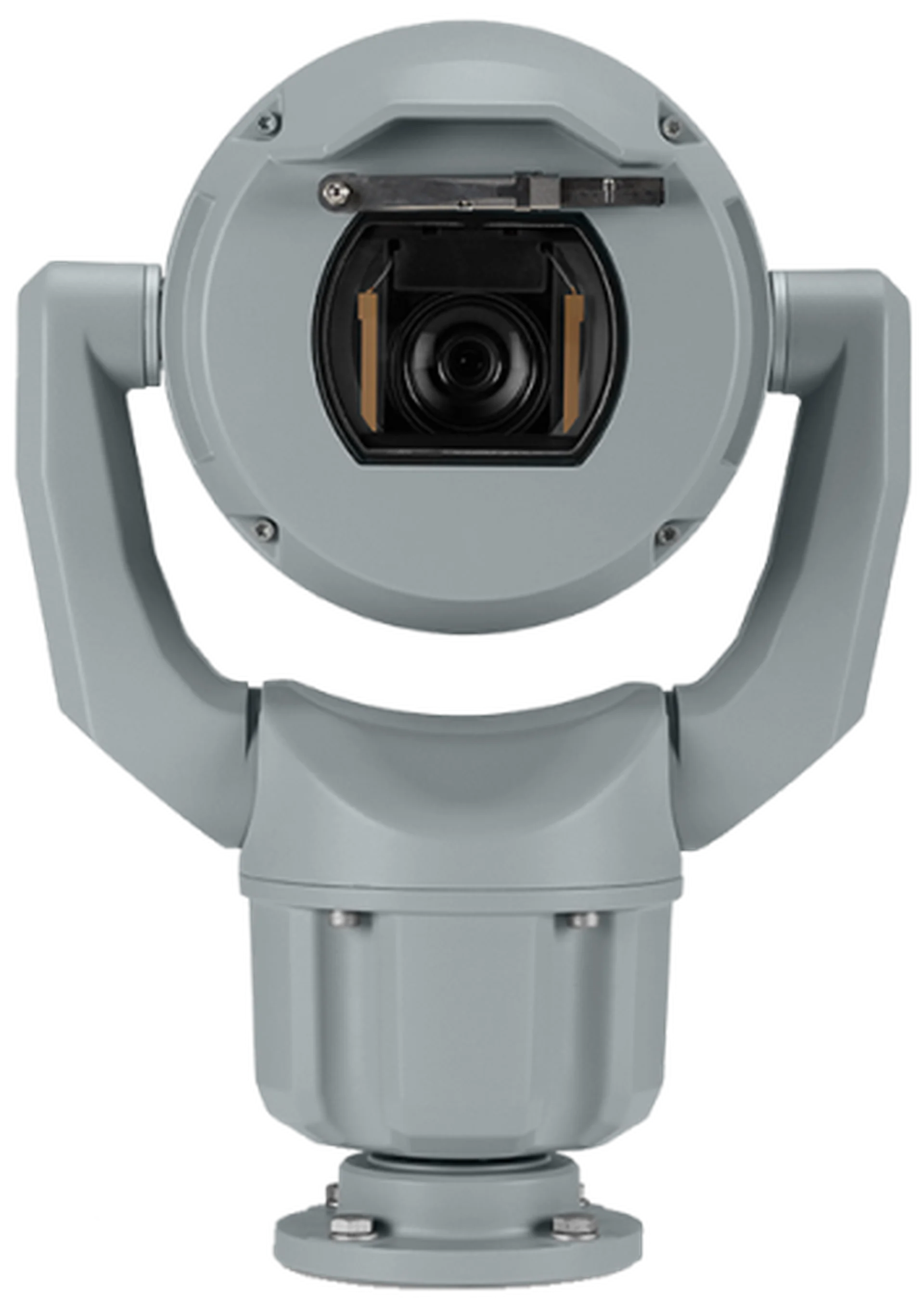

PTZ 2MP 30x starlight enhanced gray
The MIC 7100i - 2MP family of ruggedized PTZ cameras is engineered for mission-critical environments like transportation and critical infrastructure, with built-in analytics and an open platform for third-party integrations.
Commercial Type No: MIC-7602-Z30GR
Starlight camera technology with excellent low-light sensitivity (color = 0.0047 lx) and High dynamic range (120 dB) (to see details in bright and dark areas simultaneously)
Flexible streaming capabilities powering three independent streams
Edge intelligence and object detection even when the camera is moving
Optional illuminator with multispectral LEDs that distribute IR light uniformly in the field (up to 550 m (1804.50 ft)) to avoid dark spots or an over-illuminated scene
Product Overview
Continuous detection during camera movement
Built-in Intelligent Video Analytics actively detects and analyzes objects even while the camera is panning or on a guard tour.
Clear visibility in near darkness
Advanced starlight technology and High Dynamic Range (HDR) reveal critical details in both brightly lit and shadowed areas simultaneously.
Uninterrupted performance in extreme conditions
A ruggedized, all-metal design withstands severe weather, high-impact shocks, and continuous vibration without losing positional accuracy.
Flexible bandwidth and storage management
Three independent video streams allow operators to optimize resolution and frame rates to reduce network strain without sacrificing quality.
Secure data from capture to delivery
Built-in cryptographic hardware and secure boot protocols ensure your video data remains protected against unauthorized access.
Key Specifications
| Sensor type | 1/2 inch CMOS |
|---|---|
| Resolution | 2MP |
| Low light technology | starlight |
| WDR technology | HDR |
| Frame rate (fps) | 2 – 60 fps |
| Lens focal length (mm) | 6.6 – 198 mm (30x zoom) |
| Lens zoom (x) | 30x |
| Horizontal field of view (°) | 2.1° – 58.3° |
| Video compression | H.264 / AVC ; H.265 / HEVC ; M-JPEG |
| IP rating | IP66; IP68 |
| Impact protection | IK10 |
| Operating temperature | -40 °C – 65 °C (-40 °F to +149 °F) |
| Analytics (built-in) | Intelligent Video Analytics |
Frequently Asked Questions
Common questions about the PTZ 2MP 30x starlight enhanced gray
Outside of pre-positions and even while the PTZ camera is moving, whether on guard tours or manually, the Intelligent Video Analytics application can reliably detect and start alarms when objects are in defined alarm fields. This continuous edge intelligence ensures that critical events are captured and tracked, empowering operators to understand the scene in real time.
The camera utilizes starlight technology combined with sophisticated noise suppression to deliver excellent low-light sensitivity (color = 0.0047 lx). Additionally, a High dynamic range (120 dB) allows operators to view details in both bright highlights and dark shadows simultaneously, ensuring clear visual intelligence under any lighting condition.
The system offers flexible streaming capabilities powering three independent encoder streams. Users can configure each stream individually to adjust the video resolution and frame rate. This allows teams to prioritize specific streams for quality of service while utilizing highly efficient H.265 video encoding to minimize network load.
Special measures ensure the highest level of data security for device access and transport. The camera features a built-in Secure Element with trusted platform module (TPM) functionality, secure and verified boot, and advanced certificate handling. Furthermore, the software sealing functionality detects any unauthorized changes to the camera configuration, ensuring cyber-resilient operation from capture to delivery.
The camera supports an optional field-installable illuminator with multispectral LEDs that distribute IR light uniformly in the field—up to 550 m (1804.50 ft). This dynamic illumination steers the IR beam to match the camera's zoom level, avoiding dark spots or an over-illuminated scene to ensure reliable long-range detection in pitch-black environments.
