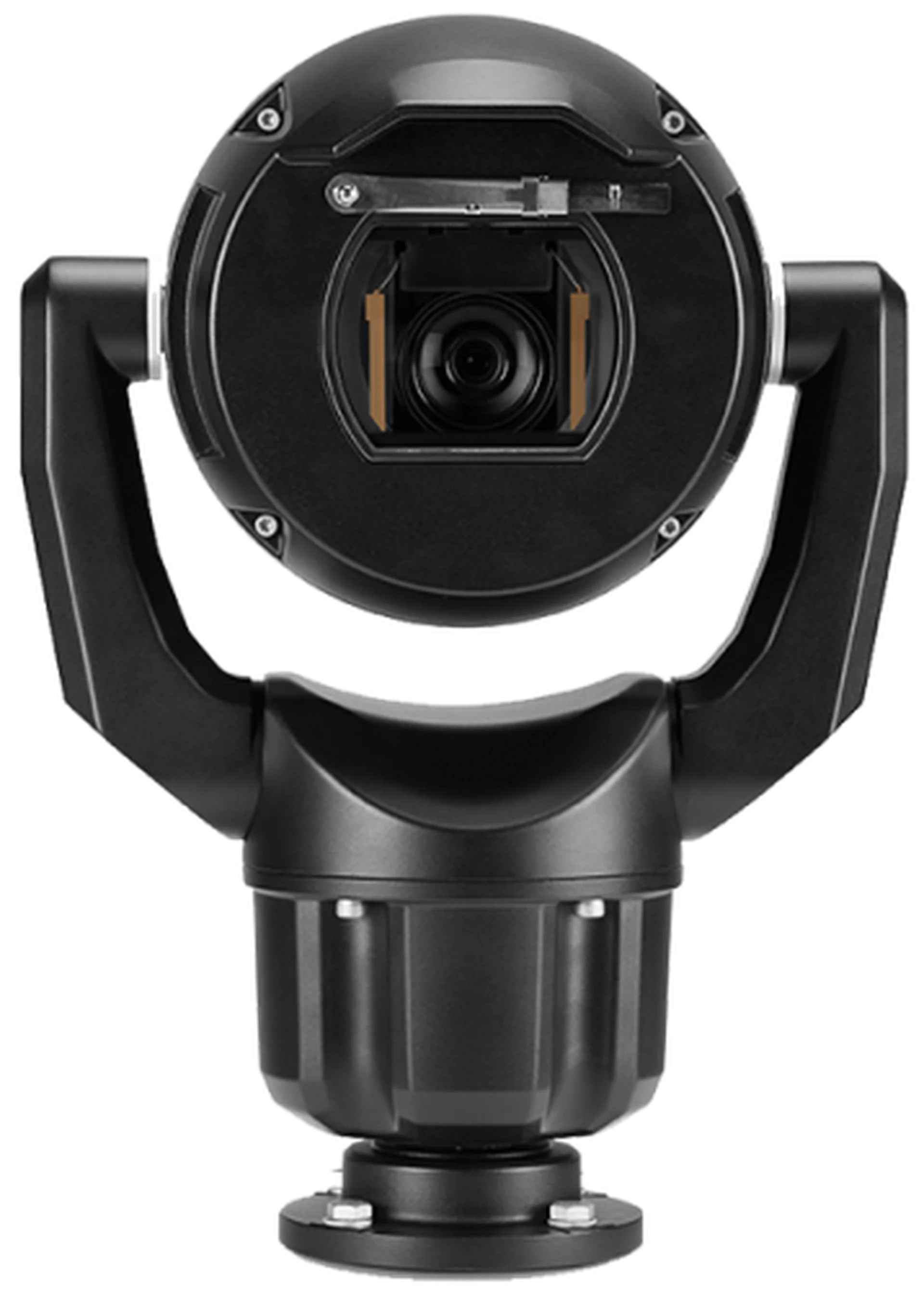

PTZ 2MP 30x starlight enhanced black
The MIC 7100i - 2MP family of ruggedized PTZ cameras is engineered for mission-critical environments like transportation and critical infrastructure, with built-in analytics and an open platform for third-party integrations.
Commercial Type No: MIC-7602-Z30BR
Starlight camera technology with excellent low-light sensitivity (color = 0.0047 lx) and High dynamic range (120 dB) (to see details in bright and dark areas simultaneously)
Flexible streaming capabilities powering three independent streams
Edge intelligence and object detection even when the camera is moving
Optional illuminator with multispectral LEDs that distribute IR light uniformly in the field (up to 550 m (1804.50 ft)) to avoid dark spots or an over-illuminated scene
Product Overview
Continuous detection during camera movement
Built-in Intelligent Video Analytics actively detects and analyzes objects even while the camera is panning or on a guard tour.
Clear visibility in near darkness
Advanced starlight technology and High Dynamic Range (HDR) reveal critical details in both brightly lit and shadowed areas simultaneously.
Uninterrupted performance in extreme conditions
A ruggedized, all-metal design withstands severe weather, high-impact shocks, and continuous vibration without losing positional accuracy.
Flexible bandwidth and storage management
Three independent video streams allow operators to optimize resolution and frame rates to reduce network strain without sacrificing quality.
Secure data from capture to delivery
Built-in cryptographic hardware and secure boot protocols ensure your video data remains protected against unauthorized access.
Key Specifications
| Sensor type | 1/2 inch CMOS |
|---|---|
| Resolution | 2MP |
| Low light technology | starlight |
| WDR technology | HDR |
| Frame rate (fps) | 1 – 60 fps |
| Lens focal length (mm) | 6.6 – 198 mm (30x zoom) |
| Lens zoom (x) | 30x |
| Horizontal field of view (°) | 2.1° – 58.3° |
| Video compression | H.264 / AVC ; H.265 / HEVC ; M-JPEG |
| IP rating | IP66; IP68 |
| Impact protection | IK10 |
| Operating temperature | -40 °C – 65 °C (-40 °F to +149 °F) |
| Analytics (built-in) | Intelligent Video Analytics |
Frequently Asked Questions
Common questions about the PTZ 2MP 30x starlight enhanced black
The camera utilizes advanced starlight camera technology to deliver excellent low-light sensitivity (color = 0.0047 lx). This is combined with a High dynamic range (120 dB) to ensure teams can see details in bright and dark areas simultaneously. For pitch-dark scenes, an optional illuminator with multispectral LEDs distributes IR light uniformly in the field (up to 550 m (1804.50 ft)) to avoid dark spots or an over-illuminated scene.
Yes. The built-in Intelligent Video Analytics provides edge intelligence and object detection even when the camera is moving. Outside of pre-positions and during manual or guard tours, the system reliably detects, tracks, and analyzes moving objects, ensuring continuous situational awareness and early risk detection without interruption.
Designed for mission-critical applications, the camera features a ruggedized, anodized aluminum body that provides unprecedented protection against corrosion. It is certified to IP68, Type 6P, and IK10 standards to withstand rigorous dust, immersion, and high-impact vibration. Additionally, an automatic window defroster melts accumulated ice, ensuring reliable visual intelligence in environments as cold as -25 °C (-13 °F).
The camera is secure by design, featuring a built-in Secure Element with Trusted Platform Module (TPM) functionality. It is independently certified with Assurance Level (EAL) 6+ and uses advanced cryptography with maximum 4096-bit RSA keys. Unsecure ports are disabled, and software sealing functionality detects any unauthorized configuration changes, ensuring resilient data transport and trusted device access.
The camera is designed on a highly efficient H.265 encoding platform to deliver high-resolution video with very low network load. It features flexible streaming capabilities powering three independent streams. Users can configure each stream individually to change video resolution and frame rates, allowing for optimized bandwidth management and guaranteed quality of service for recording.
