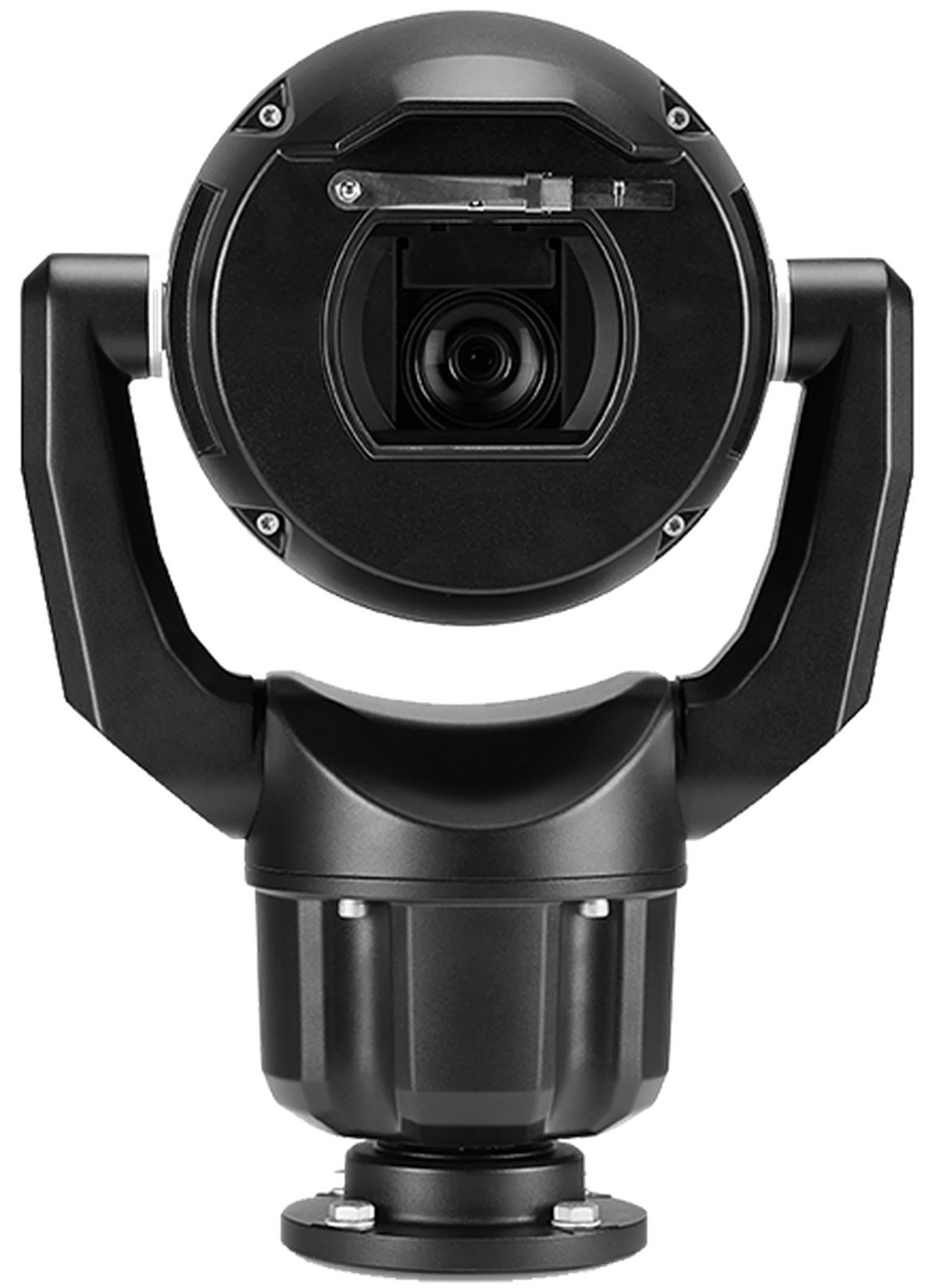

PTZ 2MP 30x starlight black
The MIC 7100i - 2MP family of ruggedized PTZ cameras is engineered for mission-critical environments like transportation and critical infrastructure, with built-in analytics and an open platform for third-party integrations.
Commercial Type No: MIC-7602-Z30B
Starlight camera technology with excellent low-light sensitivity (color = 0.0047 lx) and High dynamic range (120 dB) (to see details in bright and dark areas simultaneously)
Flexible streaming capabilities powering three independent streams
Edge intelligence and object detection even when the camera is moving
Optional illuminator with multispectral LEDs that distribute IR light uniformly in the field (up to 550 m (1804.50 ft)) to avoid dark spots or an over-illuminated scene
Product Overview
Continuous detection during camera movement
Built-in Intelligent Video Analytics actively detects and analyzes objects even while the camera is panning or on a guard tour.
Clear visibility in near darkness
Advanced starlight technology and High Dynamic Range (HDR) reveal critical details in both brightly lit and shadowed areas simultaneously.
Uninterrupted performance in extreme conditions
A ruggedized, all-metal design withstands severe weather, high-impact shocks, and continuous vibration without losing positional accuracy.
Flexible bandwidth and storage management
Three independent video streams allow operators to optimize resolution and frame rates to reduce network strain without sacrificing quality.
Secure data from capture to delivery
Built-in cryptographic hardware and secure boot protocols ensure your video data remains protected against unauthorized access.
Key Specifications
| Sensor type | 1/2 inch CMOS |
|---|---|
| Resolution | 2MP |
| Low light technology | starlight |
| WDR technology | HDR |
| Frame rate (fps) | 1 – 60 fps |
| Lens focal length (mm) | 6.6 – 198 mm (30x zoom) |
| Lens zoom (x) | 30x |
| Horizontal field of view (°) | 2.1° – 58.3° |
| Video compression | H.264 / AVC ; H.265 / HEVC ; M-JPEG |
| IP rating | IP66; IP68 |
| Impact protection | IK10 |
| Operating temperature | -40 °C – 65 °C (-40 °F – 149 °F) |
| Analytics (built-in) | Intelligent Video Analytics |
Frequently Asked Questions
Common questions about the PTZ 2MP 30x starlight black
The camera utilizes advanced starlight technology to provide excellent low-light sensitivity, capturing clear color details down to 0.0047 lx. Combined with a 120 dB high dynamic range (HDR), operators can clearly distinguish objects and critical details in scenes with both bright highlights and deep shadows simultaneously.
Yes, the MIC 7100i - 2MP maintains continuous edge intelligence even while the camera is panning, tilting, or zooming. Intelligent Video Analytics can reliably detect, track, and analyze moving objects outside of pre-positions, ensuring no critical activity goes unnoticed during guard tours or manual operation.
Absolutely. Built with a ruggedized, IP68 and IK10-rated anodized aluminum housing, the camera withstands extreme weather, heavy vibration, and high impacts. It is designed to deliver uninterrupted visual intelligence across demanding locations like highways, bridges, and critical infrastructure without requiring pressurization.
The camera supports an optional field-installable illuminator featuring multispectral LEDs. This accessory distributes IR light uniformly across the field of view up to 550 meters (1804.50 feet), eliminating dark spots and preventing over-illuminated scenes to ensure clear, consistent detection in total darkness.
The MIC 7100i - 2MP offers flexible streaming capabilities that power three independent streams. Utilizing highly efficient H.265 video encoding, it delivers high-resolution video with minimal network load. Users can individually configure each stream's resolution and frame rate to optimize performance and guarantee quality of service for recording.
