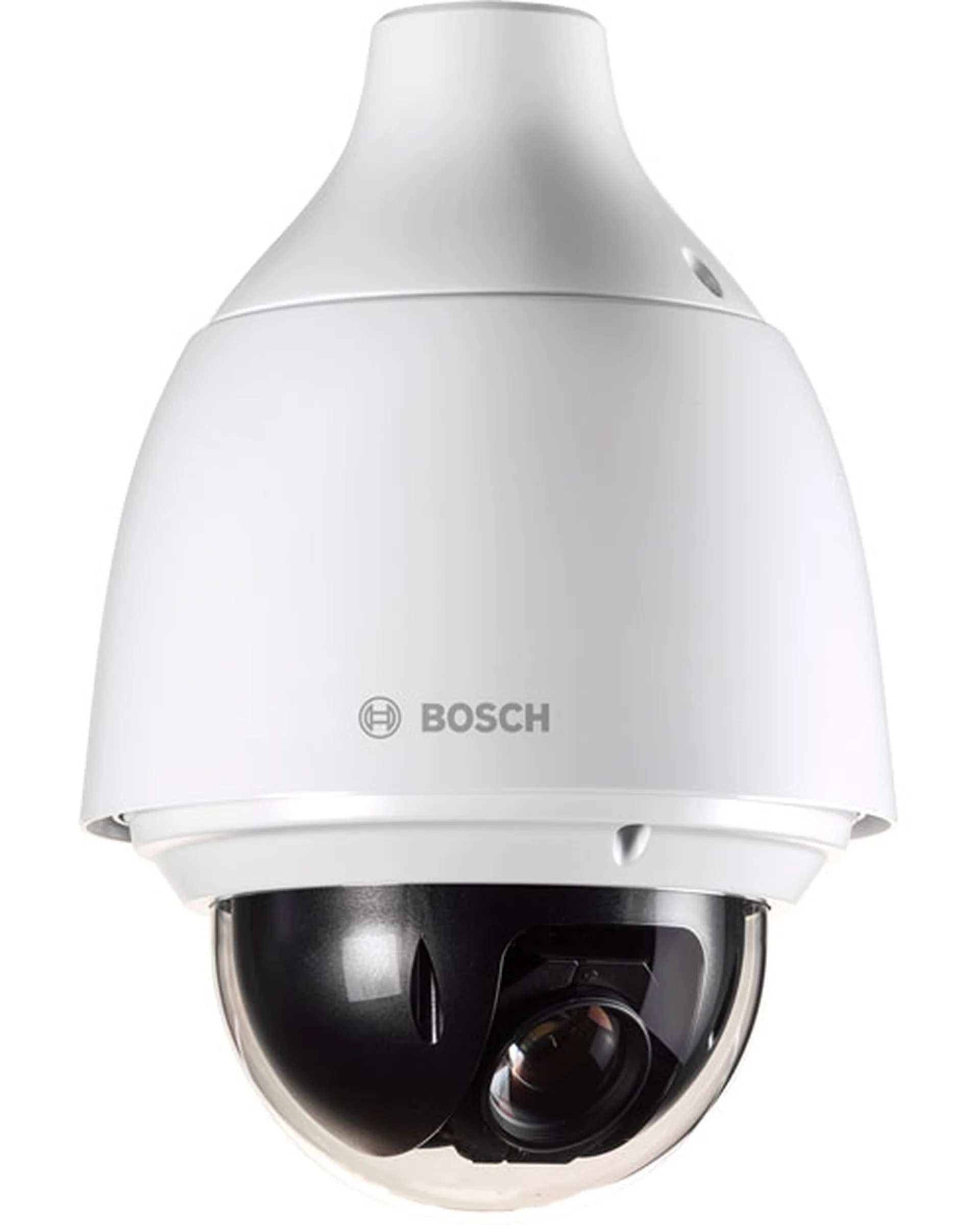

PTZ 2MP 30x IP66 pendant
The AUTODOME IP starlight 5000i family of PTZ cameras combine reliable visual performance with accurate tracking across large environments. With exceptional low-light capabilities and built-in analytics, these cameras are specifically designed for tracking applications under widely varying light conditions.
Commercial Type No: NDP-5522-Z30
Starlight camera technology with excellent low-light performance
120dB dynamic range lets you capture details in overexposed situations with confidence
Intelligent streaming, IDNR and H.265 reduce bit rate by up to 80%
Built-in Essential Video Analytics to trigger relevant alerts and quickly retrieve data
High resolution bubble to ensure maximum effective resolution output
Simple installation with flexible mounting options (in-ceiling or pendant mounting)
Product Overview
Act faster with built-in analytics
Essential Video Analytics automatically detects critical events like loitering or line crossing to trigger real-time alerts.
Maintain visibility in extreme low light
Starlight technology and advanced noise suppression deliver exceptional color detail even in near-darkness.
Track distant subjects with precision
An integrated 30X optical zoom allows operators to identify people and objects clearly at extended distances.
Reduce network bandwidth and storage costs
Intelligent streaming and efficient compression lower bit rates significantly without sacrificing critical video quality.
Secure critical data from malicious attacks
An on-board Trusted Platform Module and encrypted communications ensure video data remains protected from end to end.
Key Specifications
| Sensor type | 1/2.8 inch CMOS |
| Resolution | 2MP |
| Low light technology | starlight |
| WDR technology | HDR |
| Frame rate (fps) | 1 – 60 fps |
| Lens focal length (mm) | 4.5 – 135 mm |
| Lens zoom (x) | 30x |
| Horizontal field of view (°) | 2.4° – 60.9° |
| Video compression | H.264 / AVC; H.265 / HEVC; M-JPEG |
| IP rating | IP66 |
| Impact protection | IK10 |
| Operating temperature | -40 °C – 60 °C (-40 °F – 140 °F) |
| IR illumination range | 180 m |
| Analytics (built-in) | Essential Video Analytics |
Frequently Asked Questions
Common questions about the PTZ 2MP 30x IP66 pendant
The camera combines starlight technology with a 120 dB High Dynamic Range to deliver exceptional color sensitivity and detail in overexposed situations. Additionally, a high-resolution bubble ensures maximum effective resolution output, empowering operators to see clearly and understand the scene regardless of ambient lighting.
The camera features built-in Essential Video Analytics designed to trigger relevant alerts and quickly retrieve data. This intelligence-first capability supports advanced tasks like line crossing, loitering, and object detection, transforming video into real-time understanding for commercial buildings and retail environments.
By utilizing intelligent streaming, Intelligent Dynamic Noise Reduction (IDNR), and H.265 video encoding, the camera reduces bit rates by up to 80 percent. It focuses encoding on relevant information, such as motion or objects identified by the analytics, ensuring high-quality video without overwhelming network infrastructure.
Yes, the camera is designed for simple installation with flexible mounting options, supporting both in-ceiling and pendant configurations. The housing comes fully assembled, and the design allows a single person to connect cables directly, significantly reducing deployment time and business disruption.
The camera is secure by design, featuring an on-board Trusted Platform Module (TPM) and Public Key Infrastructure (PKI) support. It mandates secure channels for initial setup, utilizes the TLS 1.2 protocol with AES 256-bit encryption, and supports software sealing to prevent unauthorized configuration changes.
