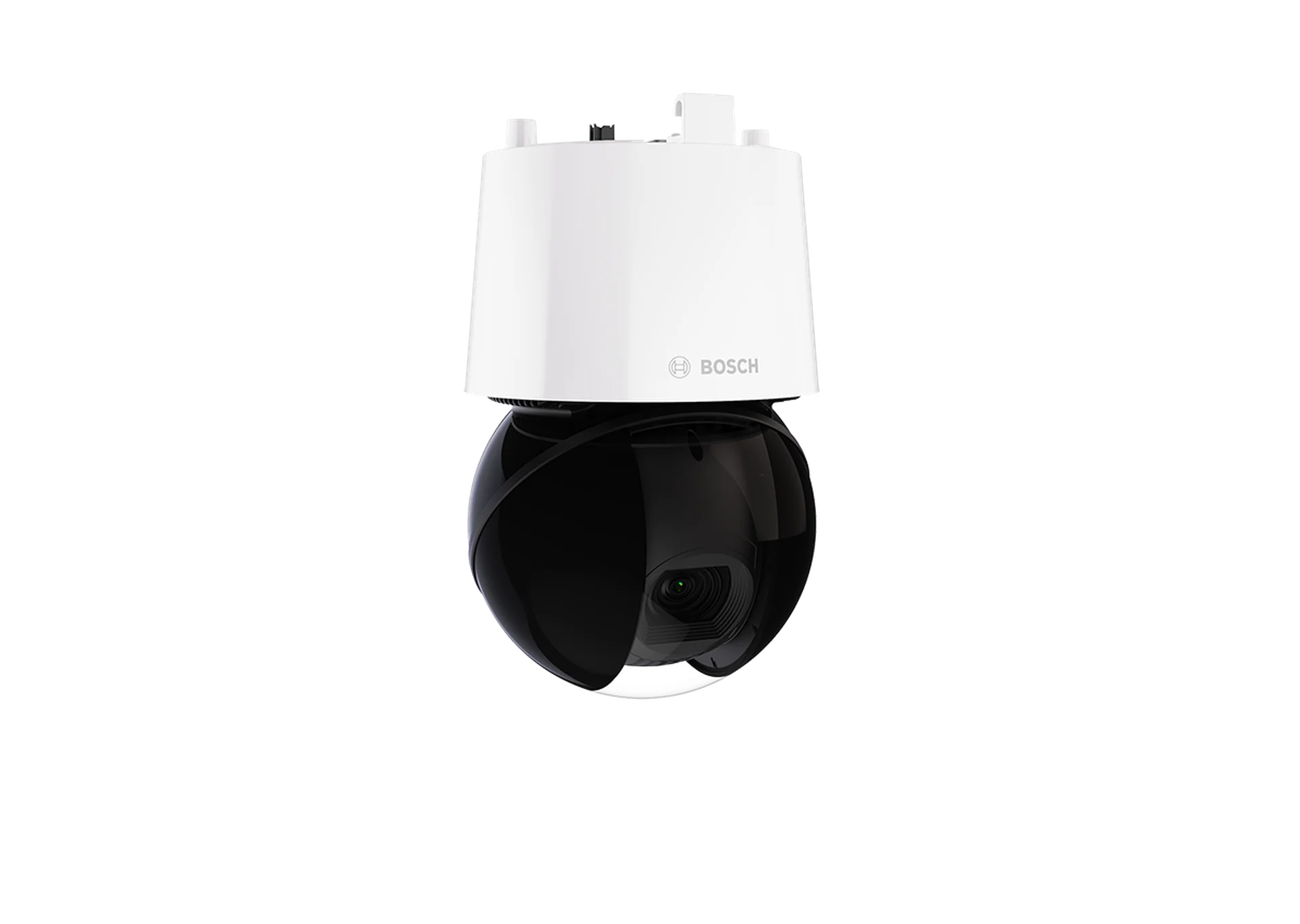

PTZ 2MP HDR 40x IP66 pendant IR
The AUTODOME 7100i family of moving PTZ cameras delivers continuous visibility and intelligent tracking for dynamic environments like transportation and city surveillance. Key features include built-in IVA Pro analytics, available IR detection up to 300 m (984 ft), a robust mechanism, and starlight imaging.
Commercial Type No: NDP-7802-Z40L
High-performance PTZ with starlight imaging technology and HDR for details in difficult light conditions
300 m (984 ft) IR illuminator detection distance
IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested
Built-in artificial intelligence alerts operators of unusual scene activity
Fully configurable quad streaming
Optional direct fiber connection for increased communications security
Product Overview
Detect activity during camera movement
Built-in IVA Pro analytics identifies unusual scene activity and triggers alerts even while the camera is actively panning, tilting, or zooming.
Track targets with precise accuracy
A highly accurate, closed-loop drive platform provides optimum smoothness and reliable positioning to ensure continuous visibility of critical events.
Provide views above the horizon
The specialized physical design captures undistorted, high-resolution video above the horizon line, making it ideal for monitoring uneven city landscapes.
See clearly in near-total darkness
Starlight imaging, available IR illumination, and sophisticated noise suppression deliver exceptional color detail in low-light environments so operators never lose visual context.
Secure communications from end to end
An optional direct fiber connection and a certified built-in Secure Element protect sensitive video data against unauthorized access and cyber threats.
Key Specifications
| Sensor type | 1/2.8 inch CMOS |
| Resolution | 2MP |
| Low light technology | starlight |
| WDR technology | HDR |
| Frame rate (fps) | 1 – 60 fps |
| Lens focal length (mm) | 4.25 – 170 mm |
| Lens zoom (x) | 40x |
| Horizontal field of view (°) | 1.9° – 66.4° |
| Video compression | H.264 / AVC; H.265 / HEVC; M-JPEG |
| IP rating | IP66 |
| Impact protection | IK10 |
| Operating temperature | -40 °C - 60 °C (-40 °F – 140 °F) |
| IR illumination range | 300 m (984 ft) |
| Analytics (built-in) | Intelligent Video Analytics |
Frequently Asked Questions
Common questions about the PTZ 2MP HDR 40x IP66 pendant IR
The AUTODOME 7100i features built-in IVA Pro analytics, which deliver highly reliable, deep-learning based detection of persons and vehicles. Whether monitoring sterile zones or highly congested areas, this built-in artificial intelligence automatically alerts operators to unusual scene activity so they can understand context in real time and respond earlier.
Yes, the camera combines high-performance PTZ tracking with starlight imaging technology and HDR for clear details in difficult light conditions. Additionally, it features an integrated infrared illuminator with a 300 m (984 ft) detection distance, allowing teams to track critical activity and maintain continuous visibility even in near-zero light.
The AUTODOME 7100i is engineered as a highly accurate and reliable solution thanks to a closed-loop drive platform. This ensures precise positioning and smooth tracking of activity as it unfolds, giving operators the exact spatial context needed to follow critical events across expansive environments without losing focus.
Designed to be cyber-resilient from capture to delivery, the camera includes a built-in Secure Element and aligns with global cybersecurity standards like FIPS 140-3. Furthermore, it supports an optional direct fiber connection for increased communications security, ensuring that critical video insights remain protected against unauthorized access.
The AUTODOME 7100i provides fully configurable quad streaming, allowing organizations to tailor video feeds for different viewing and recording needs. This flexibility ensures that operators receive high-quality, real-time video for confident decision-making while efficiently managing network bandwidth and storage resources.
