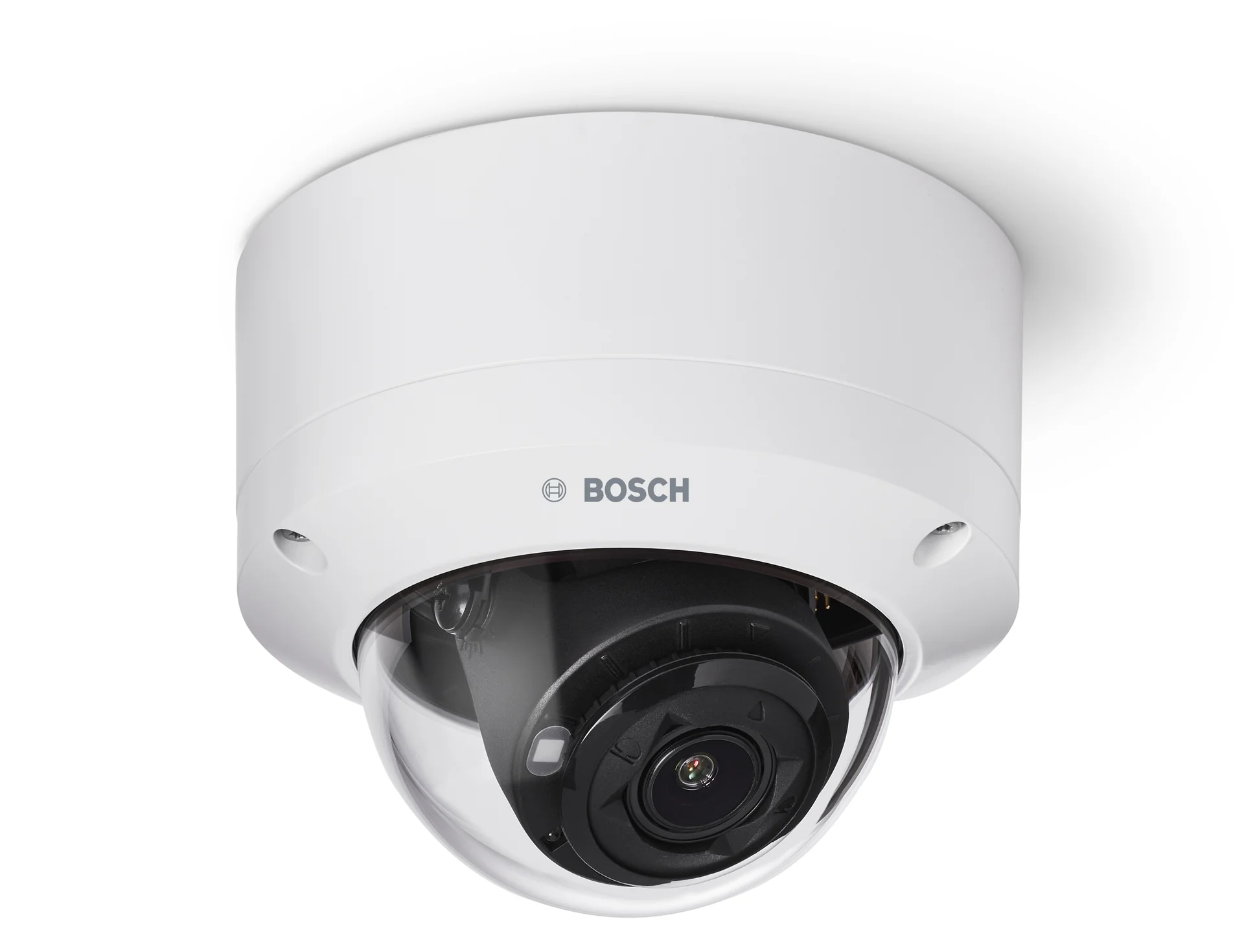

Fixed dome 2MP HDR 3.2-10.5mm IP66 IR IO
The FLEXIDOME outdoor 5100i IR family provides excellent low-light performance with intelligent IR illumination up to 45 m (148 ft) and starlight technology. Built-in IVA Pro analytics, two-way audio, and robust weather resistance support building security and other critical applications.
Commercial Type No: NDE-5702-AL
1080p60 for highly detailed images
Starlight camera technology with excellent low-light performance
IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested
High Dynamic Range to see every detail in both bright and dark areas of the scene
Built-in intelligent IR illuminator with up to 45 m (148 ft) viewing distance
Product Overview
Minimize false triggers with intelligent detection
Built-in IVA Pro Buildings reliably detects and classifies people and vehicles in crowded scenes, filtering out environmental noise to help operators focus on real events.
Maintain clear visibility in extreme lighting
Starlight camera technology and High Dynamic Range ensure you see every critical detail in both bright sunlight and near-zero light conditions.
Continuous awareness in near total darkness
An integrated intelligent IR illuminator automatically adjusts to the scene, providing clear visibility up to 45 m (148 ft) without over-exposing nearby objects.
Reduce installation time and deployment friction
A modular design with a hardware-free click-and-rotate mechanism allows integrators to mount and configure the device quickly, minimizing disruption to daily operations.
Secure data from capture to delivery
A built-in Secure Element and advanced encryption standards ensure your video data remains protected against malicious attacks and unauthorized access.
Key Specifications
| Sensor type | 1/2.8 inch CMOS |
| Resolution | 2 MP |
| Low light technology | starlight |
| WDR technology | HDR |
| Frame rate (fps) | 1 fps – 60 fps |
| Lens focal length (mm) | 3.2 to 10.5 mm |
| Horizontal field of view (°) | 105° – 31° |
| Field of view adjustment | Motorized zoom/focus |
| Video compression | H.264 / AVC; H.265 / HEVC; M-JPEG |
| IP rating | IP66 |
| Impact protection | IK10 ; NEMA 4X |
| Operating temperature | -40 °C – 55 °C (-40 °F – 131 °F) |
| IR illumination range | 45 m |
| Analytics (built-in) | IVA Pro Buildings ; IVA Pro Privacy |
| Analytics (available) | IVA Pro Perimeter ; IVA Pro Traffic ; IVA Pro Appearance ; IVA Pro Personal Protective Equipment ; IVA Pro Visual Gun Detection ; IVA Pro License Plate ; IVA Pro Vehicle Make Model ; IVA Pro Dangerous Good Signs ; Intelligent Audio Analytics |
Frequently Asked Questions
Common questions about the Fixed dome 2MP HDR 3.2-10.5mm IP66 IR IO
The camera leverages starlight technology and High Dynamic Range (HDR) to capture highly detailed 1080p60 images in extreme low-light conditions. Additionally, a built-in intelligent IR illuminator provides clear viewing up to 45 meters (148 feet), ensuring that critical details remain visible in both bright and dark areas of the scene.
The FLEXIDOME outdoor 5100i IR comes with IVA Pro Buildings pre-installed. This provides highly reliable, deep-learning-based detection and tracking of persons and vehicles. It is extremely resistant to false triggers caused by challenging outdoor environments—such as rain, snow, moving trees, and shadows—helping operators focus on real events and act earlier.
Yes, the robust design is rated to IP66, NEMA 4X, and IK10 standards. This safeguards the camera against rain, dust, and vandalism, ensuring reliable operation across a wide ambient temperature range from -40 °C up to 55 °C (-40 °F up to 131 °F).
Data security is prioritized through built-in Secure Element (SE) hardware that provides Trusted Platform Module (TPM) functionality. Together with Public Key Infrastructure (PKI) support and encrypted private keys, it guarantees superior protection against malicious attacks and ensures that all device access and data transport remain highly secure.
The modular structure uses a click-and-rotate mechanism on the mounting plate that requires no hardware to secure the camera to the housing. Additionally, the Automatic Varifocal (AVF) feature allows installers to easily adjust the zoom and focus remotely without opening the camera, minimizing setup time and reducing business disruption.
