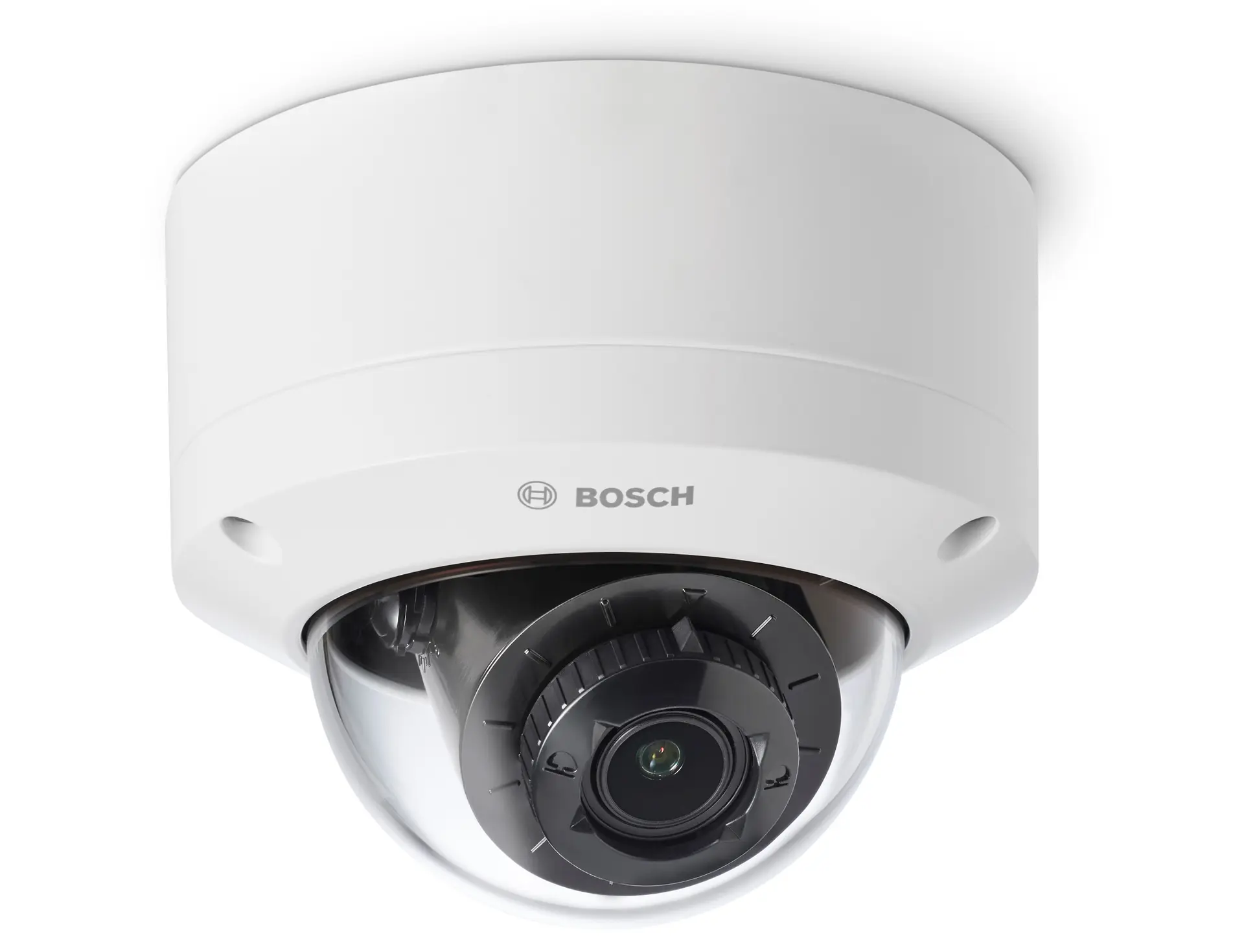

FLEXIDOME indoor 5100i
The FLEXIDOME indoor 5100i family supports continuous visibility and real-time understanding for indoor environments. Combining up to 4K resolution and starlight performance with built-in IVA Pro Buildings, it ensures reliable detection across crowded spaces.
Up to 4K ultra HD for highly detailed image
Starlight camera technology with excellent low-light performance
IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested
High Dynamic Range to see every detail in both bright and dark areas of the scene
Product Overview
Reliable detection in crowded indoor scenes
Built-in IVA Pro Buildings uses deep learning to accurately detect and classify persons and vehicles while ignoring false triggers like shadows and reflections.
Clear visibility in extreme low light
Starlight technology and High Dynamic Range ensure critical details are captured clearly in both bright areas and near darkness.
Simplified installation without specialized hardware
A modular click-and-rotate design and automatic varifocal adjustments allow installers to deploy and focus the camera quickly.
Trusted data security and cyber resilience
A built-in Secure Element and advanced encryption safeguard device access and ensure critical video data remains protected from malicious attacks.
Proactive response with two-way audio
External audio support enables operators to communicate directly with individuals in the scene and triggers alerts based on sound detection.
Key Specifications
| Sensor type | 1/2.8 inch CMOS ; 1/2.7-inch CMOS |
| Resolution | 2MP ; 5MP ; 8MP |
| Low light technology | starlight |
| WDR technology | HDR |
| Frame rate (fps) | 1 fps – 60 fps ; 1 fps – 30 fps |
| Lens focal length (mm) | 3.2 – 10.5 mm |
| Horizontal field of view (°) | 105° – 31° (2MP, 8MP) ; 96º - 29º (5MP) |
| Field of view adjustment | Motorized zoom/focus |
| Video compression | H.264 / AVC; H.265 / HEVC; M-JPEG |
| IP rating | IP54 |
| Impact protection | IK10 |
| Operating temperature | -20 °C – 50 °C (-4 °F – 122 °F) |
| Analytics (built-in) | IVA Pro Buildings ; IVA Pro Privacy |
| Analytics (available) | IVA Pro Perimeter ; IVA Pro Traffic ; IVA Pro Appearance ; IVA Pro Personal Protective Equipment ; IVA Pro Visual Gun Detection ; IVA Pro License Plate ; IVA Pro Vehicle Make Model ; IVA Pro Dangerous Good Signs ; Intelligent Audio Analytics |
Frequently Asked Questions
Common questions about the FLEXIDOME indoor 5100i
The camera comes with IVA Pro Buildings pre-installed, bringing highly reliable deep-learning based detection and tracking of persons and vehicles. It is extremely resistant to false triggers caused by challenging environments, such as tree motion in high wind, shadows, or bugs, and requires no calibration, simplifying setup.
High Dynamic Range (HDR) and starlight camera technology deliver exceptional performance in extreme low-light environments. A multiple-exposure process captures details in both bright highlights and dark shadows, ensuring operators can easily distinguish objects and features in the same scene.
Yes, the mechanical design features a click-and-rotate mechanism on the mounting plate that requires no hardware to secure the camera to the housing. Additionally, it supports Power-over-Ethernet (PoE) for single-cable power and network connections, while the Automatic Varifocal (AVF) feature allows installers to adjust the zoom position remotely without opening the camera.
The camera features built-in Secure Element (SE) hardware providing Trusted Platform Module (TPM) functionality to ensure the highest levels of data security. It supports three-level password protection, authenticated secure firmware uploads, and Public Key Infrastructure (PKI) support to guarantee superior protection from malicious attacks.
Yes, it supports two-way audio via an external audio line input and output, allowing operators to communicate directly with visitors or intruders. By using an external microphone, audio detection can also be used to generate alarms, alerting operators quicker so they can act more proactively.
