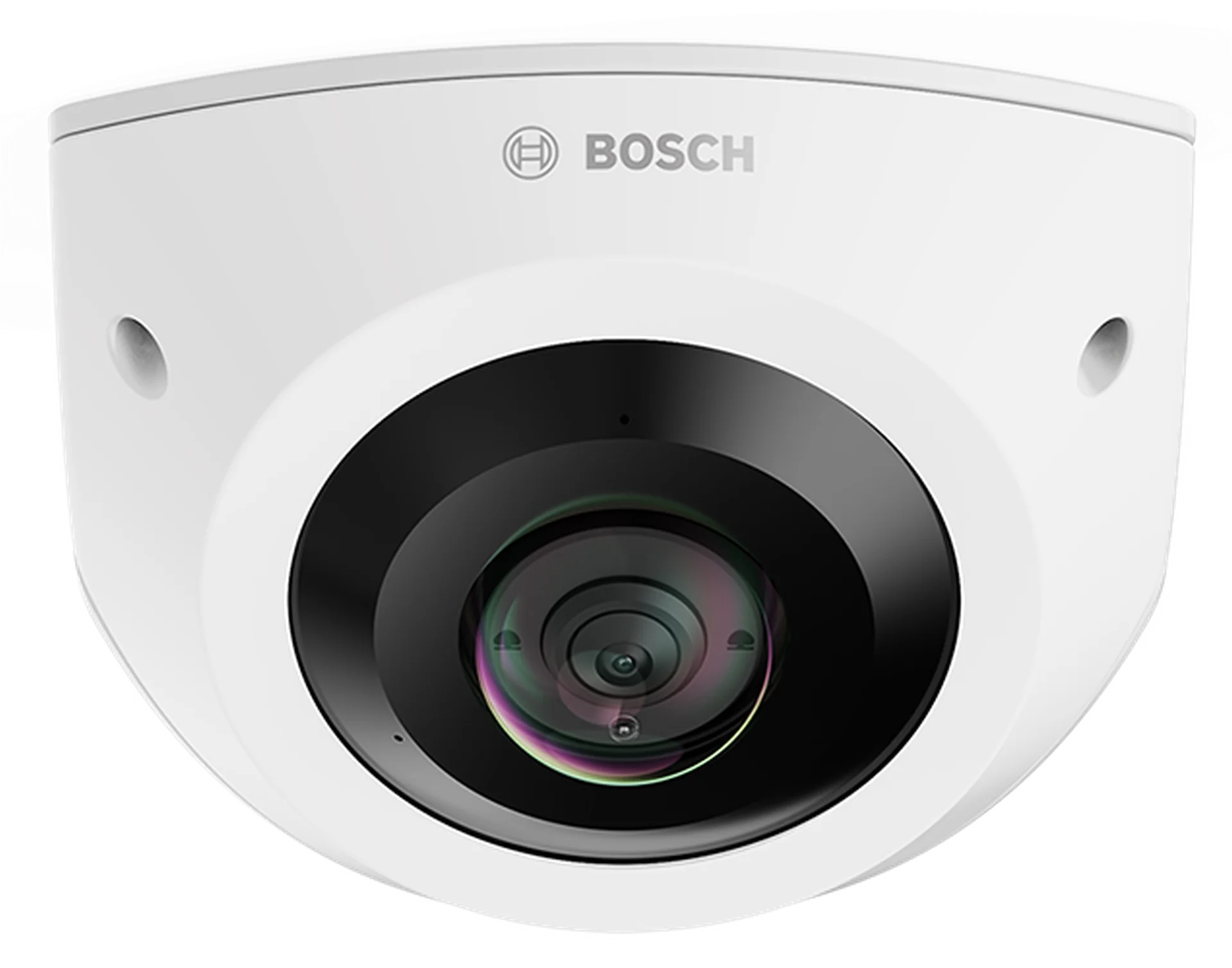

Fixed dome 6MP corner IR
The FLEXIDOME corner 7100i IR is specifically designed for performance in corner-mount installations. This rugged camera with an anti-ligature design features invisible infrared illumination and built-in video and audio analytics.
Commercial Type No: NCE-7703-FK
131° Horizontal and 96° Vertical field of views for complete scene coverage with no blind spots
HDR and intelligent IR illumination with invisible IR (940 nm) for better images in bright and dark scenes
Corner-mount and anti-ligature (no-grip) design for maximum safety with quick and easy installation and set-up
Hard exterior shell to withstand the harshest environments
Built-in Intelligent Video and Audio Analytics to trigger relevant alerts and quickly retrieve data
Product Overview
Ensure visibility in high-risk environments
The specialized corner-mount design delivers complete room coverage, removing blind spots in challenging spaces like healthcare and correctional facilities.
Prevent tampering with a ruggedized design
An anti-ligature housing exceeding IK10 standards withstands severe abuse, ensuring reliable performance where conventional cameras fail.
Capture clear insights in complete darkness
Integrated infrared illumination delivers sharp, forensic-level detail in pitch-dark scenes, enabling continuous awareness regardless of lighting conditions.
Built-in AI based Intelligent Video Analytics
Intelligent Video Analytics enriches full situational awareness and triggers relevant alerts creating a sense of security and comfort for environments that are highly dangerous and stressful.
Key Specifications
| Sensor type | 1/1.8 inch CMOS |
| Resolution | 6 MP |
| Low light technology | starlight |
| WDR technology | HDR |
| Frame rate (fps) | 1 fps – 30 fps |
| Lens focal length (mm) | 2.50 mm |
| Horizontal field of view (°) | 131° |
| Field of view adjustment | Fixed lens (corner mount) |
| Video compression | H.264 / AVC; H.265 / HEVC; M-JPEG |
| IP rating | IP67 |
| Impact protection | IK10+50J (IK11) |
| Operating temperature | -10 °C – 50 °C (-22 °F – 158 °F) |
| IR illumination range | 15m or 50 ft |
| Analytics | IVA Pro Buildings; IVA Pro Perimeter; IVA Pro Privacy |
Frequently Asked Questions
Common questions about the Fixed dome 6MP corner IR
The camera is purpose-built to eliminate blind spots in enclosed spaces. By utilizing a specialized lens with a 131-degree horizontal and 96-degree vertical field of view, it captures the entire room from corner to corner, ensuring continuous visual intelligence and comprehensive situational awareness.
The corner camera IR features a robust anti‑ligature (no‑grip) design combined with a hard exterior shell. This construction helps prevent tampering and misuse, while withstanding severe impacts. It ensures maximum safety for individuals and reliable performance in high‑risk or custodial environments.
The camera delivers reliable performance in complete darkness without requiring visible light, helping to minimize disturbance, distraction, and unnecessary attention. This makes it an ideal solution for healthcare, behavioral health, custodial, and other sensitive environments where discreet monitoring is important.
The camera features built-in Intelligent Video and Audio Analytics that turn visual and acoustic data into real-time understanding. These edge-based analytics can be configured to trigger relevant alerts for specific activities or sounds, allowing security and care teams to move from detection to immediate, confident action.
Not at all. The FLEXIDOME corner 7100i IR is engineered for quick and easy installation and set-up. Its specialized form factor is designed to fit perfectly into room corners, simplifying the deployment process while immediately providing a secure, tamper-resistant fit.
