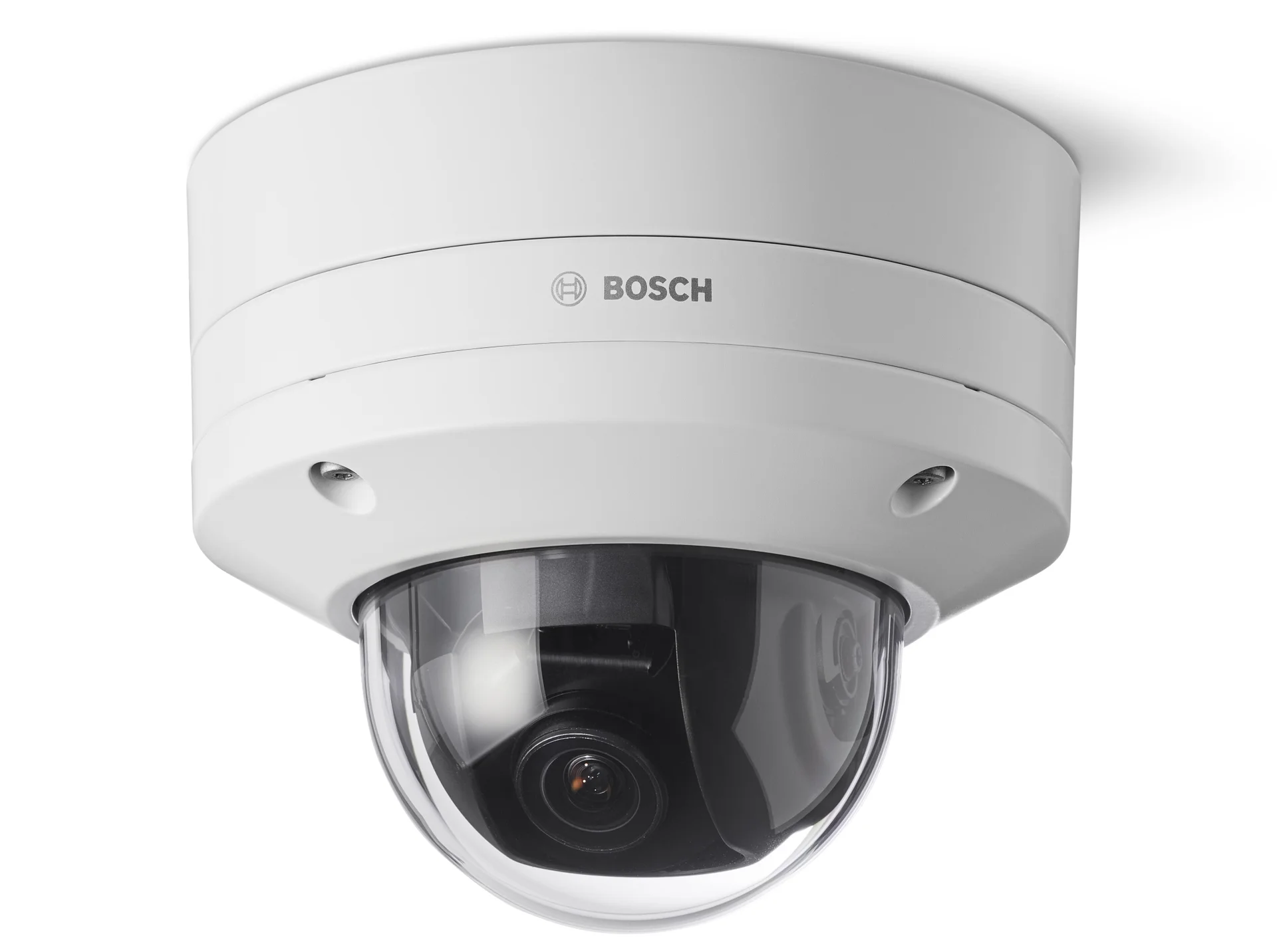

Dome PTRZ 6MP HDR 12-38mm hydro
The FLEXIDOME 8100i family delivers high-performance intelligent surveillance with advanced IVA PRO AI analytics, Starlight technology, HDR imaging, and up to 4K UHD resolution. Motorized PTRZ, remote commissioning, and AI-powered calibration simplify deployment while ensuring reliable detection and superior video performance in challenging environments.
Commercial Type No: NDE-8703-RT-H
Remote configuration and commissioning. Pan, Tilt, Roll and Zoom (PTRZ) remotely to set the camera to the required field of view, without having to touch the camera or lens
Starlight technology with 1/1.8" HD 6MP sensor for next level low-light performance with maximum detail
Hydrophilic bubble for enhanced visibility in wet conditions and reduced maintenance and cleaning
IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile to crowded and congested zones
Electronic image stabilization (EIS) measures the frequency and amplitude of the device’s vibrations to offset their impact on the image
Product Overview
Gain reliable insights in crowded environments
Built-in IVA Pro accurately detects and classifies people and vehicles while filtering out false triggers from weather or moving trees.
Capture crucial details in near darkness
Advanced starlight technology and High Dynamic Range reveal clear, color-accurate forensic evidence in shadows and high-contrast lighting.
Reduce installation time with remote setup
Motorized pan, tilt, roll, and zoom enables fast and precise adjustment on the field of view from remote locations simplifying installation and reducing on-site effort.
Ensure continuous operation in harsh conditions
A rugged housing exceeding IP66/IP67, IK11 and NEMA 4X standards protects the system against severe impacts, heavy rain, dust, and extreme temperature fluctuations.
Maintain steady video on vibrating structures
Electronic image stabilization uses a built-in gyro sensor to correct shaking, delivering smooth and usable footage from bridges or tall poles.
Key Specifications
| Sensor type | 1/1.8 inch CMOS |
| Resolution | 6MP |
| Low light technology | starlight |
| WDR technology | HDR |
| Frame rate (fps) | 1 fps – 30 fps |
| Lens focal length (mm) | 12 mm – 38 mm |
| Horizontal field of view (°) | 36° – 12° |
| Field of view adjustment | Motorized pan, tilt, roll and zoom; Autofocus |
| Video compression | H.264 / AVC; H.265 / HEVC; M-JPEG |
| IP rating | IP66; IP67; IP6K9K |
| Impact protection | IK11 |
| Operating temperature | -50 °C – 60 °C (-58 °F – 140 °F) |
| Analytics (built-in) | IVA Pro Buildings ; IVA Pro Perimeter ; IVA Pro Privacy |
| Analytics (available) | IVA Pro Traffic ; IVA Pro Appearance ; IVA Pro PPE; IVA Pro Visual Gun Detection ; IVA Pro Dangerous Good Signs |
Frequently Asked Questions
Common questions about the Dome PTRZ 6MP HDR 12-38mm hydro
The camera features remote configuration and commissioning capabilities. Using a PC or mobile device with the Project Assistant app, installers can pan, tilt, roll, and zoom (PTRZ) to set the required field of view with a single click. This eliminates the need to physically touch the camera or lens, significantly reducing time spent on ladders and minimizing operational disruption.
The FLEXIDOME 8100i comes pre-assembled with a hydrophilic bubble that prevents water droplets, dirt, and dust from accumulating on its surface, ensuring enhanced visibility in wet conditions and reducing maintenance. Additionally, Electronic Image Stabilization (EIS) offsets the impact of device vibrations, delivering exceptional image clarity and stability even in challenging physical conditions.
The camera combines a 1/1.8-inch 6MP sensor with starlight technology to provide exceptional low-light sensitivity, capturing highly detailed color images even with minimum ambient light. High Dynamic Range (HDR) further enhances visibility by capturing more details in both the highlights and shadows of the same scene, ensuring critical objects and features remain easily distinguishable.
The camera comes pre-installed with IVA Pro Buildings, IVA Pro Perimeter, and IVA Pro Privacy. This highly reliable, deep learning-based analytics suite ensures accurate detection and tracking of persons and vehicles across scenes ranging from sterile zones to crowded areas. It is highly resilient against false triggers caused by environmental conditions like rain, wind, or shadows, providing operators with real-time understanding so they can act with confidence.
Special measures ensure the highest level of security for device access and data transport. The camera features an on-board Trusted Platform Module (TPM) and an Embedded Login Firewall to guarantee superior protection against malicious attacks. Furthermore, network access is protected using HTTPS and secure protocols supporting TLS 1.2 with AES encryption, ensuring that video data remains cyber-resilient from capture to delivery.
