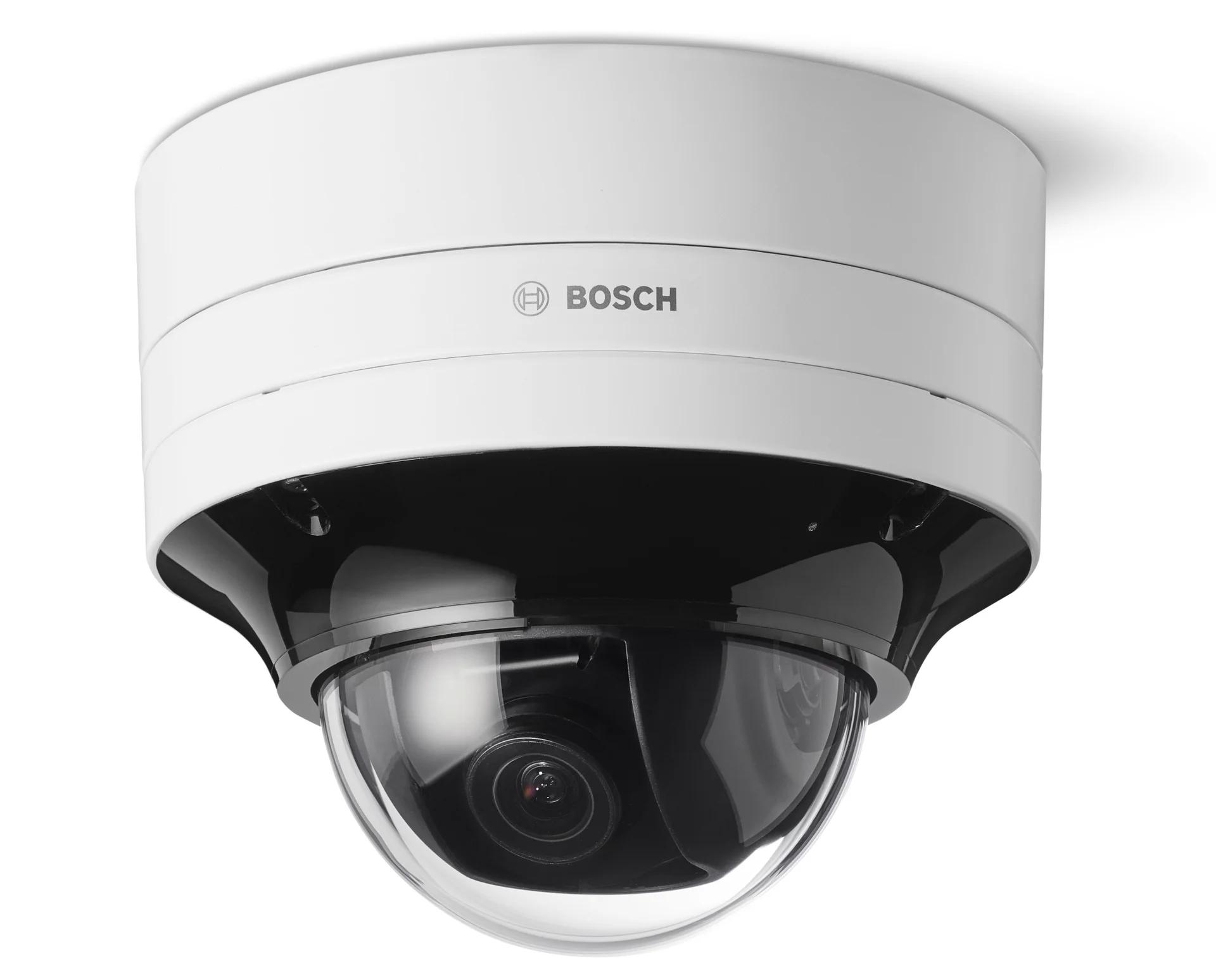

Dome PTRZ 6MP HDR 3.9-10mm IP6K9K
The FLEXIDOME 8100i family delivers high-performance intelligent surveillance with advanced IVA PRO AI analytics, Starlight technology, HDR imaging, and up to 4K UHD resolution. Motorized PTRZ, remote commissioning, and AI-powered calibration simplify deployment while ensuring reliable detection and superior video performance in challenging environments.
Commercial Type No: NDE-8703-R
Remote configuration and commissioning. Pan, Tilt, Roll and Zoom (PTRZ) remotely to set the camera to the required field of view, without having to touch the camera or lens
Starlight technology with 1/1.8" HD 6MP sensor for next level low-light performance with maximum detail
High Dynamic Range (HDR) to see every detail in both bright and dark areas of the scene
IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile to crowded and congested zones
Electronic image stabilization (EIS) measures the frequency and amplitude of the device’s vibrations to offset their impact on the image
Product Overview
Gain reliable insights in crowded environments
Built-in IVA Pro accurately detects and classifies people and vehicles while filtering out false triggers from weather or moving trees.
Capture crucial details in near darkness
Advanced starlight technology and High Dynamic Range reveal clear, color-accurate forensic evidence in shadows and high-contrast lighting.
Reduce installation time with remote setup
Motorized pan, tilt, roll, and zoom enables fast and precise adjustment on the field of view from remote locations simplifying installation and reducing on-site effort.
Ensure continuous operation in harsh conditions
A rugged housing exceeding IP66/IP67, IK11 and NEMA 4X standards protects the system against severe impacts, heavy rain, dust, and extreme temperature fluctuations.
Maintain steady video on vibrating structures
Electronic image stabilization uses a built-in gyro sensor to correct shaking, delivering smooth and usable footage from bridges or tall poles.
Key Specifications
| Sensor type | 1/1.8 inch CMOS |
| Resolution | 6MP |
| Low light technology | starlight |
| WDR technology | HDR |
| Frame rate (fps) | 1 fps – 30 fps |
| Lens focal length (mm) | 3.9 mm – 10 mm |
| Horizontal field of view (°) | 117° – 44° |
| Field of view adjustment | Motorized pan, tilt, roll and zoom; Autofocus |
| Video compression | H.264 / AVC; H.265 / HEVC; M-JPEG |
| IP rating | IP66; IP67; IP6K9K |
| Impact protection | IK11 |
| Operating temperature | -50 °C – 60 °C (-58 °F – 140 °F) |
| Analytics (built-in) | IVA Pro Buildings ; IVA Pro Perimeter ; IVA Pro Privacy |
| Analytics (available) | IVA Pro Traffic ; IVA Pro Appearance ; IVA Pro PPE; IVA Pro Visual Gun Detection ; IVA Pro Dangerous Good Signs |
Frequently Asked Questions
Common questions about the Dome PTRZ 6MP HDR 3.9-10mm IP6K9K
The camera features full remote configuration and commissioning capabilities. Using a PC or mobile device, installers can pan, tilt, roll, and zoom (PTRZ) to set the required field of view with a single click. This eliminates the need to physically touch the camera or lens, significantly reducing setup time, eliminating multiple trips up and down ladders, and minimizing operational disruption.
Engineered for exceptional visibility, the system utilizes starlight technology and a 1/1.8-inch 6MP sensor to deliver next-level low-light performance with maximum detail. Combined with High Dynamic Range (HDR), it captures clear video across varying light levels, ensuring operators can easily distinguish critical features in both bright highlights and dark shadows without motion blur.
The camera comes pre-installed with IVA Pro Buildings, IVA Pro Perimeter, and IVA Pro Privacy. This deep learning-based analytics suite brings highly reliable detection and tracking of persons and vehicles to scenes ranging from sterile zones to crowded areas. It is highly resilient against false triggers caused by environmental conditions like rain, wind, or shadows, delivering accurate, real-time understanding out of the box.
Yes. The extremely rugged design is rated to IP66, IP67, IK11, and IP6K9K standards to withstand rain, dust, and vandalism. Additionally, it features Electronic Image Stabilization (EIS) that uses a built-in gyro sensor to measure the frequency and amplitude of continuous vibrations. This automatically corrects shaky video to deliver a stable, clear image in demanding locations like bridges or traffic poles.
Built to be secure by design, the camera employs strict measures to protect device access and data transport. It features an on-board Trusted Platform Module (TPM), Public Key Infrastructure (PKI) support, and an Embedded Login Firewall to guard against malicious attacks. All network and device access is protected using secure protocols, supporting state-of-the-art TLS 1.2 with updated cipher suites and AES 256-bit encryption.
