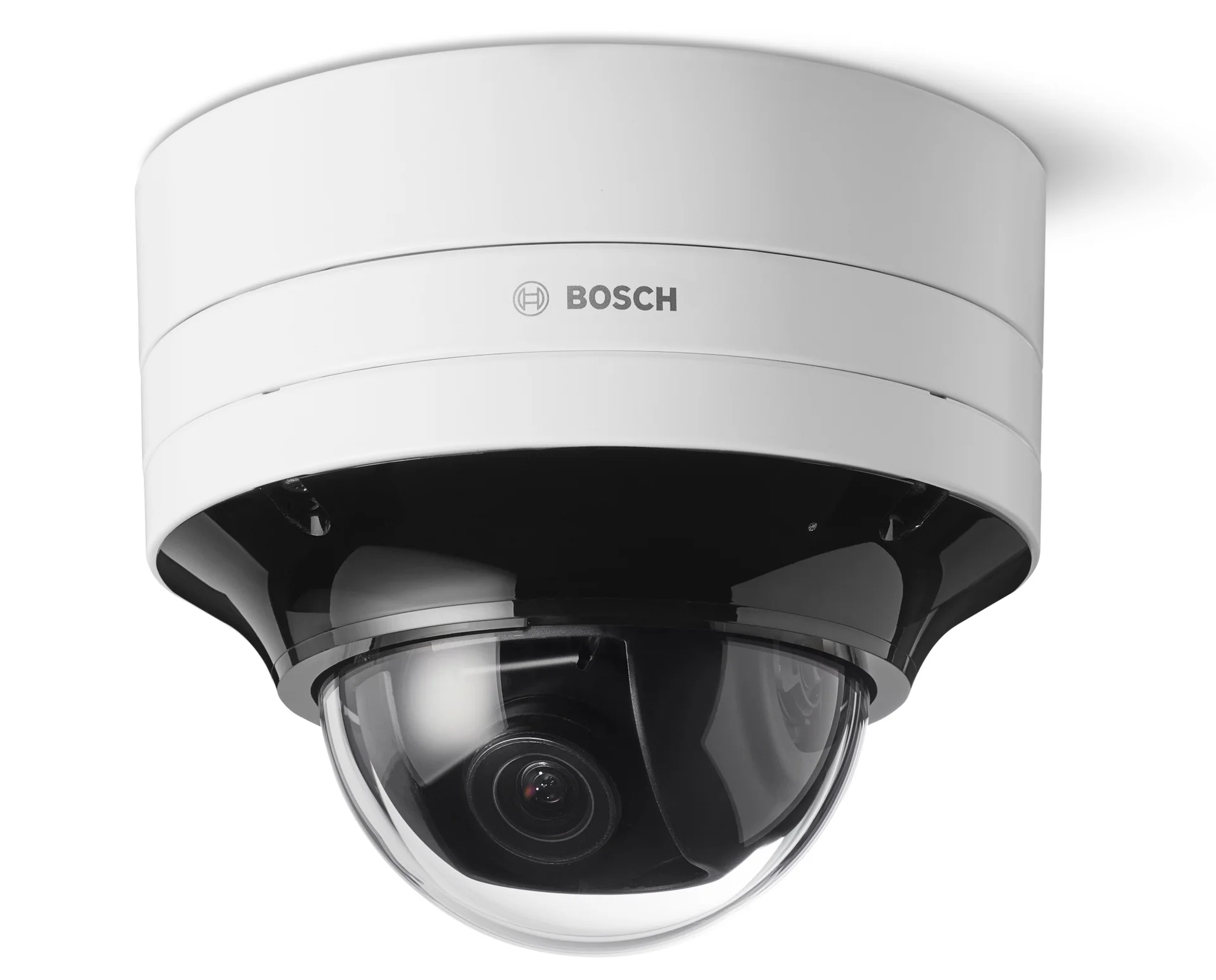

FLEXIDOME 8100i IR — X series
The FLEXIDOME 8100i IR – X series delivers high performance surveillance with Starlight X imaging, HDR X, and integrated IR illumination for clear, detailed video in low light and no light environments. With built-in IVA Pro analytics, electronic image stabilization, and remote PTRZ, it enables precise setup and reliable detection from mission critical applications.
Remote configuration and commissioning. Pan, Tilt, Roll and Zoom (PTRZ) remotely to set the camera to the required field of view, without having to touch the camera or lens
Starlight X technology for next level low-light performance with maximum detail
Split IR design with intelligent IR for illumination up to 50m (164ft)
IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile to crowded and congested zones
Electronic image stabilization (EIS) measures the frequency and amplitude of the device’s vibrations to offset their impact on the image
Product Overview
Filter false alarms with precision
Built-in IVA Pro deep-learning analytics reliably detect people and vehicles while ignoring environmental noise, empowering teams to act on genuine threats.
Adjust camera views from anywhere
Remote Pan, Tilt, Roll, and Zoom (PTRZ) capabilities allow teams to configure the exact field of view without ladders or physical intervention.
See clearly in near total darkness
Advanced starlight X technology and intelligent split IR illumination capture crisp, forensic details across challenging and low-light environments.
Maintain steady video during vibrations
Electronic image stabilization offsets environmental vibrations, ensuring operators maintain a smooth, continuous view in harsh infrastructure settings.
Operate reliably in extreme conditions
Engineered exceeding IK10 standards with IP66/IP67 ratings, the rugged housing withstands severe weather, dust, and tampering attempts.
Key Specifications
| Sensor type | 1/1.8 inch CMOS (2MP/4MP) ; 1/1.2 inch CMOS (8MP) |
| Resolution | 2MP ; 4MP ; 8MP |
| Low light technology | starlight X |
| WDR technology | HDR X |
| Frame rate (fps) | 1 – 60 fps (2MP/4MP) ; 1 – 30 fps (8MP) |
| Lens focal length (mm) | 4.4 – 10 mm (2MP/4MP) ; 5.9 – 13 mm (8MP) |
| Horizontal field of view (°) | 110° – 48° |
| Field of view adjustment | Motorized pan, tilt, roll and zoom; Autofocus |
| Video compression | H.264 / AVC; H.265 / HEVC; M-JPEG |
| IP rating | IP66; IP67; IP6K9K |
| Impact protection | IK11 |
| Operating temperature | -50 °C – 60 °C (-58 °F – 140 °F) |
| IR illumination range | 50 m |
| Analytics (built-in) | IVA Pro Buildings ; IVA Pro Perimeter ; IVA Pro Privacy |
| Analytics (available) | IVA Pro Traffic ; IVA Pro Appearance ; IVA Pro Personal Protective Equipment ; IVA Pro Visual Gun Detection ; IVA Pro License Plate ; IVA Pro Vehicle Make Model ; IVA Pro Dangerous Good Signs ; IVA Pro License Plate + Make Model ; Intelligent Audio Analytics |
Frequently Asked Questions
Common questions about the FLEXIDOME 8100i IR — X series
The camera features remote Pan, Tilt, Roll, and Zoom (PTRZ) functionality, allowing installers to set and adjust the field of view wirelessly from a mobile device or PC. This eliminates the need to physically touch the camera or lens, significantly reducing time spent on ladders and minimizing operational disruption during deployment.
The camera comes pre-installed with IVA Pro Buildings, IVA Pro Perimeter, and IVA Pro Privacy. These deep-learning analytics provide highly reliable detection and tracking of persons and vehicles, filtering out environmental triggers like rain, shadows, or wind-induced movement to deliver accurate, real-time insights in both sterile zones and crowded areas.
By combining starlight X and HDR X technologies, the camera captures exceptional detail in extreme low light and high-contrast scenes. This ensures sharp, blur-free video of moving objects, giving security operators the reliable visual evidence needed to understand unfolding situations at any time of day.
Yes, the camera uses Electronic Image Stabilization (EIS) with a built-in gyro sensor to detect continuous vibration. It automatically corrects shaky video on both the vertical and horizontal axes, ensuring operators receive a stable, clear picture even in high-vibration areas like bridges, traffic poles, or industrial sites.
The device is secure by design, featuring an embedded login firewall, an on-board Trusted Platform Module (TPM), and Public Key Infrastructure (PKI) support. It enforces secure channels upon initial setup and uses encrypted protocols, ensuring that video data remains protected from capture to delivery.
In this family
FLEXIDOME 8100i IR — X series
:quality(75))
Dome PTRZ 2MP HDR X 4.4-10mm IR IP6K9K
The FLEXIDOME 8100i IR – X series delivers high performance surveillance with Starlight X imaging, HDR X, and integrated IR illumination for clear, detailed video in low light and no light environments. With built-in IVA Pro analytics, electronic image stabilization, and remote PTRZ, it enables precise setup and reliable detection from mission critical applications.
Dome PTRZ 2MP HDR X 4.4-10mm IR IP6K9K
Dome PTRZ 4MP HDR X 4.4-10mm IR IP6K9K
The FLEXIDOME 8100i IR – X series delivers high performance surveillance with Starlight X imaging, HDR X, and integrated IR illumination for clear, detailed video in low light and no light environments. With built-in IVA Pro analytics, electronic image stabilization, and remote PTRZ, it enables precise setup and reliable detection from mission critical applications.
Dome PTRZ 4MP HDR X 4.4-10mm IR IP6K9K
Dome PTRZ 2MP HDR X 4.4-10mm IR hydro
The FLEXIDOME 8100i IR – X series delivers high performance surveillance with Starlight X imaging, HDR X, and integrated IR illumination for clear, detailed video in low light and no light environments. With built-in IVA Pro analytics, electronic image stabilization, and remote PTRZ, it enables precise setup and reliable detection from mission critical applications.
Dome PTRZ 2MP HDR X 4.4-10mm IR hydro
Dome PTRZ 4MP HDR X 4.4-10mm IR hydro
The FLEXIDOME 8100i IR – X series delivers high performance surveillance with Starlight X imaging, HDR X, and integrated IR illumination for clear, detailed video in low light and no light environments. With built-in IVA Pro analytics, electronic image stabilization, and remote PTRZ, it enables precise setup and reliable detection from mission critical applications.
Dome PTRZ 4MP HDR X 4.4-10mm IR hydro
Dome PTRZ 8MP HDR X 5.9-13mm IR IP6K9K
The FLEXIDOME 8100i IR – X series delivers high performance surveillance with Starlight X imaging, HDR X, and integrated IR illumination for clear, detailed video in low light and no light environments. With built-in IVA Pro analytics, electronic image stabilization, and remote PTRZ, it enables precise setup and reliable detection from mission critical applications.
Dome PTRZ 8MP HDR X 5.9-13mm IR IP6K9K
Dome PTRZ 8MP HDR X 5.9-13mm IR hydro
The FLEXIDOME 8100i IR – X series delivers high performance surveillance with Starlight X imaging, HDR X, and integrated IR illumination for clear, detailed video in low light and no light environments. With built-in IVA Pro analytics, electronic image stabilization, and remote PTRZ, it enables precise setup and reliable detection from mission critical applications.
Dome PTRZ 8MP HDR X 5.9-13mm IR hydro
