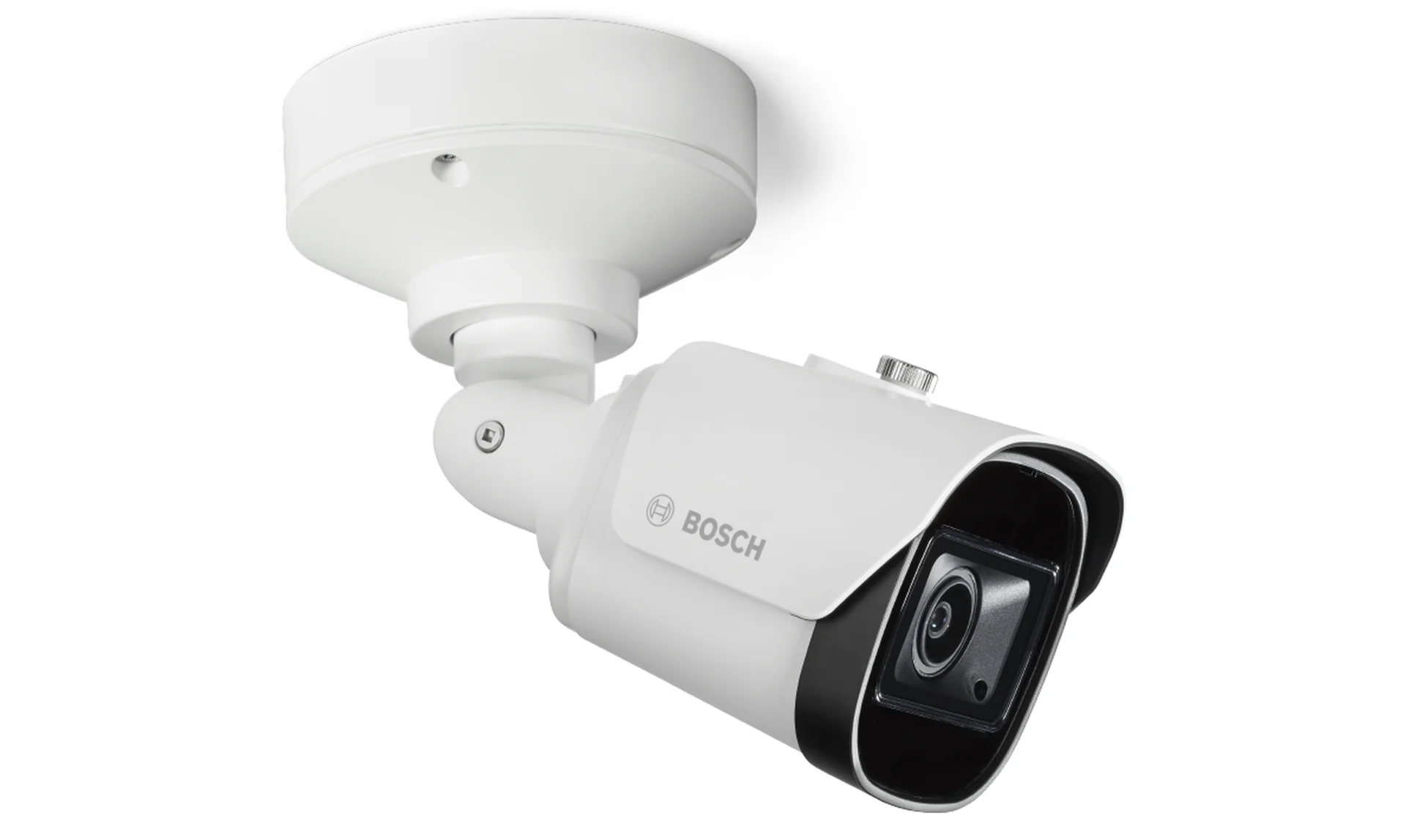

Bullet 2MP 3.3-10.2mm IP66 IK10 IR
The DINION 3100i IR family delivers reliable outdoor visibility and intelligent detection for everyday security needs. With built-in analytics and a compact, weather-resistant design, it ensures clear, continuous awareness in challenging environments.
Commercial Type No: NBE-3702-AL
1080p resolution
IVA Pro Buildings brings reliable deep-learning based detection of persons and vehicles
High Dynamic Range (HDR) to see every detail in both bright and dark areas of the scene
Built-in Secure Element with Trusted Platform Module (TPM) to ensure the highest level of security for device access and data transport
Built-in intelligent IR illuminator with up to 30 m (98 ft) viewing distance
Product Overview
Detect critical events with high accuracy
Built-in IVA Pro Buildings accurately classifies people and vehicles while filtering out false triggers from weather and moving shadows.
See every detail in challenging light
High Dynamic Range captures clear, actionable images in scenes with both bright highlights and deep shadows.
Maintain visibility in complete darkness
The intelligent IR illuminator ensures continuous area coverage and clear identification up to 30 meters away when ambient light drops.
Secure data from capture to delivery
A built-in Secure Element and Trusted Platform Module safely store cryptographic keys to protect your network against unauthorized access.
Reduce bandwidth and storage costs easily
Intelligent streaming only encodes relevant scene information, significantly lowering network strain without sacrificing critical video quality.
Key Specifications
| Sensor type | 1/2.8 inch CMOS |
| Resolution | 2MP |
| WDR technology | HDR |
| Frame rate (fps) | 1 fps – 30 fps |
| Lens focal length (mm) | 3.3 mm – 10.2 mm |
| Horizontal field of view (°) | 106° – 31° |
| Video compression | H.264 / AVC; H.265 / HEVC; M-JPEG |
| IP rating | IP66 |
| Impact protection | IK10 |
| Operating temperature | -30 °C – 50 °C (-22 °F – 122 °F) |
| IR illumination range | 30 m |
| Analytics (built-in) | Intelligent Video Analytics Pro: IVA Pro Buildings |
Frequently Asked Questions
Common questions about the Bullet 2MP 3.3-10.2mm IP66 IK10 IR
The camera utilizes High Dynamic Range (HDR) technology based on a multiple-exposure process that captures details in both bright highlights and deep shadows within the same scene. Combined with a built-in intelligent IR illuminator providing up to 30 meters (98 feet) of viewing distance, it ensures operators can easily distinguish objects and features—such as faces with bright backlight—even when ambient lighting is unavailable.
The DINION 3100i IR comes pre-installed with IVA Pro Buildings, which brings reliable deep-learning based detection and tracking of persons and vehicles. It is highly resistant to false triggers caused by challenging environments, such as rain, moving trees, snow, hail, and water reflections. This built-in intelligence ensures teams receive relevant alerts and can perform highly efficient forensic searches without the need for complex calibration.
Special measures have been put in place to ensure the highest level of security for device access and data transport. The camera features a built-in Secure Element (SE) hardware providing Trusted Platform Module (TPM) functionality. This ensures safe storage of all certificates and keys needed for authentication and encryption, guaranteeing superior privacy protection and defense against malicious attacks.
Yes, the camera is built to perform reliably in demanding outdoor environments. Its versatile, compact design features IK10 impact and IP66 ingress protection ratings, ensuring robust protection against both vandalism and severe weather conditions.
Power for the camera can be supplied via a Power-over-Ethernet (PoE) connection, requiring only a single cable to view, power, and control the device. Additionally, intelligent streaming capabilities utilize video analytics to encode only relevant information in the scene, such as motion or detected objects. This approach reduces bandwidth consumption and bit rates by up to 90 percent compared to standard cameras while maintaining high-quality video tailored to the operator's purpose.
